Chapter 9 - Alarms Disabling/Enabling Alarms Globally During Operation
140 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition

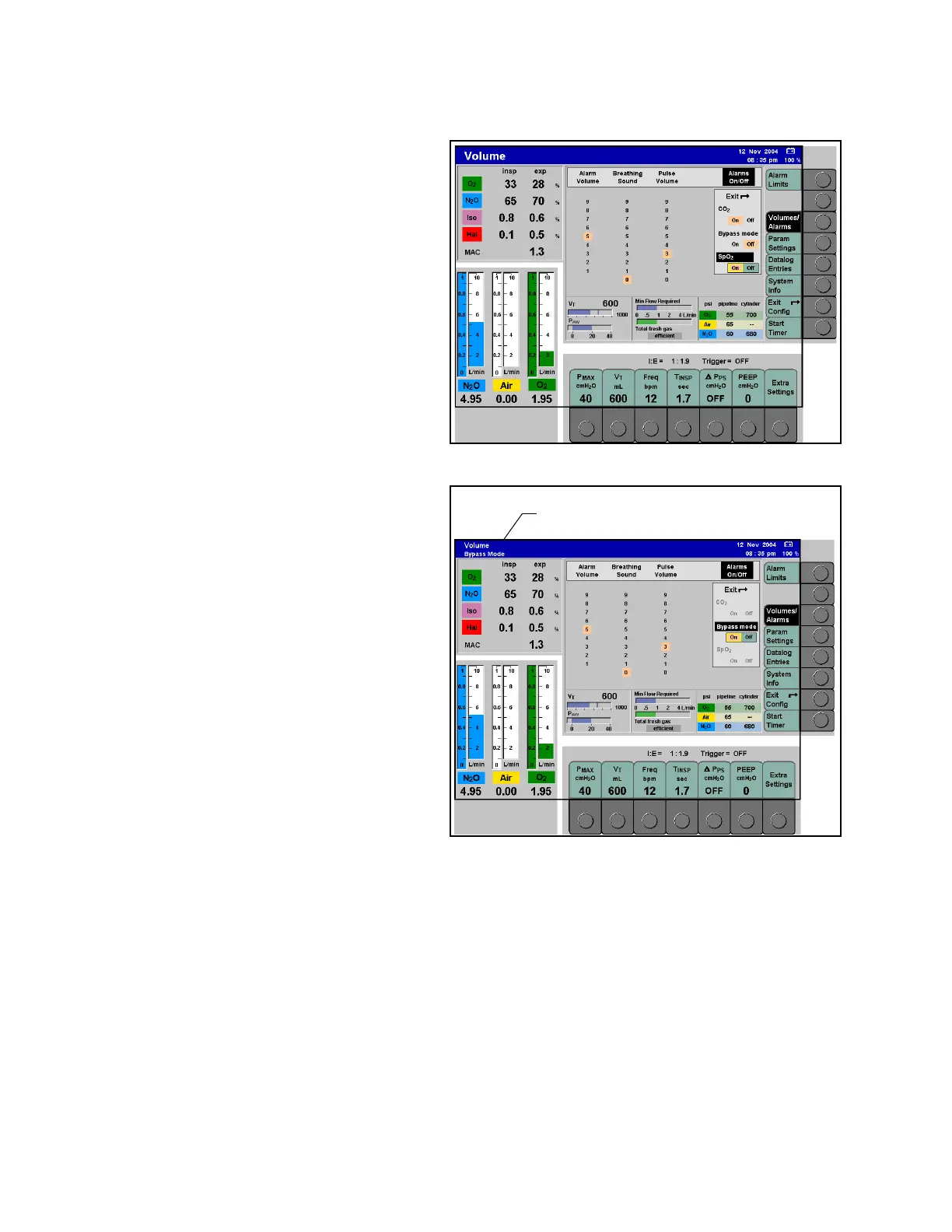

Figure 106. Volumes/Alarms Configuration PageSpO
2
Alarms On/Off (optional)
The SpO
2
alarms can be disabled/enabled while in
any ventilation mode via the configuration screen:
1. Press the >Config< soft key (1 in Figure 105) in
the standard or data screen.
The Volumes/Alarms configuration screen is
displayed (refer to Figure 106).
2. Select and confirm the “Alarms On/Off” column
using the confirm knob.
3. Select and confirm the “SpO
2
” option using the
confirm knob.
4. Select and confirm “On” or “Off” using the
confirm knob.
Bypass Mode
Figure 107. Bypass Mode IndicationThe bypass mode permits patient monitoring without
unnecessary alarms during extra-corporeal
oxygenation of the patient by a heart lung machine.
All gas concentrations are measured independently
of the breathing phase in bypass mode. It can be
used in all active ventilation modes.
When bypass mode is activated, all CO
2
alarms,
pressure apnea alarms, and SpO
2
monitoring alarms
are automatically disabled.
To enable/disable bypass mode:
1. Press the >Config< soft key (1 in Figure 105) in
the standard or data screen.
The Volumes/Alarms configuration screen is
displayed (refer to Figure 107).
2. Select and confirm the “Alarms On/Off” column
using the confirm knob.
3. Select and confirm the “Bypass Mode” option
using the confirm knob.
4. Select and confirm “On” or “Off” using the
confirm knob.
The indication “Bypass Mode” is displayed in the
status field when the mode is active (see Figure 107).
Bypass mode remains activated when changing
ventilation modes; it is deactivated when the
machine is set to Standby.
Deactivating bypass mode immediately enables all
CO
2
and pressure apnea alarms, but SpO
2
measurement and alarms are enabled only when a
pulse signal is detected.
Bypass Mode Indication
