Chapter 7 - Ventilation Pressure-Controlled Ventilation
96 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Synchronized Pressure-Controlled
Ventilation with Pressure Support
(Optional)

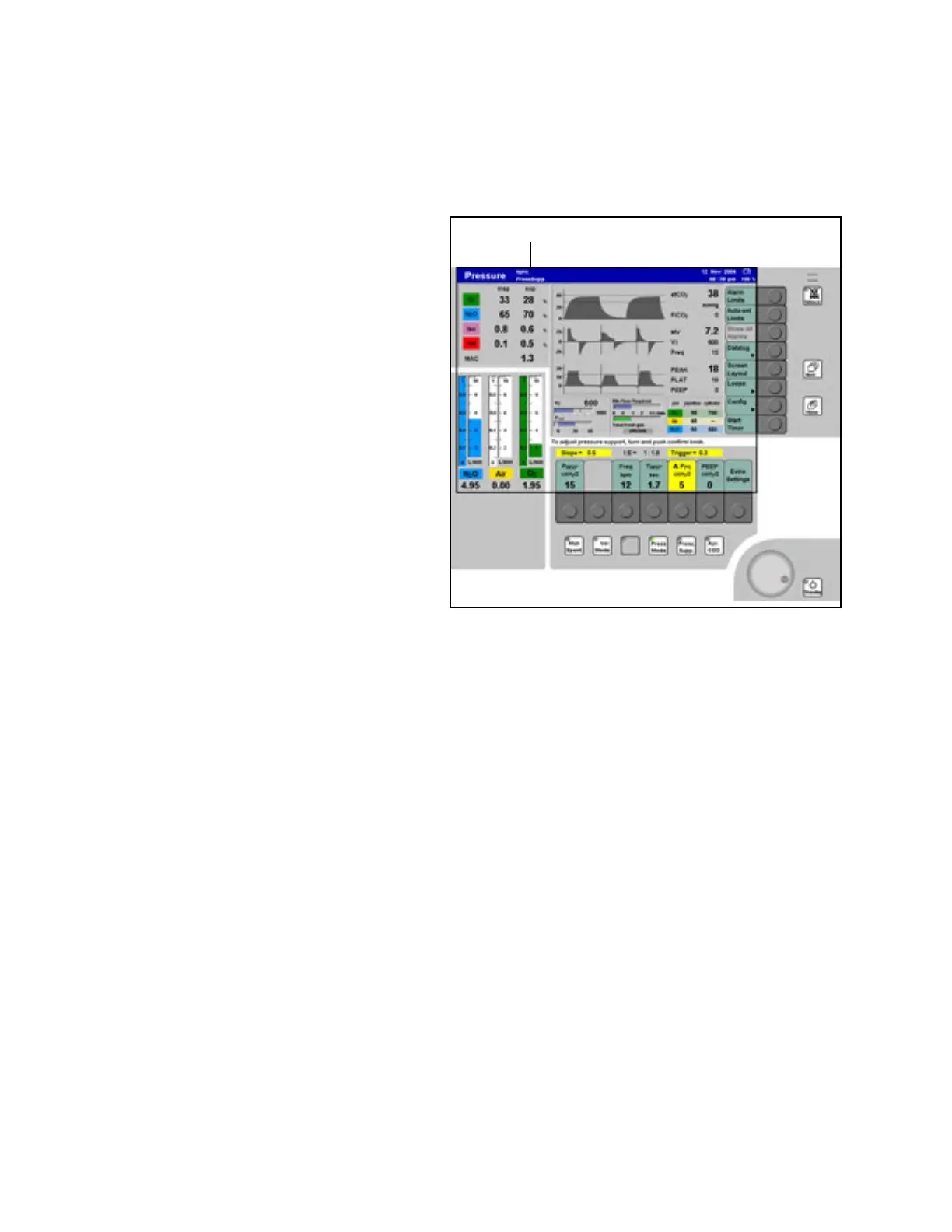

Figure 70. Pressure Mode with Optional Pressure SupportPressure support is activated by entering a value for
the level of support using the >∆P
PS< parameter soft
key:
1. Press the >∆P
PS< soft key on the Pressure mode
screen (1 in Figure 70). The key turns yellow,
and last value that was set for pressure support
is displayed, together with the last value set for
the trigger sensitivity above it (2 in Figure 70).
The “PressSupp” indication in the status field
flashes on and off (3 in Figure 70).
2. Turn the confirm knob to adjust the pressure
support to the desired value, and press the knob
to confirm (4 in Figure 70).
When the value is confirmed, the ”Press Supp”
indication in the status field stops flashing and is
displayed steadily.
If the patient was being ventilated without
synchronization when pressure support is activated,
synchronization will be activated automatically with
the last trigger setting used. The “sync” indication will
appear in the status field (3 in Figure 70).
Synchronization is maintained (trigger remains on at
the set value) when pressure support is deactivated
(set to “OFF”).
Pressure support (∆P
PS) is automatically deactivated
when the trigger is deactivated (set to “OFF”). Trigger
status is shown above the ventilation parameter soft
keys (2 in Figure 70).
