Dräger Apollo Operating Instructions

Displayed Parameters Chapter 8 - Monitoring
Apollo Operator’s Manual 111
Part Number: 90 38 237, 6th edition
Adjusting Display Brightness

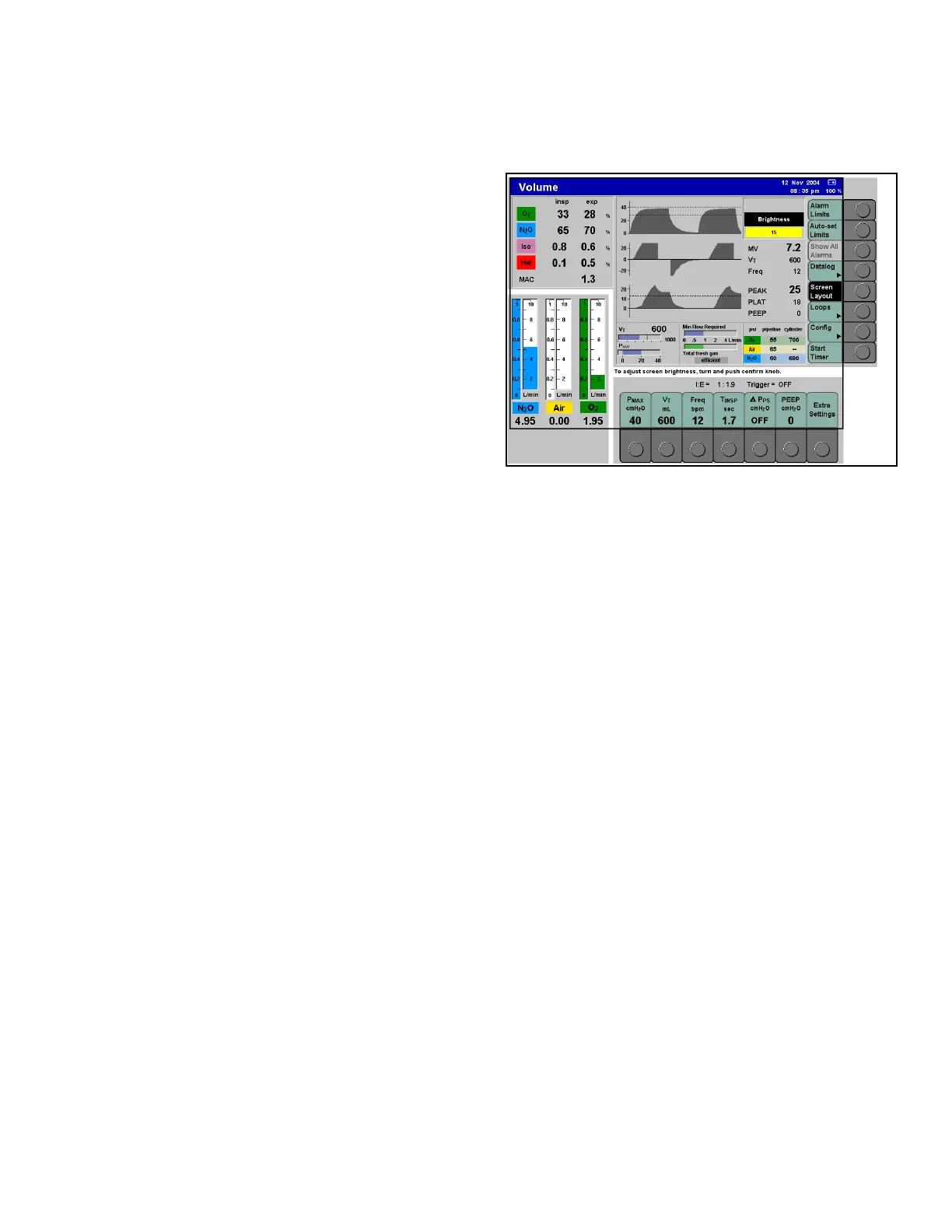

Figure 80. Brightness Adjustment Window
To adjust the brightness level of the display:
1. Press the >Screen Layout< key on the standard
screen (1 in Figure 78). The screen layout
window appears (2 in Figure 78).
2. Turn the confirm knob to select the
>Brightness< option, and press the knob to
confirm. The brightness adjustment window
appears with the current brightness level
highlighted in yellow (1 in Figure 80).
3. Turn the confirm knob to adjust the brightness
level (from 1 to 16), and press the knob to
confirm.
Displayed Parameters
The following parameters are displayed on the
Apollo.
Note: The specific parameters that are displayed
will vary, depending on the selected screen
and user configuration.
CO
2
Concentration
• Curve display
• Numerical display:
- etCO
2
(end-tidal CO
2
concentration)
- FiCO
2
(fractional inspiratory CO
2
concentration)
• Trend curve for CO
2
Note: The CO
2
curve can be displayed in gray,
dark gray, red, yellow, blue, or green. This
setting can be configured by an authorized
DrägerService representative.
O
2
Concentration
• Curve display
• Numerical display:
- FiO
2
(fractional inspiratory O
2
concentration)
- exO
2
(expiratory O
2
concentration)
- ∆O
2
(difference between inspiratory and
expiratory O
2
concentration)
• Trend curve for O
2
1
