The Trend Screen Chapter 8 - Monitoring
Apollo Operator’s Manual 125
Part Number: 90 38 237, 6th edition
becomes magnified to the full width of the
trend display.
After a corresponding period of operation, a new
frame will appear on the trend which can also be
enlarged.
To display the complete trend again:
• Press the >Trend Full View< soft key on the
trend screen (4 in Figure 93). The complete
trend is displayed again.
The >Trend Full View< soft key is not available
if there is less than 30 minutes of trend data.
Deleting Trend Data

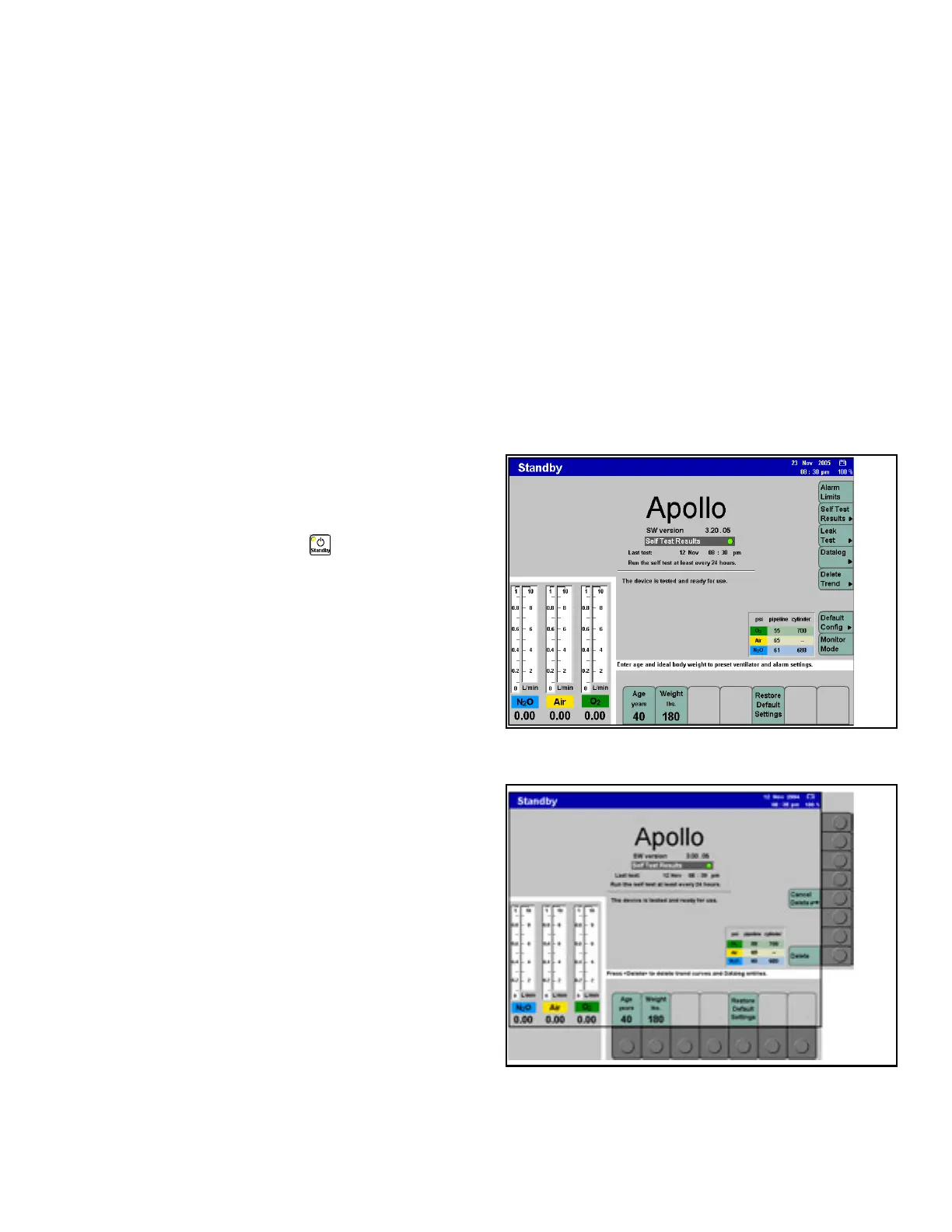

Figure 94. Delete Trend Key on Standby Screen
Trend data can be cleared only when the Apollo is in
Standby. Trend data and datalog data are cleared
simultaneously.
To delete all trend/datalog data:
1. Press the Standby key > < located on the side
of the monitor screen, and push the confirm knob
to confirm.
2. Press the >Delete Trend< soft key on the
Standby screen (1 in Figure 94).
A confirmation screen appears with new soft
keys and the prompt: “Press >Delete< to delete
trend curves and Datalog entries.” (refer to
Figure 95).
3. • Press the >Delete< soft key to delete all
trend and datalog data (1 in Figure 95).
Figure 95. Confirm Cancel Screen in Standbyor
• Press the >Cancel Delete< soft key to
cancel the deletion (2 in Figure 95).
1
1
2
