Dräger Apollo Operating Instructions

Installing the Breathing System and Flow Sensors Chapter 4 - System Setup
Apollo Operator’s Manual 41
Part Number: 90 38 237, 6th edition

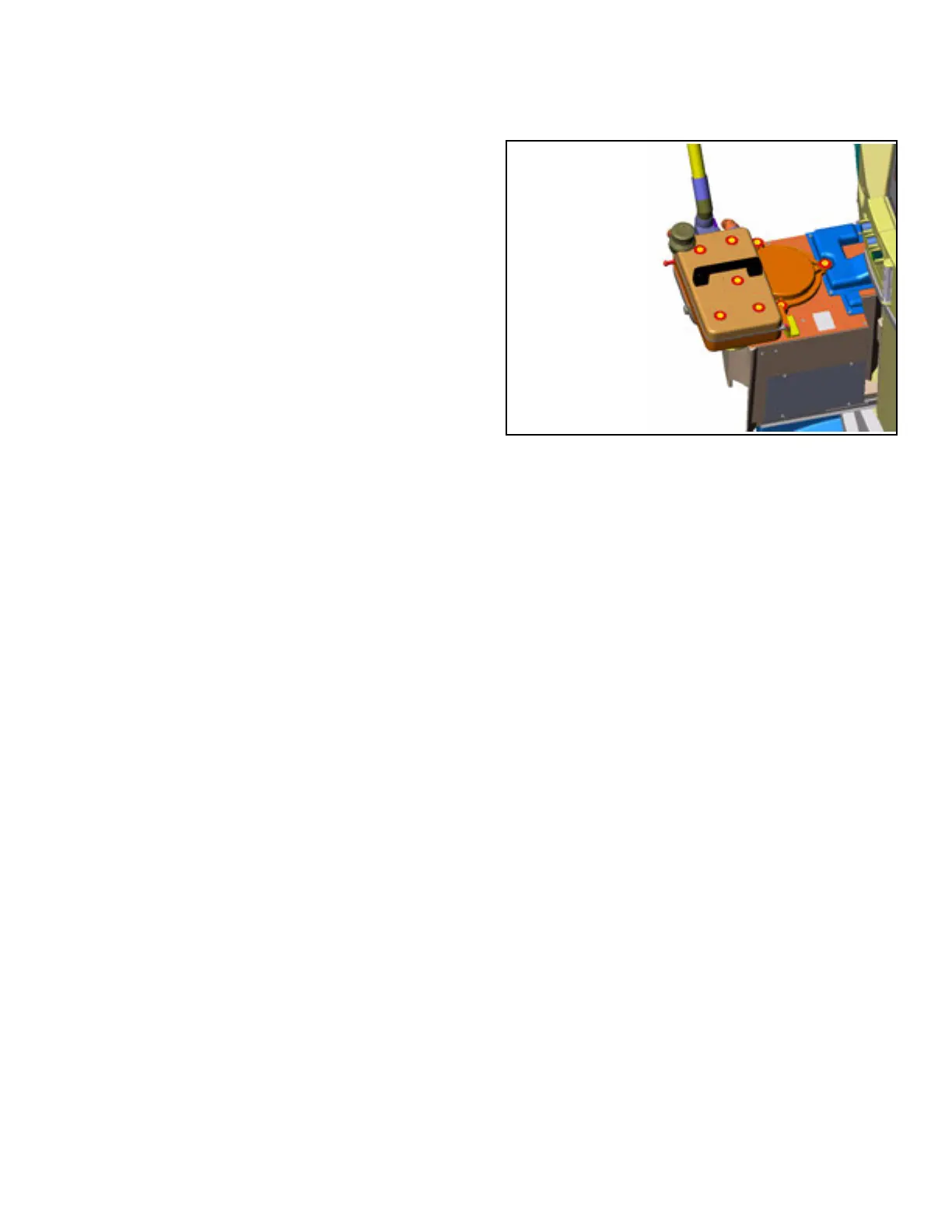

Figure 20. Installing the Breathing System5. Orient the inspiratory and expiratory ports (4 in
Figure 19) so that the key on each port lines up
with the slot. Install the ports and tighten by
turning clockwise.Carefully seat the breathing
system onto the ventilator module, and tighten
the three sealing screws (1 in Figure 20) on the
ventilator cover.
1
1
1
➡
