Instructions for use Primus Infinity Empowered SW 4.5n 65
Assembly and preparation

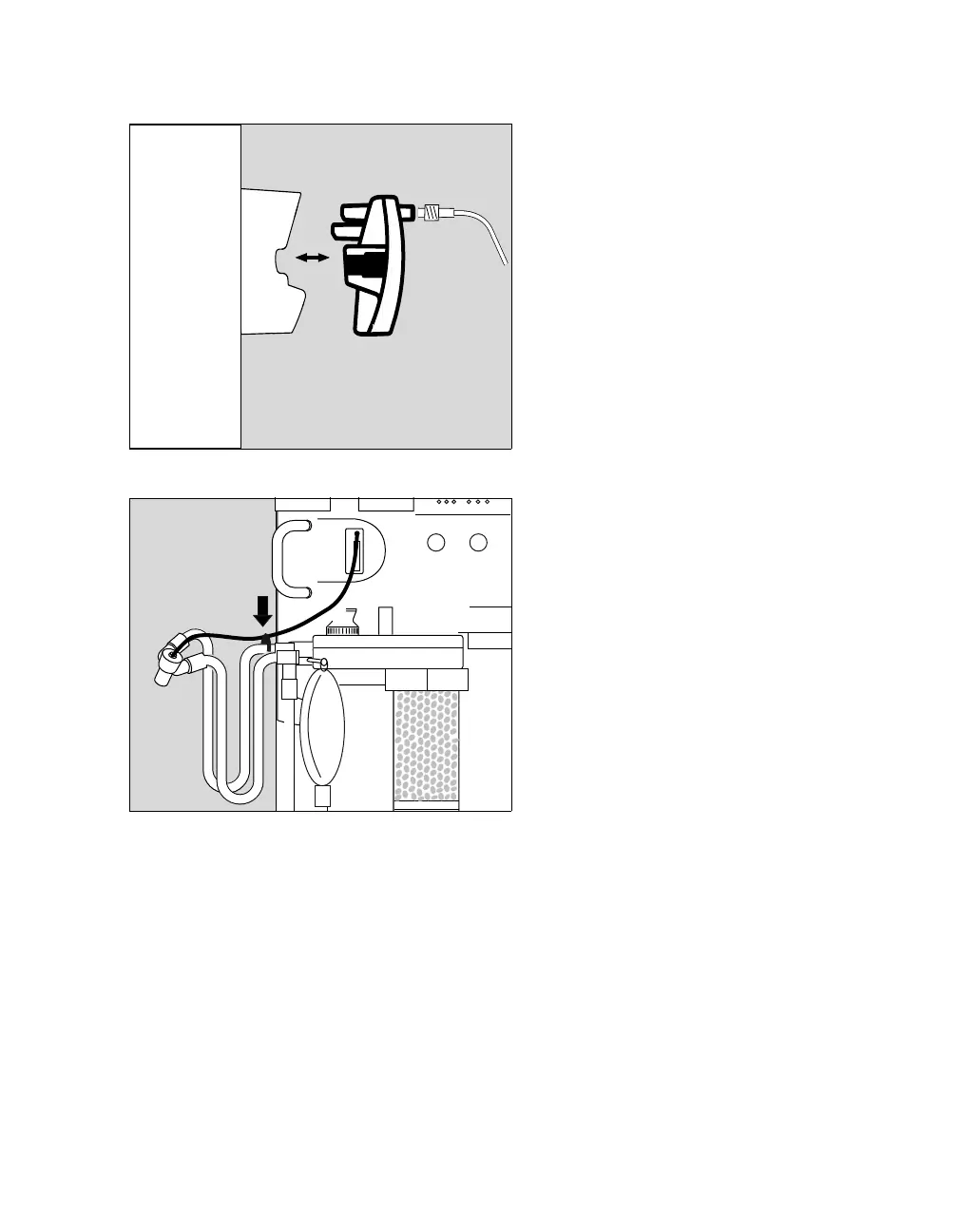

6 Fit the water trap (E).
7 Connect the sample line (F) to the connector on
the Y-piece and to the water trap.
8 Use the clip (G) for the sample line to ensure
the sample line is correctly routed. This clip
should be attached to the expiratory port of the
breathing system.
044063
E
F
F
G
