Assembly and preparation
66
Instructions for use Primus Infinity Empowered SW 4.5n

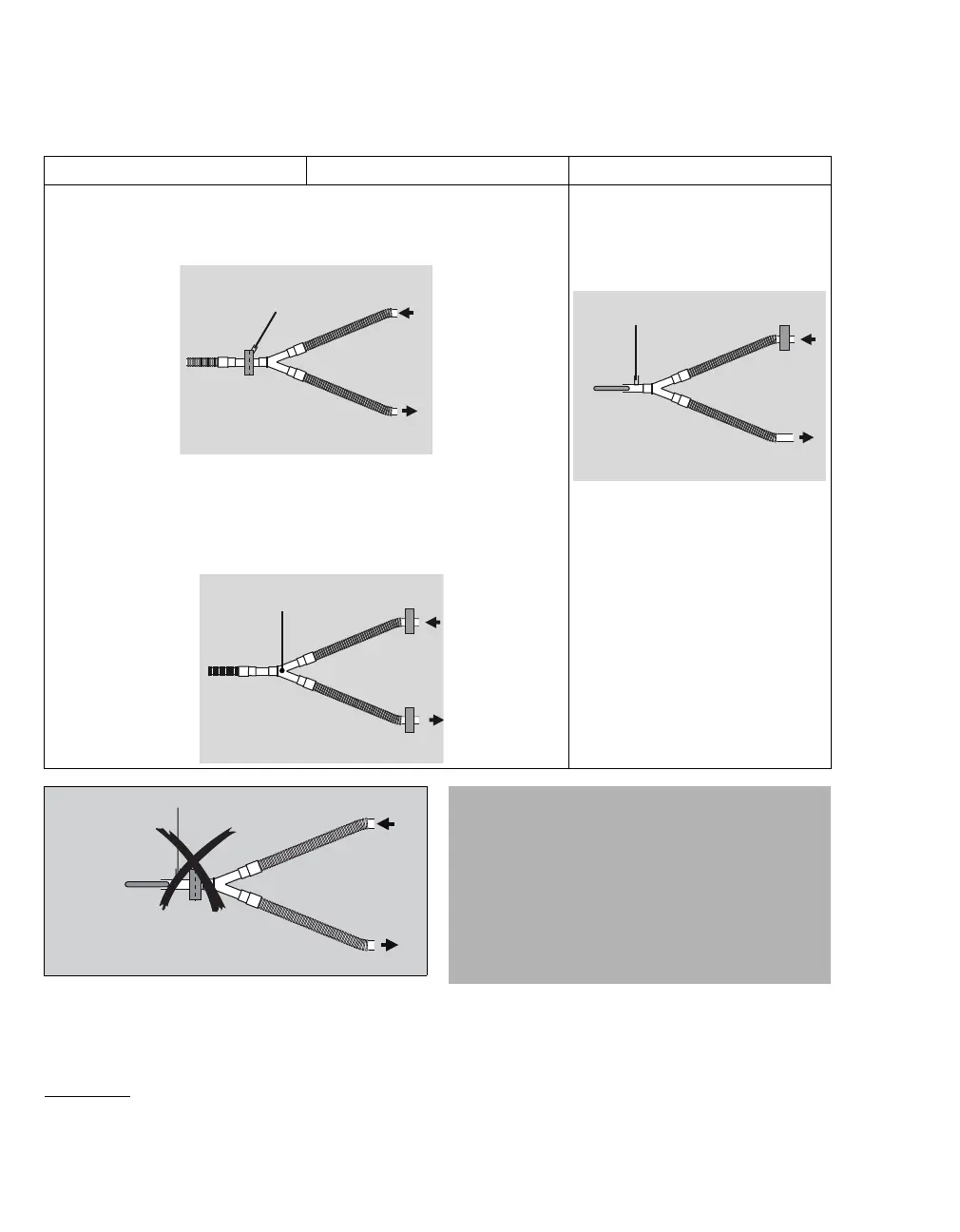

Table with recommended hose configurations*
* Note the resistance of the breathing system and connected accessories.
Adults Pediatric patients Neonates
A filter or an HME filter between the Y-piece and patient, connector
for sample line on the filter or HME filter:
Or
One filter each on the inspiratory port and expiratory port, connector
for sample line on the Y-piece:
One filter on the inspiratory port,
connector for sample line as
close as possible to the patient:
Side connectors for connecting
the sample line support the CO
2
measurement and help to flush
the dead space in the Y-piece
and tube adapter.
insp.
exp.
insp.
exp.
insp.
exp.
104
WARNING
Risk of negative lung pressure
If filters are blocked, the sample gas flow
could cause negative lung pressure.
When ventilating pediatric patients and ne-
onates, do not use HME filters or other filters
at the Y-piece if sample gas is being taken at
the tube adapter.
