Battery charging system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_2.26.1.html[11/12/2015 18:40:20]

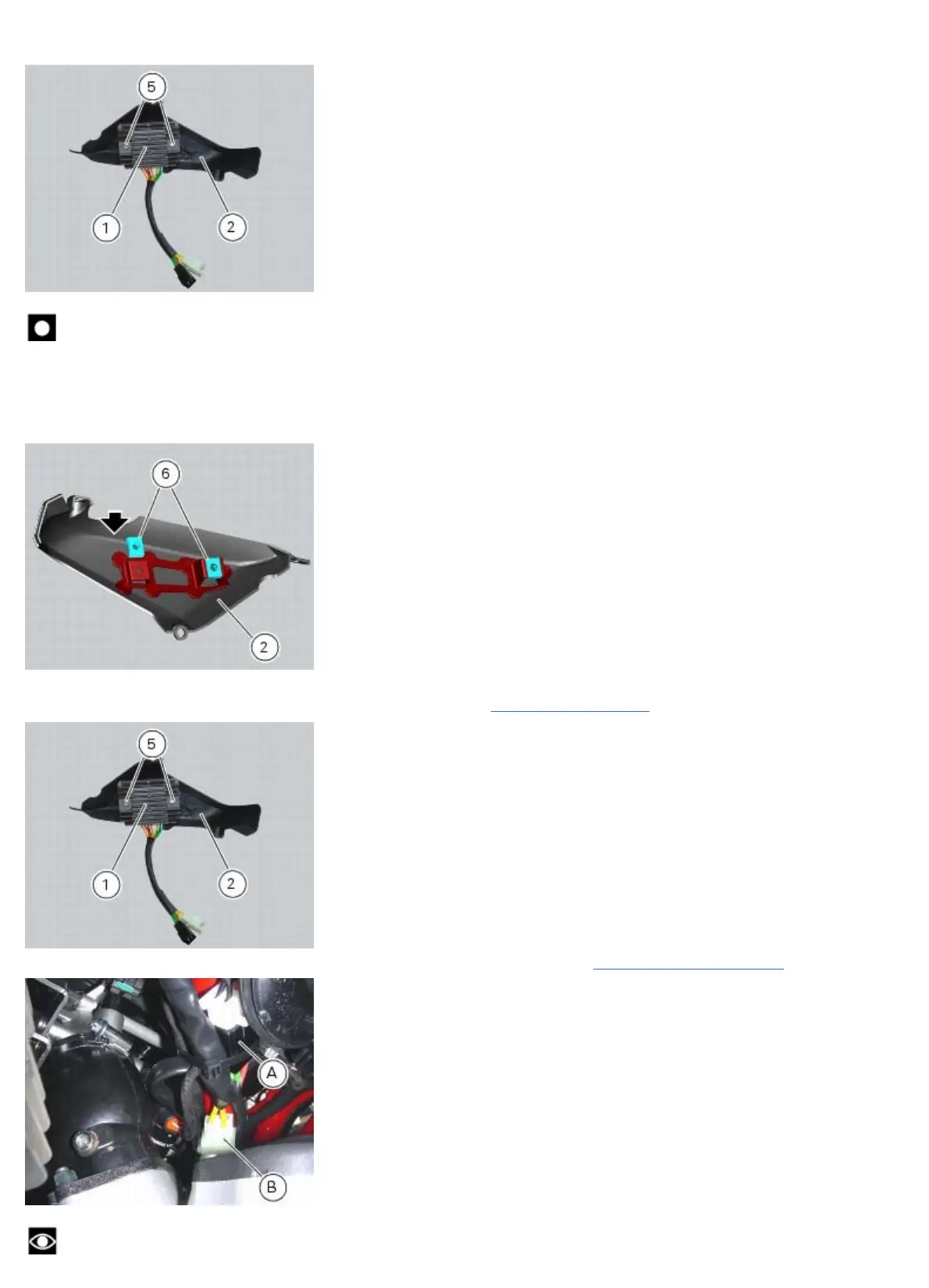

Remove the regulator (1) from the RH air scoop (2) by unscrewing the two screws (5).
Important
Do not disconnect the battery cables when engine is running because this would cause irreparable damage to the
regulator.
Refitting the regulator
Check that the two threaded clips (6) are installed on the RH air scoop (2) and positioning as shown in the figure.
Fix the regulator (1) to the RH air scoop (2) with the two screws (5).
Tighten the screws (5) to a torque of 8 Nm ±10% (Sect. 3 - 3, Frame torque settings).
Connect the generator connector (B) and main wiring harness (A) (Sect. 6 - 1, Routing of wiring on frame).
