Battery charging system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_2.26.1.html[11/12/2015 18:40:20]
In order to correctly route regulator cable, indicated with reference numbers (25) and (26), follow instructions given in
Tables E and H under “Routing of wiring on frame”, Sect. 6 - 1.

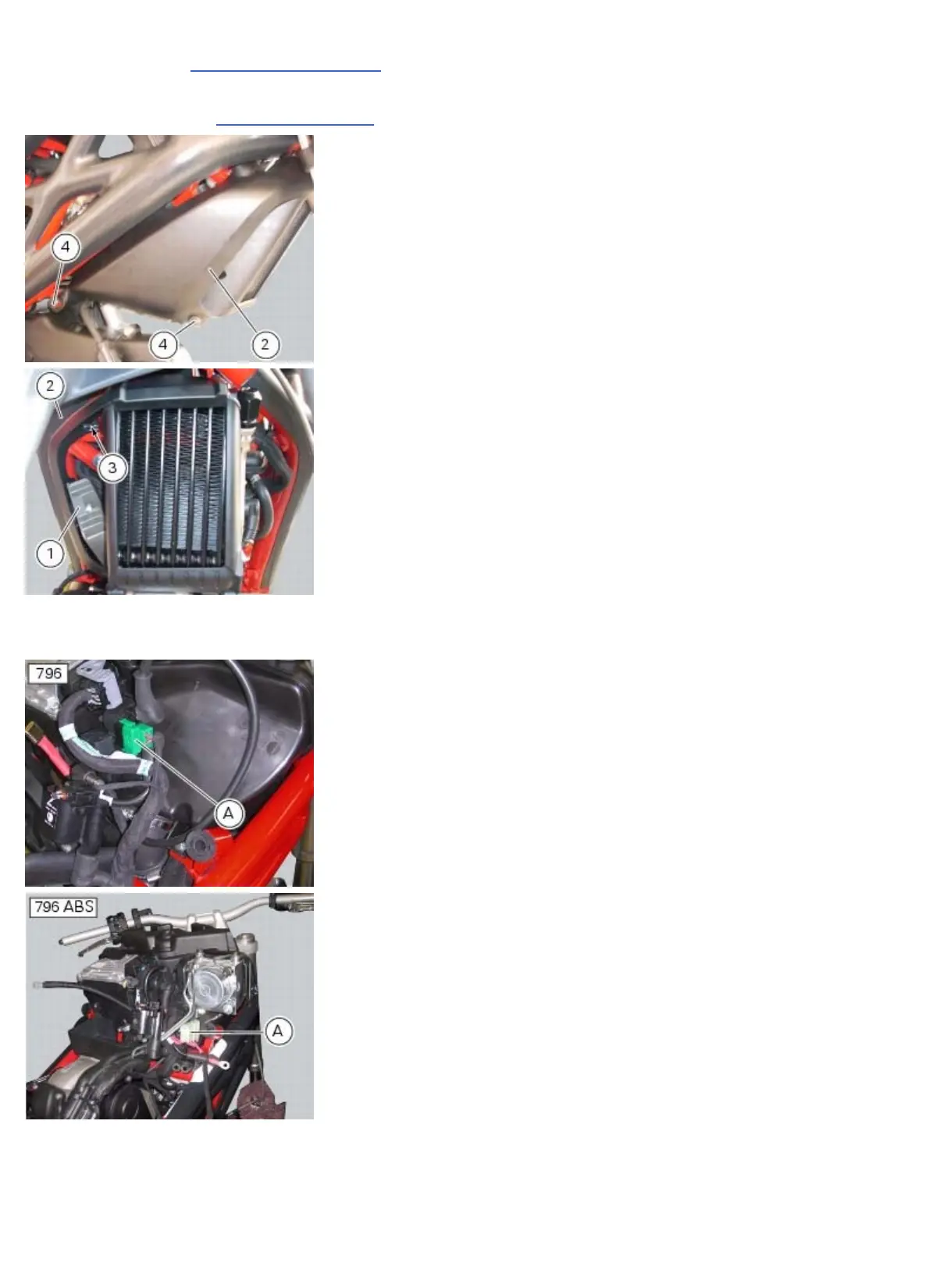

Refit the right-hand conveyor (2) together with regulator (1) to frame, then tighten the screws (3) and (4) to a torque of
5 Nm
±10% (Sect. 3 - 3, Frame torque settings).
Regulator fuse
The 30 A fuse (1) located on the airbox protects the electronic regulator.
A blown fuse can be identified by breakage of the inner filament (B)
To gain access to fuse, proceed as follows: remove the seat, so insert the key in the lock and simultaneously apply
downward pressure in the area of the catch to release the pin.
Pull the seat backwards to release it from the front catches and remove it from the frame.
