System components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_12.35.1.html[11/12/2015 18:40:26]

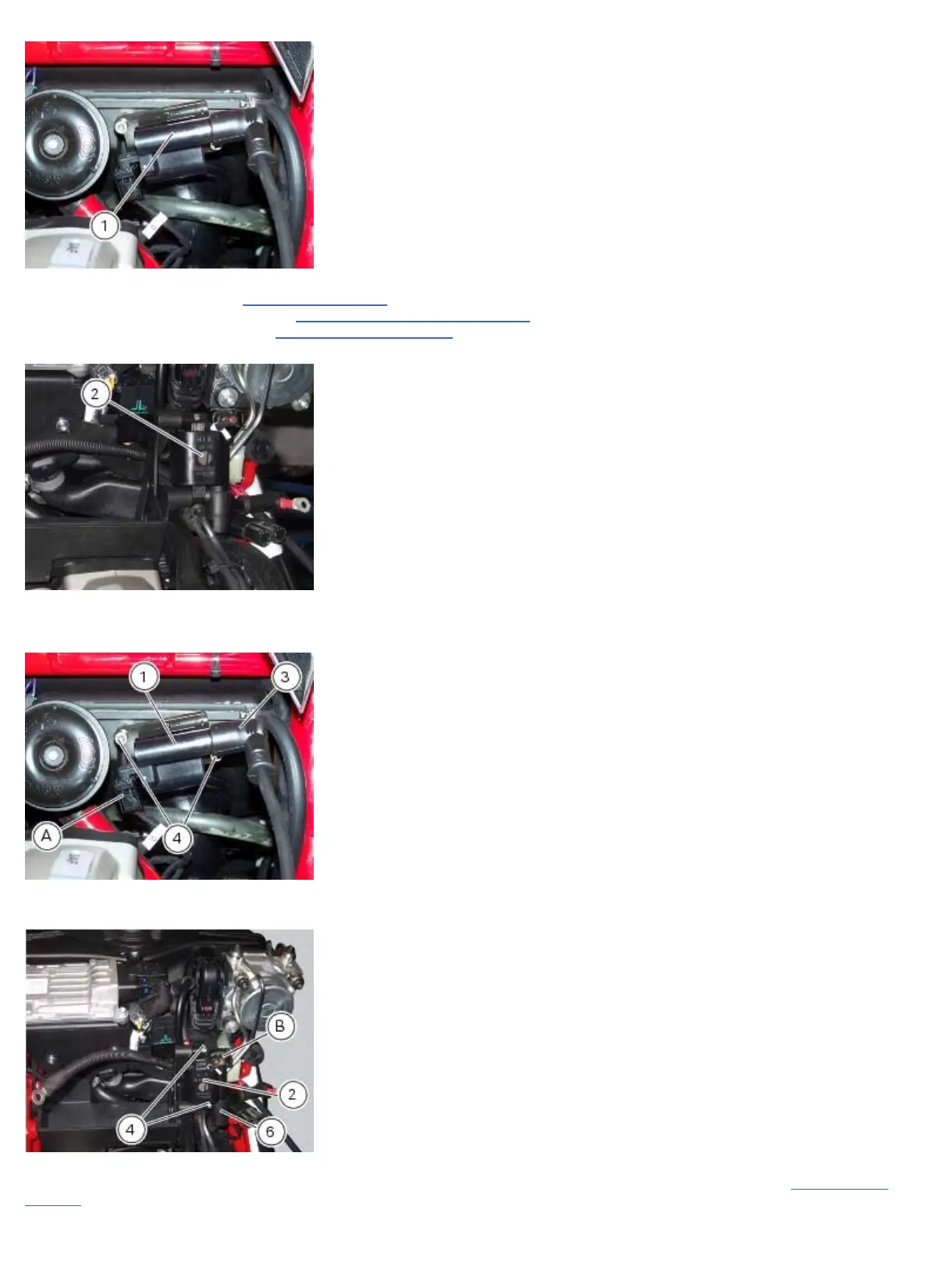

The vertical head coil (2) is on the battery mount, so that to remove it, you shall:
Remove the seat (Sect. 5 - 3,
Removal of the seat).
Remove the tank covers (Sect. 5 - 2,
Removal of the fuel tank fairings).
Remove the fuel tank (Sect. 8 - 2,
Removal of the fuel tank).
To disassemble the coil (1) disconnect the connector (A) and the HT lead (3).
Remove the screws (4), paying attention to the spacers.
Remove the coil (1) from the airbox.
To disassemble the coil (2), disconnect the connector (B) and the HT lead (6), remove the screws (4).
Remove the coil (2).
Refitting is the reverse of removal; ensure to tighten the screws (4) to a torque of 5 Nm ±10 (Sect. 3 - 3,
Frame torque
settings).
