Diagnostic instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_13.36.1.html[11/12/2015 18:40:27]

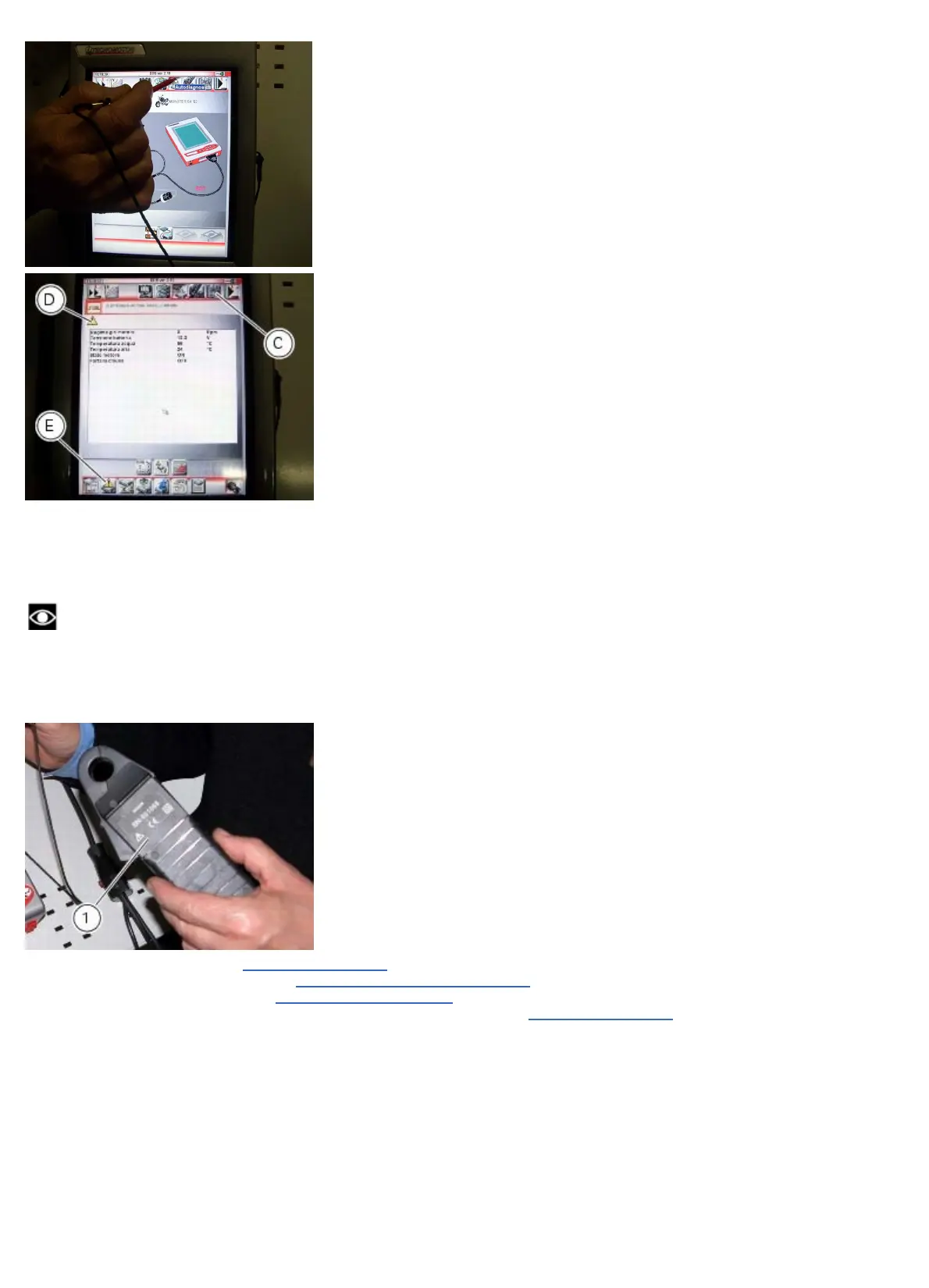

The DDS diagnosis instrument will interrogate the electronic control unit and display the parameters analysed with their
relative values.
Testing the battery charging system
Note
The on-screen icons used during this procedure are explained in a table at the end of this section.
You can determine the engine rpm required for generator to produce just enough current to charge battery, feed the
injection ignition system and all electric items fitted to motorcycle. When applied to a cable, the clamp-type amperemeter
(1) part no. 88765.1126V detects the magnetic field generated by the current passing through that cable.
Remove the seat (Sect. 5 - 3, Removal of the seat).
Remove the tank covers (Sect. 5 - 2,
Removal of the fuel tank fairings).
Remove the fuel tank (Sect. 8 - 2,
Removal of the fuel tank).
Turn on the DDS diagnosis instrument (2) referring to the paragraph “
Tester power supply”.
Connect the power and diagnostics cable (Measurement Module) (3) part no. 97900.0222 to the measurement module
connector (D) on the DDS diagnosis instrument (1).
