Diagnostic instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_13.36.1.html[11/12/2015 18:40:27]

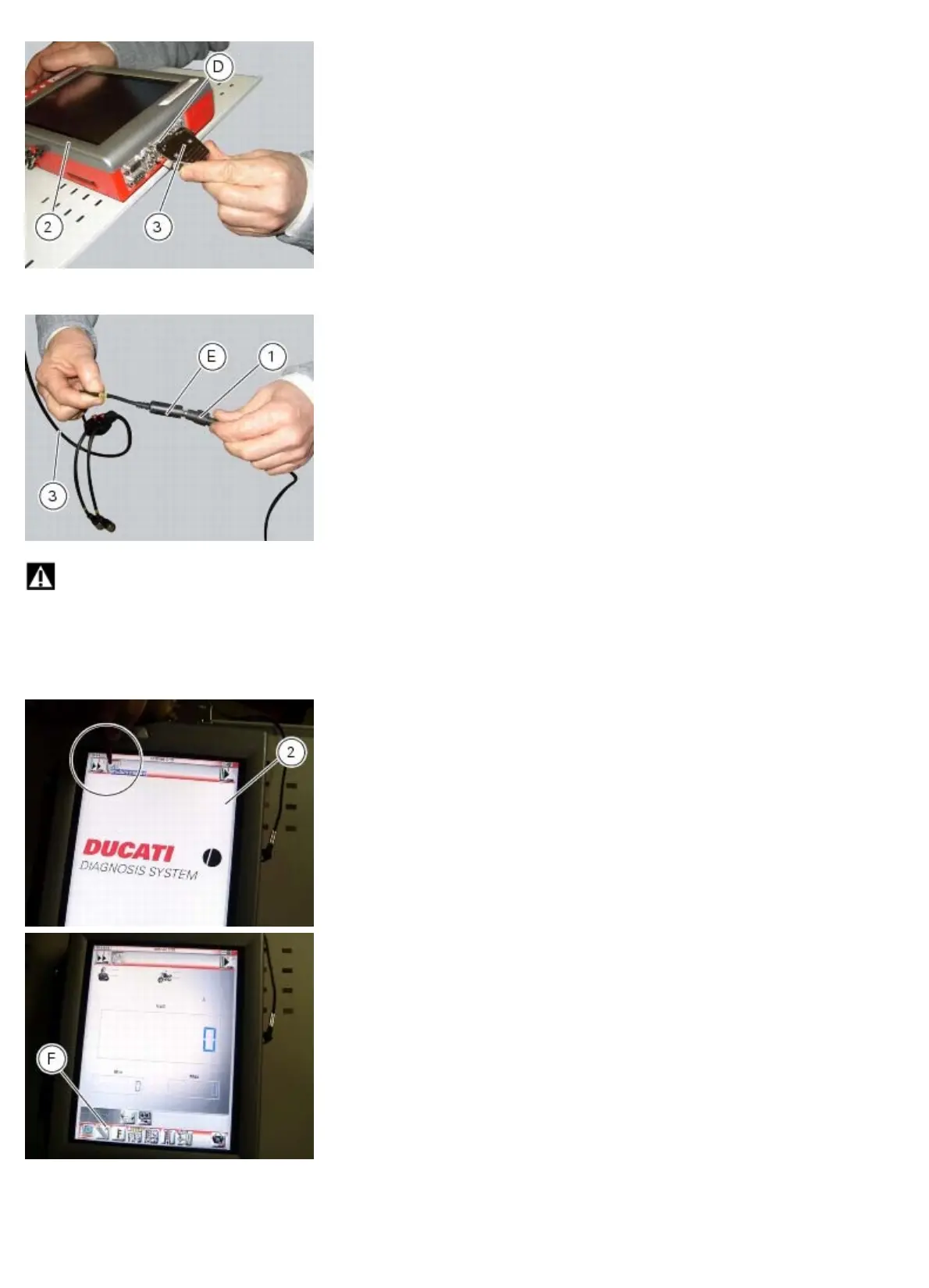

Connect the clamp-type amperemeter (1) to the connector (E) of the power and diagnostics cable (Measurement Module)
(3).
Warning
The clamp-type amperemeter must not be connected to wires through which electrical current is flowing.
Insert the clamp-type amperemeter into the battery positive terminal lead with the arrow on the clamp pointing towards
the battery positive terminal (+).
On the DDS diagnosis instrument (2), select the “Measurement module” function by pressing the corresponding icon; then
press the “Ammeter” icon (F) followed by the “Start” icon.
The socket to which the cable (Measurement Module) (3) is to be connected is indicated on the screen with a capital
letter: A, B or C.
