Crankcase assembly: crankcase halves
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9B.79.1.html[11/12/2015 18:40:53]
Gearbox primary shaft 1.2 1.6
Gearbox secondary shaft 3.15 0.8
Shimming the gearbox selector drum
The following thickness spacers are supplied as spare parts.
Position Clutch side (mm) Chain side (mm)
Gear control drum 1.0 0.9
Reassembly of the crankcase halves
If it was removed, apply the recommended threadlocker to the dowel (24) and tighten it to a torque of 15 Nm (Min. 13
Nm - Max. 17 Nm) (Sect. 3 - 3,
Engine torque settings).

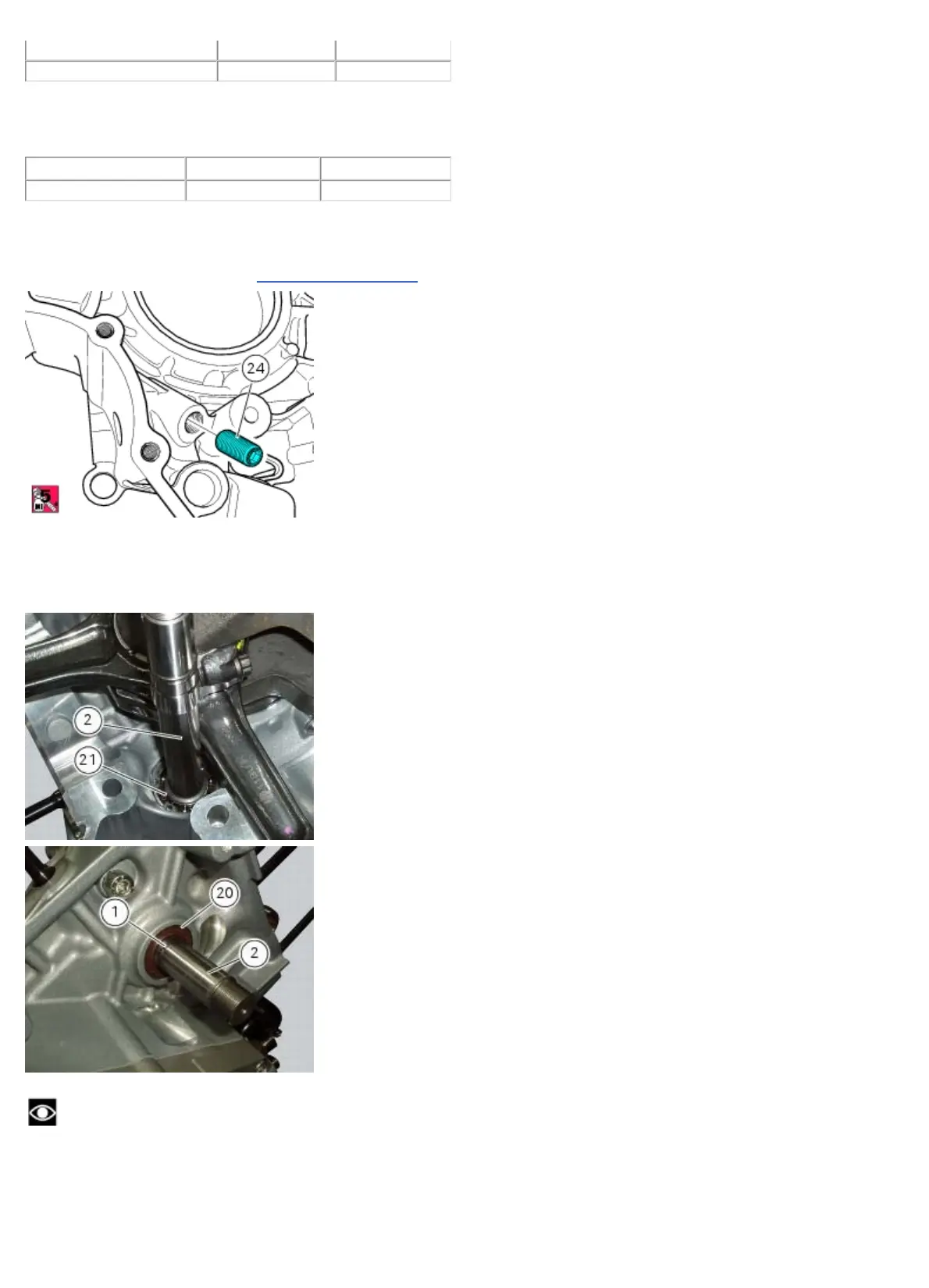

Install the timing belt driveshaft (2) in the roller bearing (21) in the clutch-side crankcase half.
To avoid damaging the oil sealing ring (20) on the timing belt driveshaft, protect the threaded end of the shaft with the
special protective cap 88700.5749. Dampen the oil sealing ring (20) with alcohol and fit it on the timing belt driveshaft,
seating it against the roller bearing (21).
Fit the circlip (1) in the groove on the shaft and remove the protective cap.
Note
When refitting used components, before installing the gearbox assembly in the crankcase half, make sure that the inner
races (A) of the gearbox shaft bearings are fitted into the correct bearings and have not been left on the shafts.
