Crankcase assembly: crankcase halves
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9B.79.1.html[11/12/2015 18:40:53]

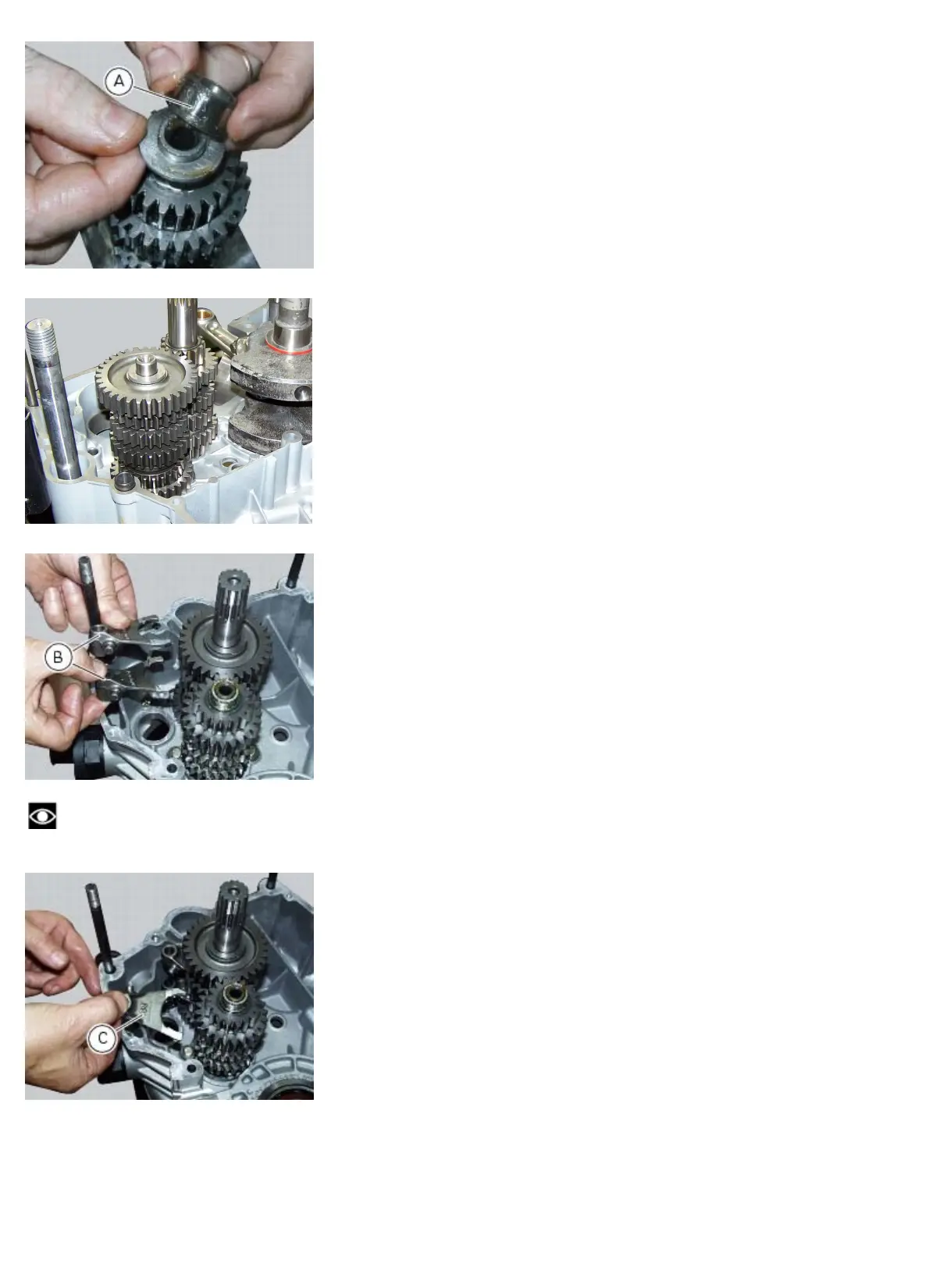

Mesh the gearbox shafts and install them on the clutch-side crankcase half with the calculated shims.
Insert the 1ª- 4ª e 2ª- 3ª speed selector forks (B) in their respective channels in the driven gears of the secondary shaft.
Note
The two selector forks are identical.
Insert the 5ª- 6ª speed selector fork (C) in the driven gear of the primary shaft.
Install the selector drum (D) in the crankcase half with calculated shim thickness.
