Crankcase assembly: crankcase halves
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9B.79.1.html[11/12/2015 18:40:53]

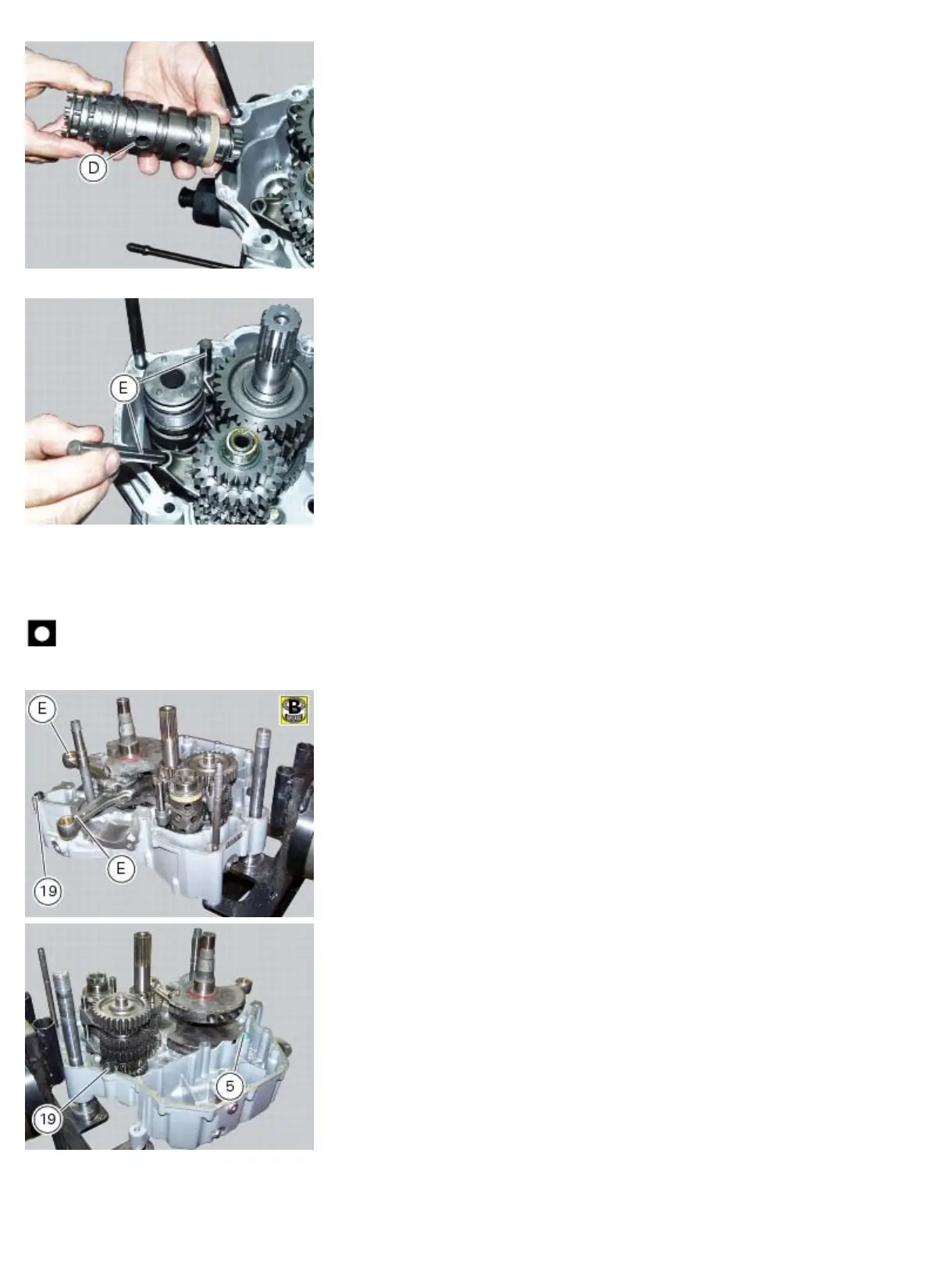

Fit the pins (E) in the previously installed selector forks.
Fit the shimmed crankshaft into the clutch-side crankcase half, positioning the connecting rods (E) in correspondence with
the relative cylinder barrel seats.
Check that the two locating bushes (19) are correctly fitted.
Grease the O-ring (5) to hold it in position and install it on the oil way connecting the two crankcase halves.
Important
Make sure that the connecting rods (E) are correctly positioned in the respective cylinder seats. Incorrect positioning of
the connecting rods at this stage will inevitably lead to the need to re-open the crankcase halves.
Apply a uniform and continuous bead of DUCATI liquid gasket to the mating surfaces of the crankcase halves, going
around all the holes as shown in the figure.
