Duplo Duprinter DP-43S User Manual

116
c Paper Feed Section
chap.2

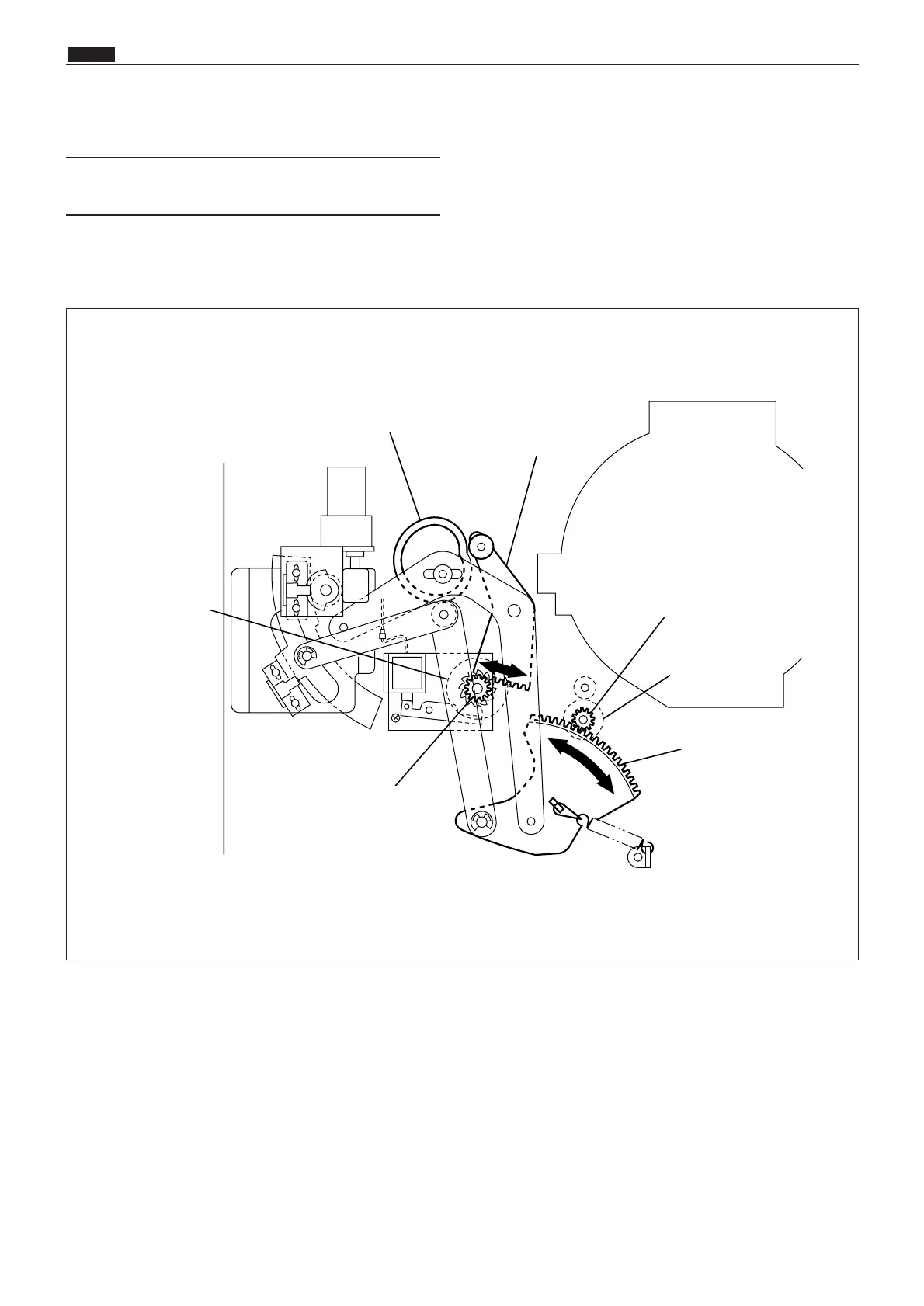

When the main motor turns, the paper feed cam rotates, causing the paper feed segment and timing segment
to execute the reciprocating motion shown below, which turns the pinion gear.
2. Operation
Paper feed cam
Pinion gear
Timing roller
Paper feed segment
Timing segment
Pinion gear
Paper feed roller
(1) Rotation of the Paper Feed Roller and
Timing Roller
43SH0202
