195
n Paper Ejection Section
chap.3

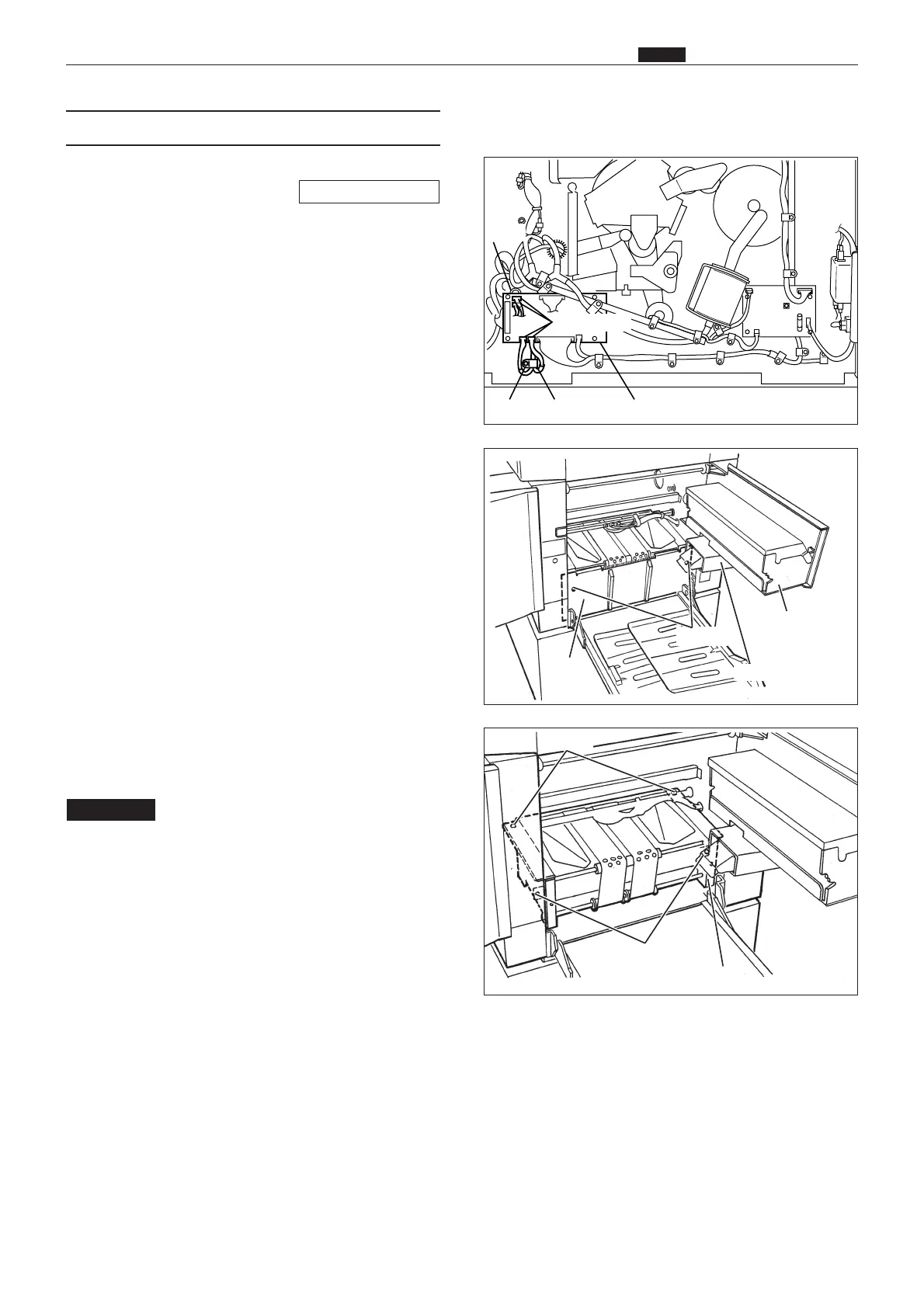

(2) Removing the Paper Ejection Fan Unit
1) Remove the rear cover.
2) Remove the cord band, and remove the 4 connec-
tors.
3) Remove the bush.
4) Open the front cover, and remove the drum.
5) Open the master ejection box, and top fan unit.
6) Remove the 2 screws from the cover, and remove
the cover.
7) Remove the 4 screws from the paper ejection fan
unit, and remove the unit.
: Take care not to scratch the encoder
unit on the fan unit's right side.
IMPORTANT
Bush
Screw
Cord band
Connectors
Drive PCB unit
Cover
Screws
Fan unit
\See page 169
Master
ejection box
Top fan unit
63S00359
63S00360
63S00372
Screws
Screws
To Next Page
