205
m Print Tray Section
chap.3
: Do not foget to adjust the rail space
after the rail is installed.
(5)

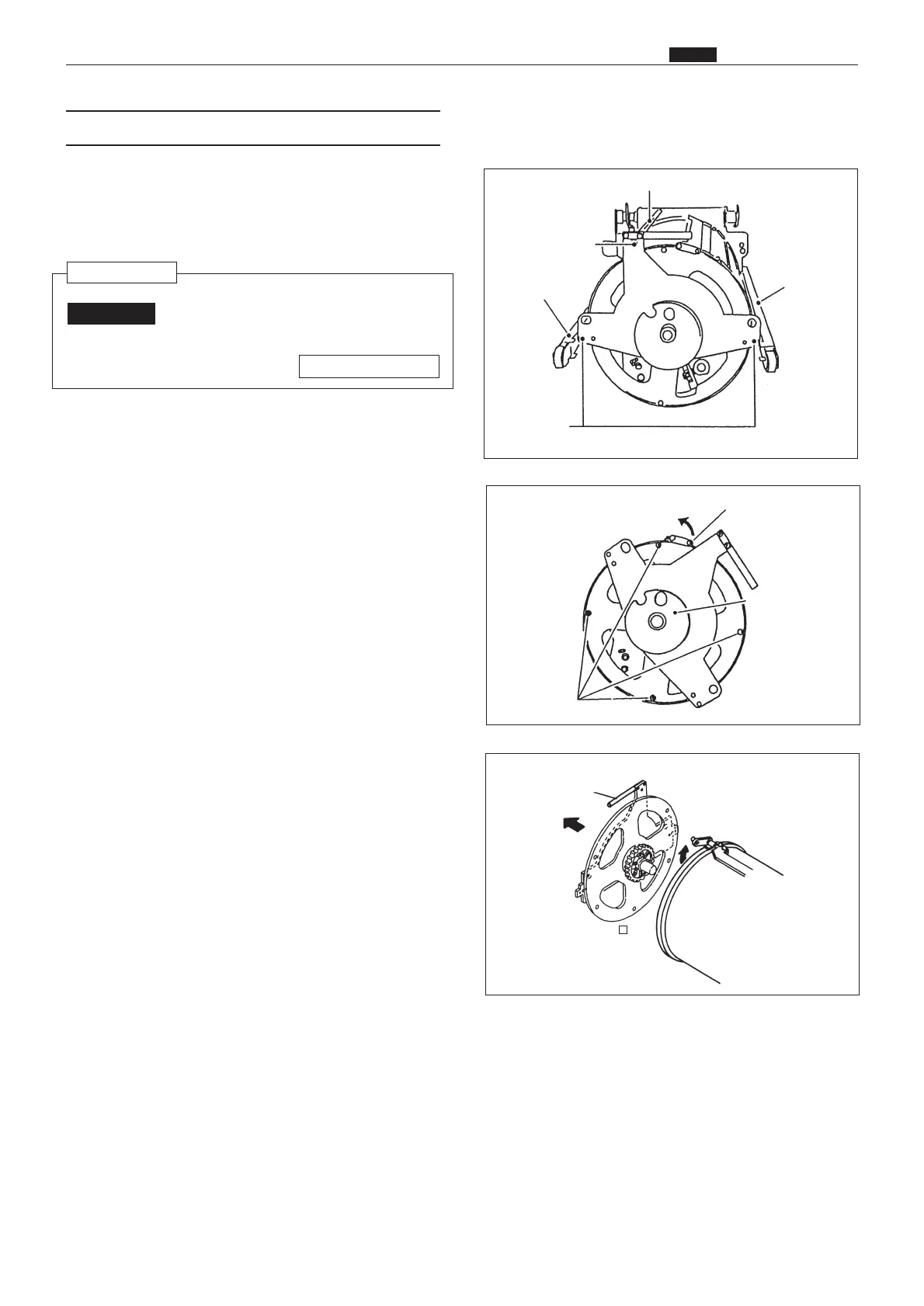

Removing the Outer Frame (Left) Assy
1) Remove the dram.
2) Remove the screw on the rail to take out the rail.
3) Remove the screw on the stay to remove the stay.
4) Remove 4 screws.
5) Pull out the outer frame (left) Assy with the mas-
ter clump open.
Stay
Screw on the Stay
Rail left
Rail right
(Rear side)
Rail screws
Master clump lever
Outer frame
(left) Assy
Outer frame
(left) Assy
Screws
Reinstallation
\See page 238
IMPORTANT
To Next Page
