c Paper Feed Section
chap.4
(5)

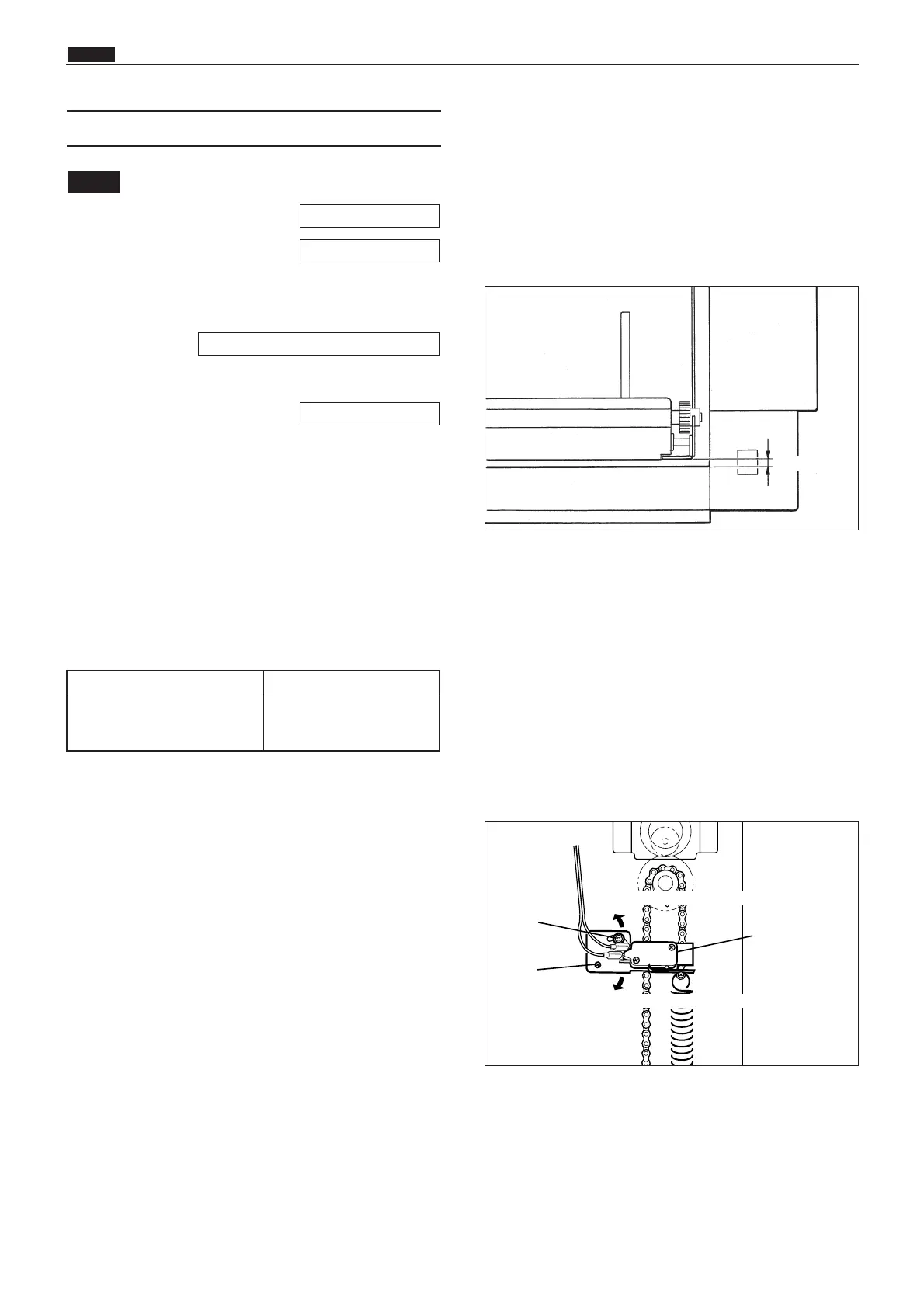

Adjustment of Paper Feed Tray Lower Limit Switch
Screw
Screw
4-6mm
To move lowermost position upward
Paper feed tray
lower limit switch
To move lowermost position downward
¡For description of operation.
¡For removal .
Adjustment method
1) Access HELP mode H-02.
For the basic procedure for accessing HELP modes:
2) Press and hold down the [<] (DOWN) printing
speed adjustment key until the paper feed tray is
at its lowermost position. The elevator motor will
run (i.e. the paper feed tray will descend) for as
long as the key is held down.
3) Check that the dimension indicated in the figure
at right conforms to the value shown below.
NOTE
If the feed length is not the standard value
1) Loosen the eccentric shaft screws on either side,
then adjust the lower limit switch to a position
that yields the standard clearance value.
¡Moving the sensor in the direction shifts the
lowermost position downward.
¡Moving the sensor in the direction shifts the
lowermost position upward.
2) After adjustment, tighten the eccentric shaft
screws on either side.
\See page 127
\See page 189
\See page 291
HELP mode H-02 \ see p.300
Standard value
Standard valueItem
Paper feed tray clearance in
lower limit position
4 - 6mm
63S00407
63S00408
