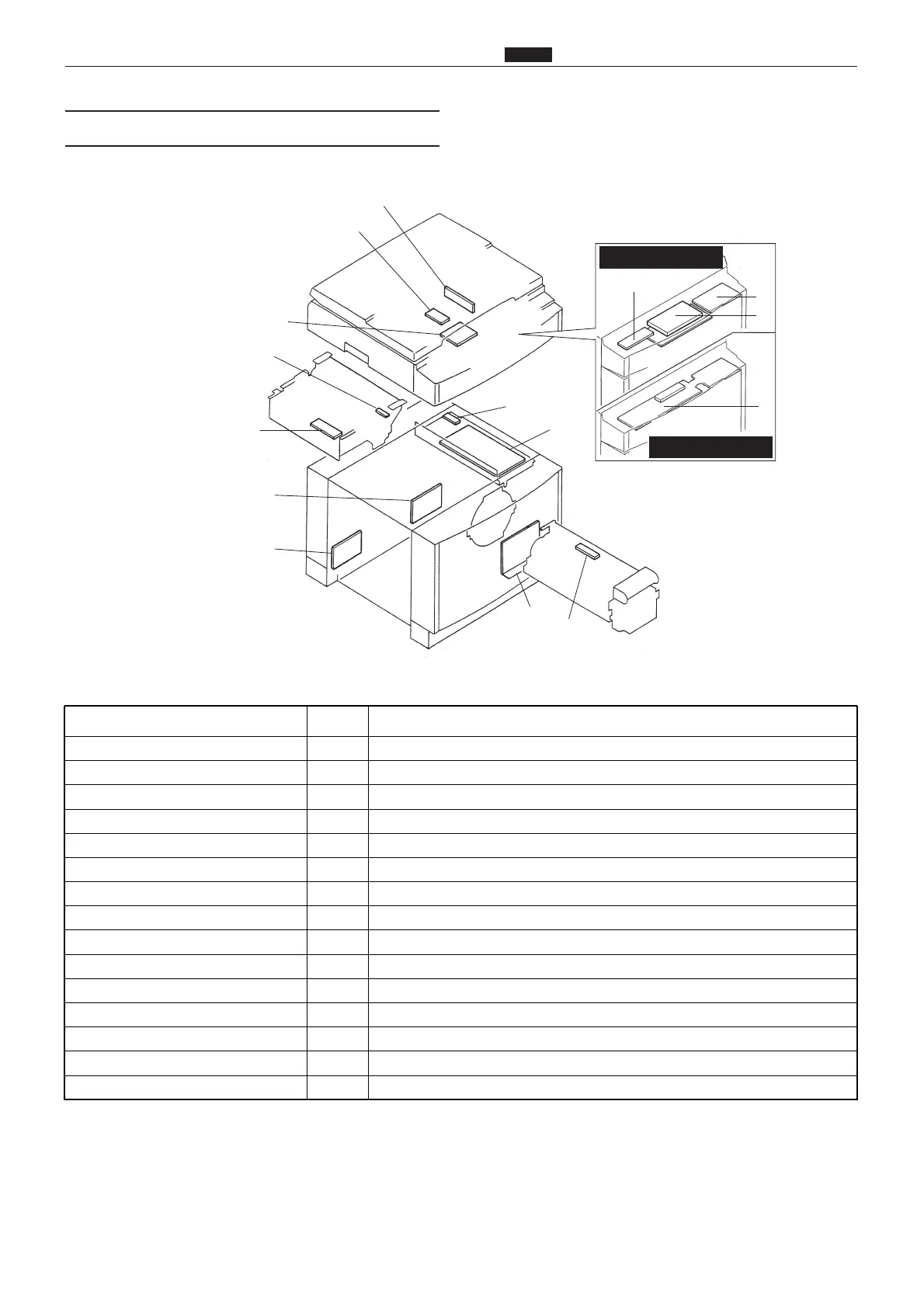

Item No. Functions
CCD PCB unit 1 Reading the picture image
AD PCB unit 2 Converting the image signal to AD
Inverter PCB unit 3 Lamp lights up
Control panel PCB unit (S type) 4 Control panel key, display
Ink detection PCB unit 5 Detecting Ink amount in the drum
Thermal head PCB unit 6 Controlling the thermal head
End mark sensor PCB unit 7 Detection of master presence on master feed travel path, and end mark
Main PCB unit 8
Processing the image and controlling the machine on the whole
Battery PCB '98 unit 9 Keeping the total counter and HELP information
Motor PCB unit 10 Controlling the main motor
Drive PCB unit 11 Driving the motor
Regulated power supply 12 Supplying with DC power supply
Editing control unit (E type) 13 LC panel (touch panel)
Control panel PCB 3 unit (E type) 14 Control panel key, display
Control panel PCB 4 unit (E type) 15 Control panel key, display
