366
z Electorical Parts Layout and Their Functions
chap.8

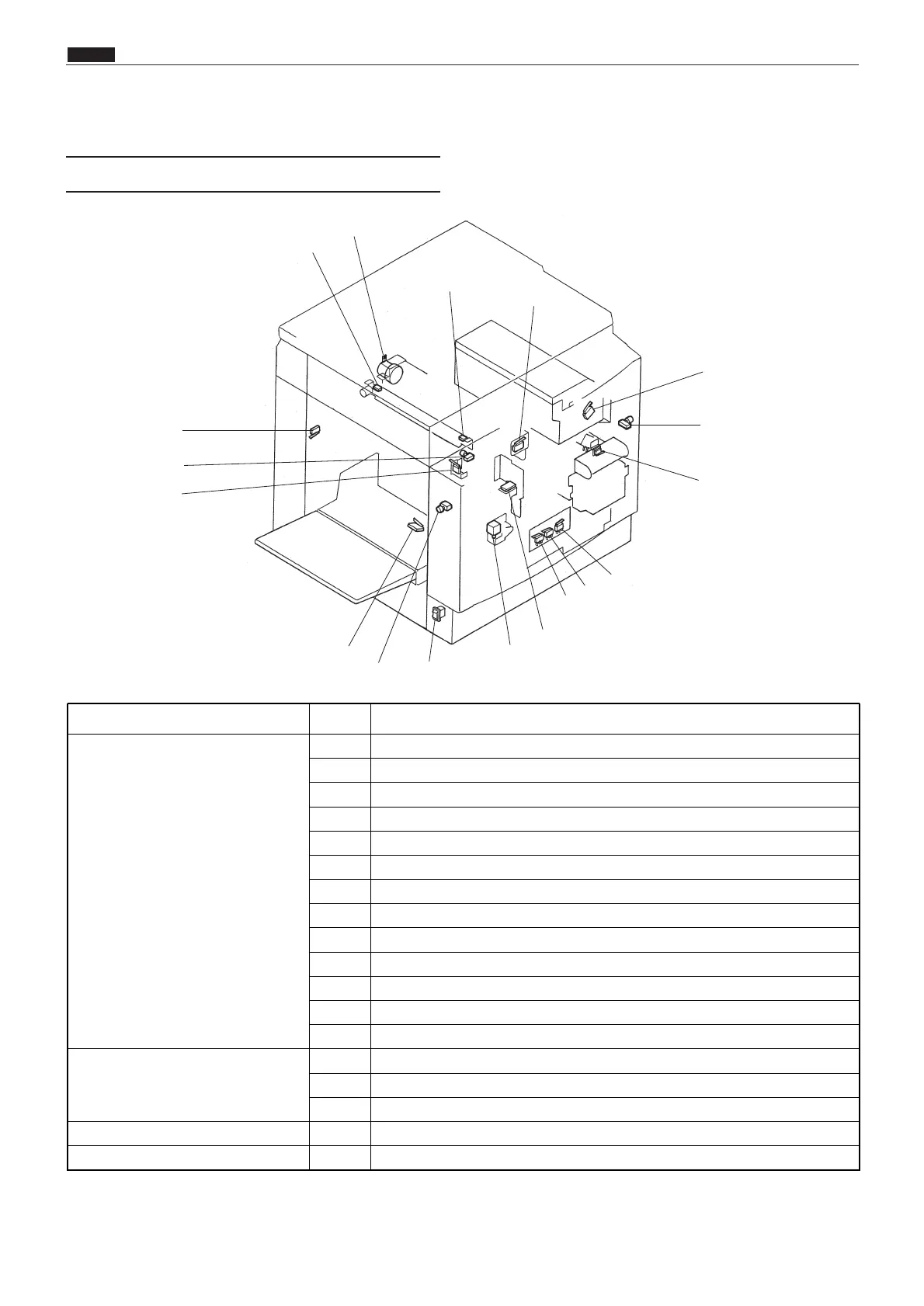

z Electrical Parts Layout and Their Functions
(1) Switches/Clutches/Solenoids
Item No. Functions
Microswitch/switch
1 Cutter limit position on the operation side is detected.
2 Cutter limit position on the rear side is detected.
3 Opening and closing of the top cover is detected.
4 Whether the drum is set or not is detected.
5 Opening and closing of the front cover is detected.
6 Whether the paper is placed or not is detected.
7 Whether the master ejection core is set or not and full or not is detected.
8
Hi contact pressure limit detection
Push switch
14 Feed tray elevator descent switch
15 Jog switch(drum rotator switch)
16 Master set switch
10
Contact pressure upper limit detection
12 Elevator lower limit switch
9
Contact pressure lower limit detection
11
Ink roller top/bottom limit detection
13 Power switch
Clutch 17 Master feeding clutch
Solenoid 18 Paper feed solenoid
