127
c Paper Feed Section
chap.2
(5)

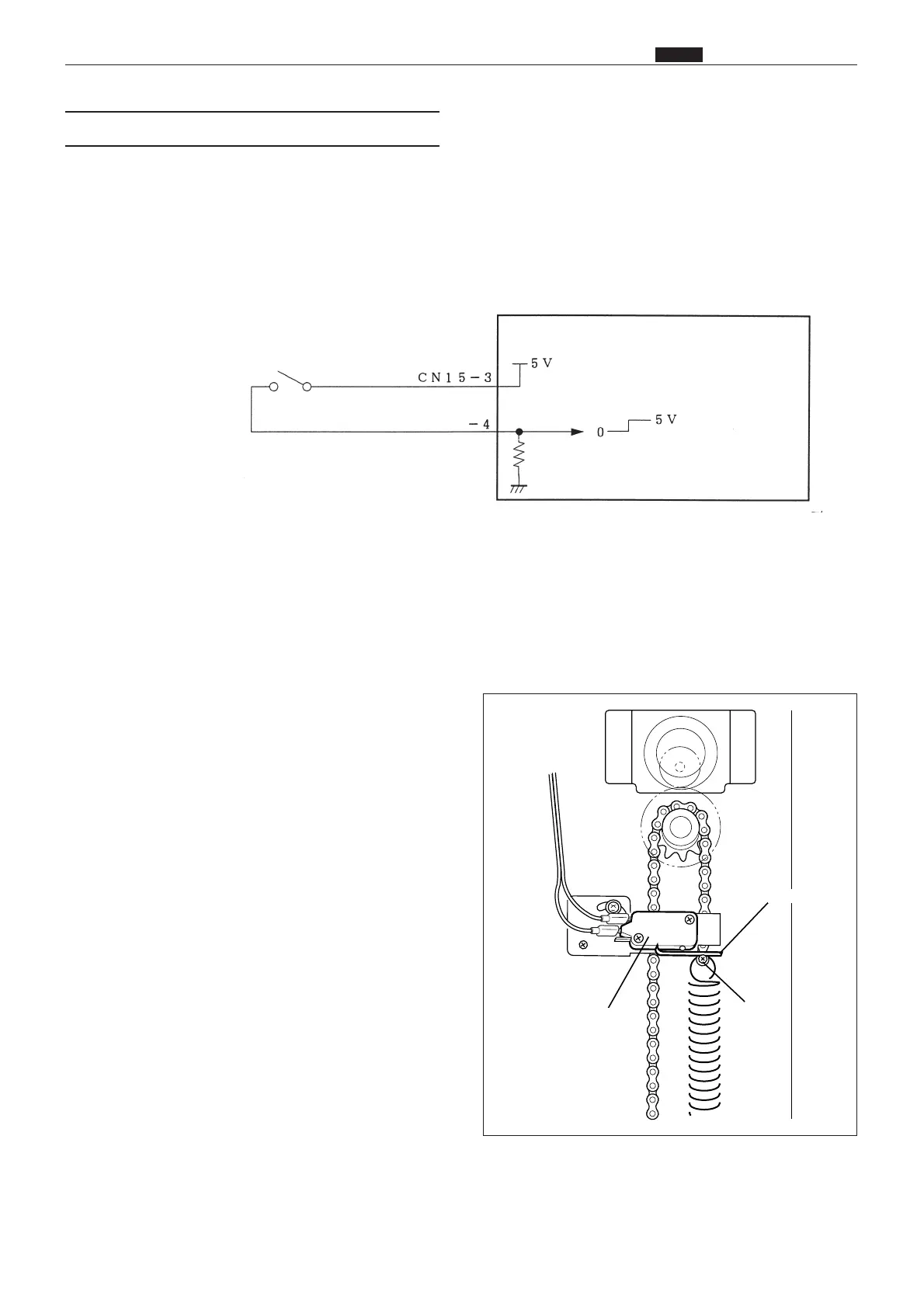

Feed Tray (Elevator) Lower Limit Switch
Description
Circuits
Operation
This is a micro switch (SM6) that senses the lower limit position of the feed tray.
When the feed tray rises, the screw disengages from the switch and the switch closes. When the feed tray
descends to its lower limit position, the screw engages the switch’s actuator, opening the switch.
If the switch does not open within 9 seconds of the sending of the LOWER FEED TRAY command, error E002
(elevator lock) is displayed.
43SH0210E
Feed tray (elevator) lower limit switch
Lower limit (PUSH) : OPEN
Pink
Pink
Main PCB unit
63S00224
Switch
Screw
Actuator
To Next Page
