Duplo Duprinter DP-43S - Lamps;Motors

368

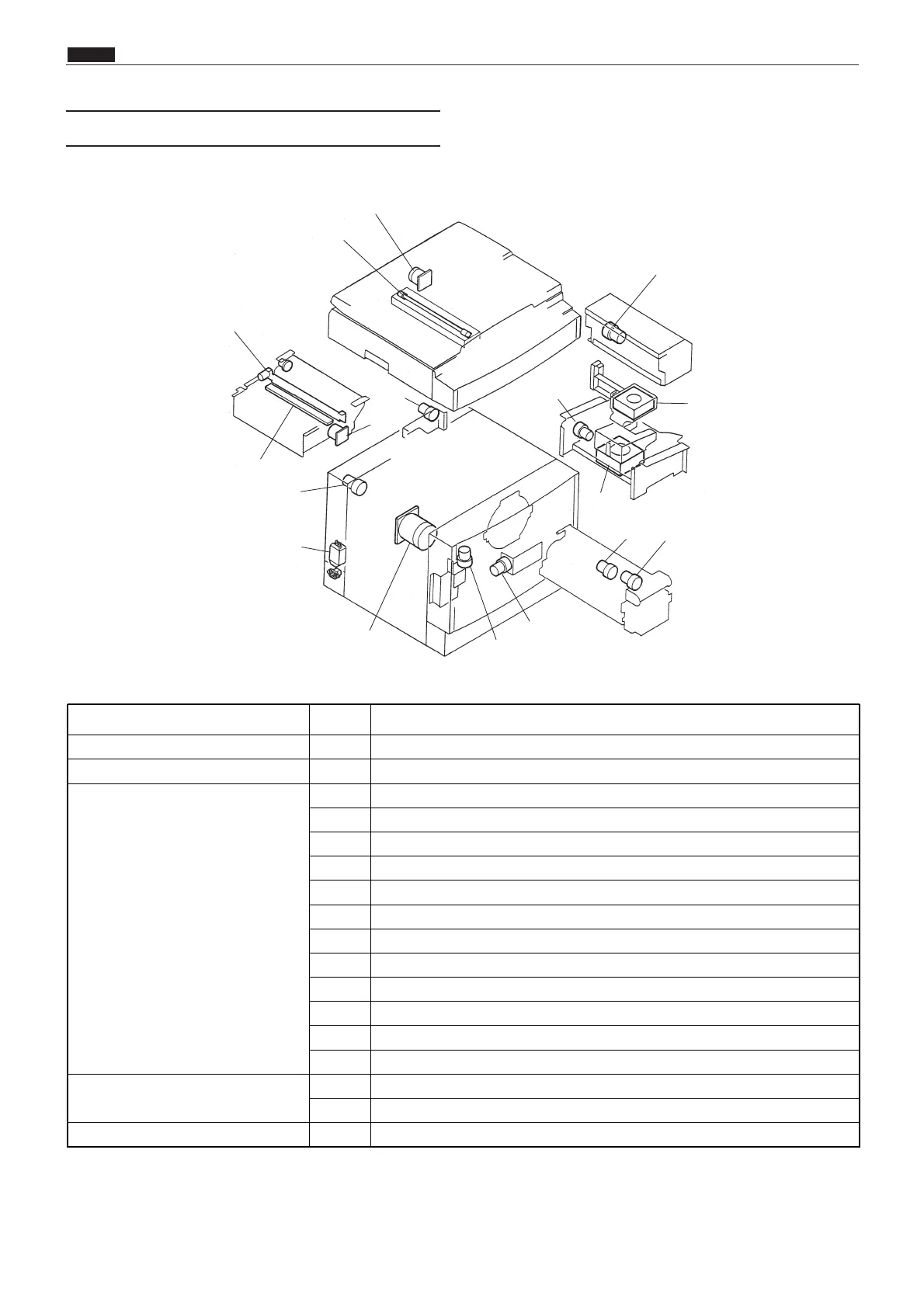

z Electorical Parts Layout and Their Functions
chap.8
Item No. Functions
Lamp 1 Document lamp
Thermal head 2 Thermal head
Motor
3 Main motor
4 Feed tray elevator motor
6 Roll-up motor
7 Cutter motor
8 Print position adjusting motor
9 Ink pump motor
13 Scanner stepping motor
Fan motor
15 Paper ejection fan
Noise filter 17 Power supply line noise cut
11 Paper ejection belt motor
12 Ink roller rise / descent motor
10 Contact pressure motor
16 Top blow fun
14 Plate making stepping motor
5 Master clump opening/closing lever motor
(3) Lamps/Motors
1
13
2
4
17
3
8
10
12
9
15
16
11
6
14
5
7
