n Paper Ejection Section
chap.3
(7)

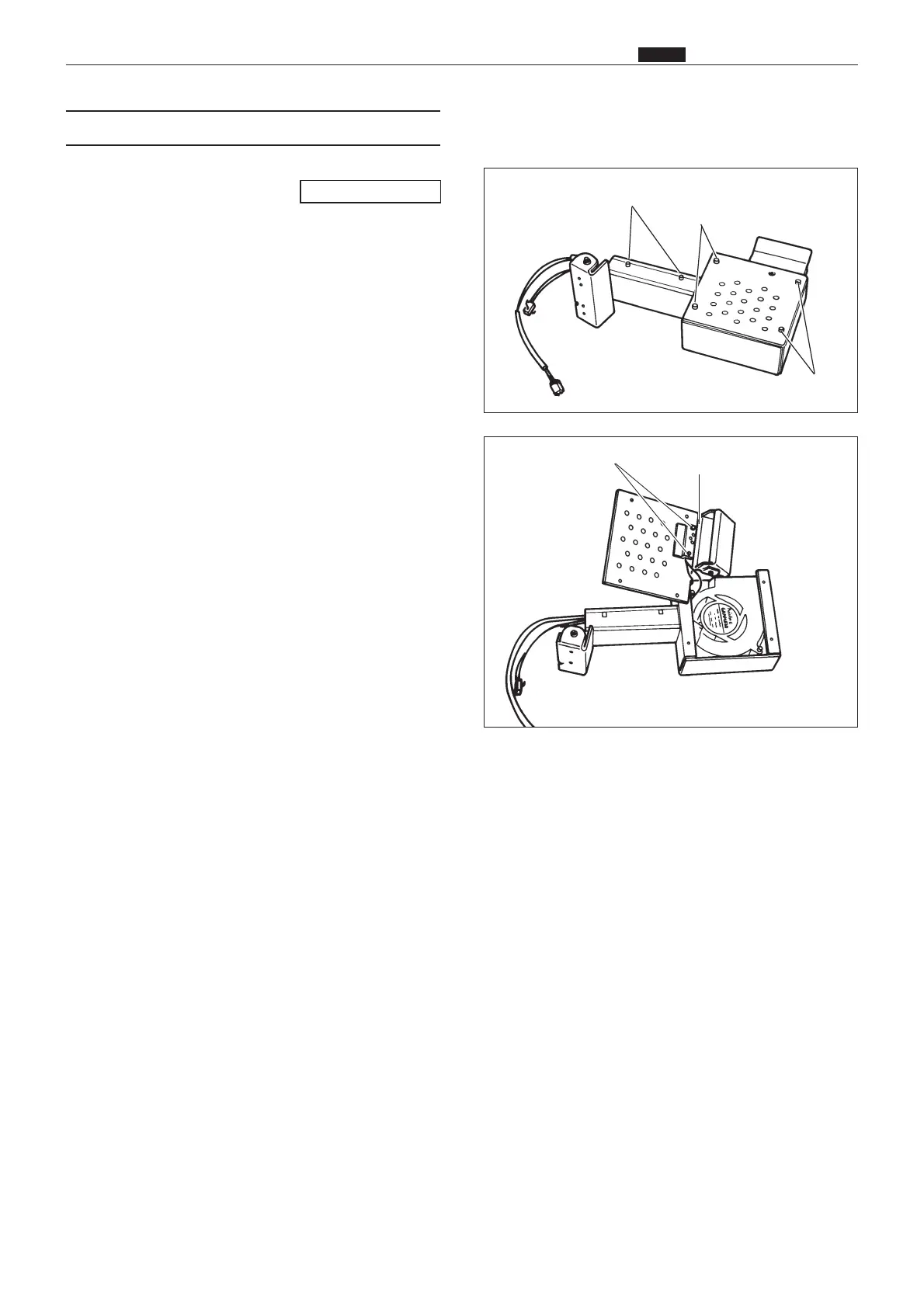

Removing the Jam Sensor (Photo-emitting PCB Unit)
1) Remove the top fan unit.
2) Cut the 2 tie wraps.
3) Remove the 4 screws.
4) Remove the 2 screws from the jam sensor photo
emitting PCB unit, and remove the PCB.
Tie wraps
Screws
Screws
Screws
Jam sensor light-emitter PCB
\See page 198
