Duplo Duprinter DP-43S - Replacing the Master Roll

Chap.1 ⁄0 Error Messages and Corrective Action
43
IMPORTANT
• Only use a master roll designed for use in this machine.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

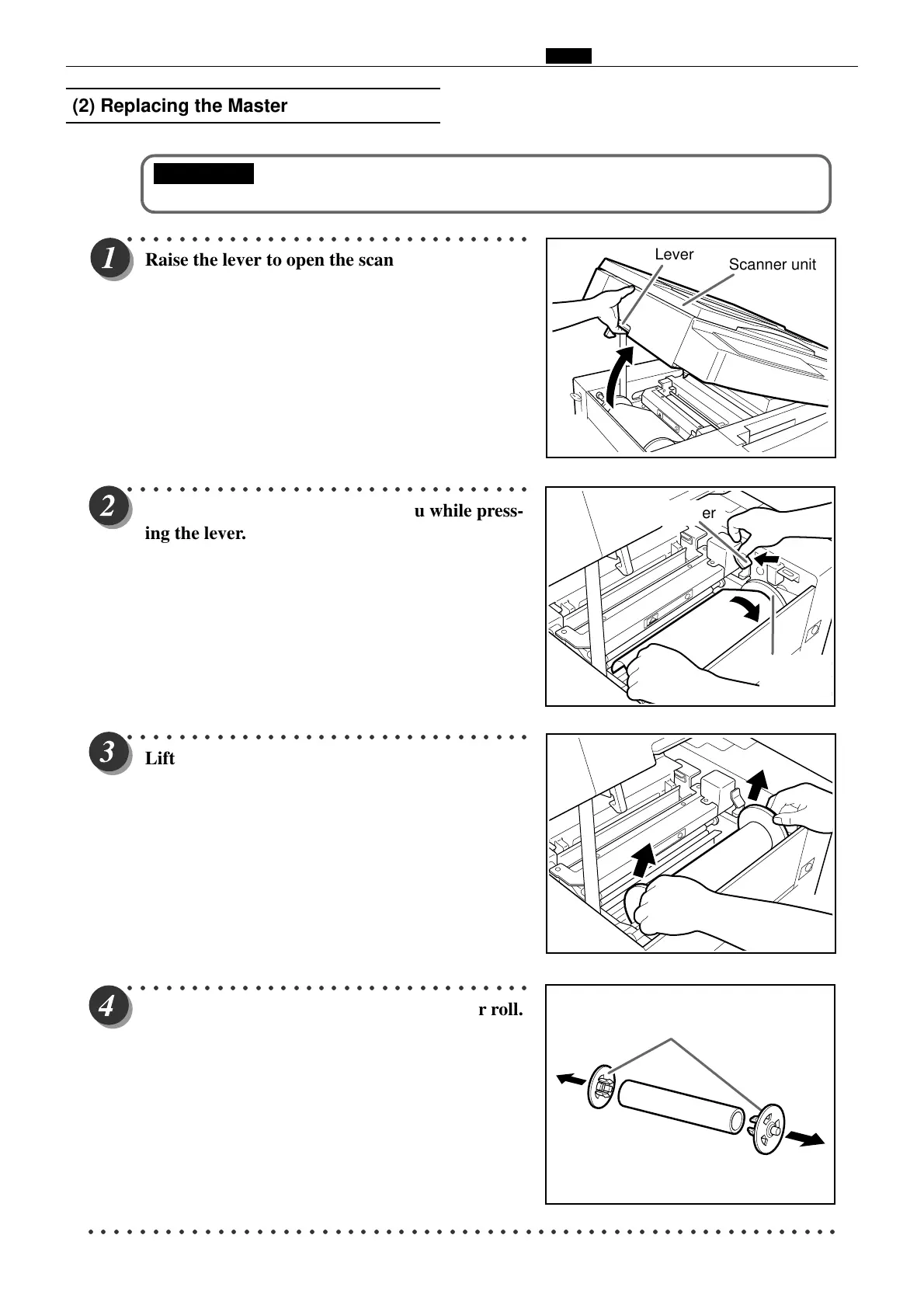

Raise the lever to open the scanner unit.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Turn the master holder toward you while press-
ing the lever.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Lift out the master roll.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Remove the master holder from the master roll.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
(2) Replacing the Master Roll
Holder
Master
Holder
Lever
Lever
Scanner unit
