x Plateaking / Master Feed / Ejection Sectin
chap.4
214
xPlatemaking / Master Feed / Ejection Section
(1) Master Feed Unit
¡For removal of master feed unit.
Adjustment procedure

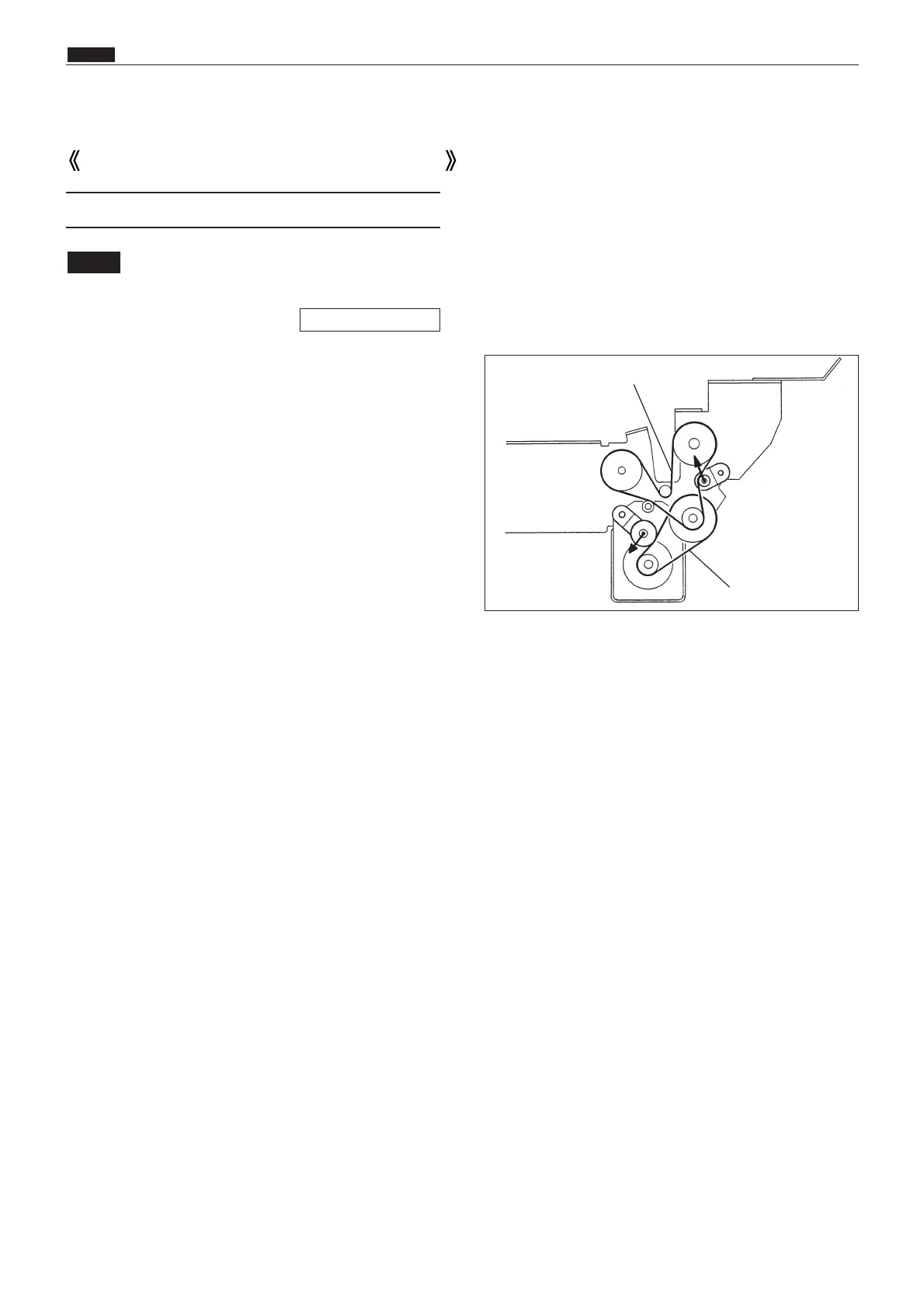

Adjust the tension as shown in the figure.
1) Apply a force of about 700g in the direction of
the arrow to tension the belt, then tighten the
set screw to secure the tension.
2) Apply a force of about 2kg in the direction of the
arrow to tension the belt, then tighten the set
screw to secure the tension.
NOTE
Platemaking / Master Feed Section
Timing Belt
Timing Belt
q
w
\See page 183
To Next Page
