234
n Paper Ejection Section
chap.4
Clearance
1mm
Screws
If the clearance is not the standard value:
1) Loosen the 2 screws indicated and use the stop-
per to adjust the clearance to the standard value.
Then retighten the screws.
After adjustment:
¡After adjustment, press the JOG switch (DRUM
ROTATOR switch) to return the drum to its
home position.
IMPORTANT
(2)

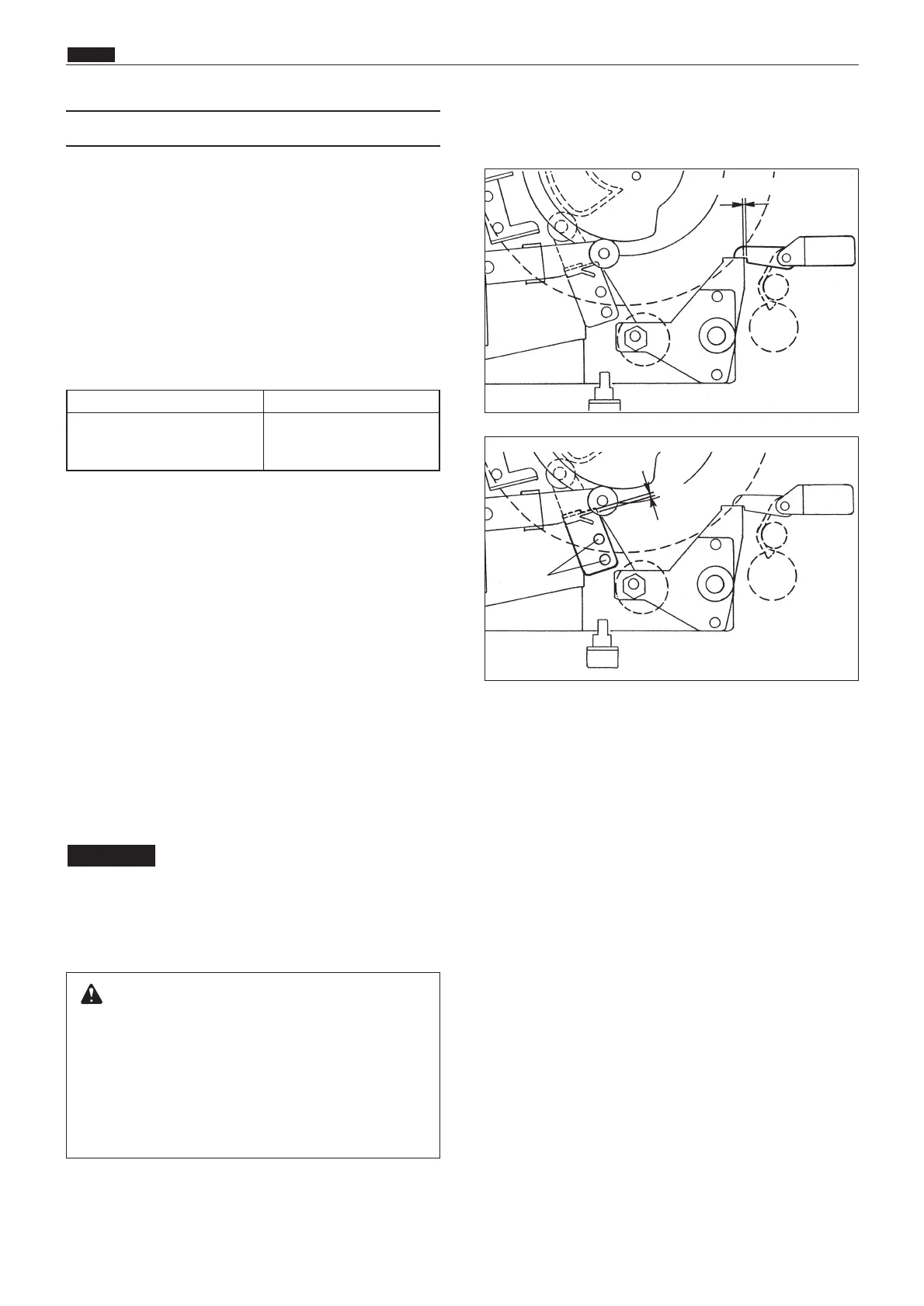

Adjusting the Paper Stripper Finger Return Stopper
Adjustment procedure
1) Turn the main motor shaft by hand until a clear-
ance is opened up between the pinch lever and
the bracket.
Standard value
¡Check that the clearance between the lever and
the paper stripper finger return stopper conforms
to the value shown below.
Standard valueItem
Clearance between lever and
paper stripper finger return
stopper
about 1mm
WARNING
¡Do not touch the drum or rolls when operat-
ing the JOG switch.
¡Do not put your hands or fingers inside the
machine during operation. They could be
caught up or crushed in the machinery,
resulting in injury.
To Next Page
