c Platemaking/Master Feed and Ejection Section
chap.3

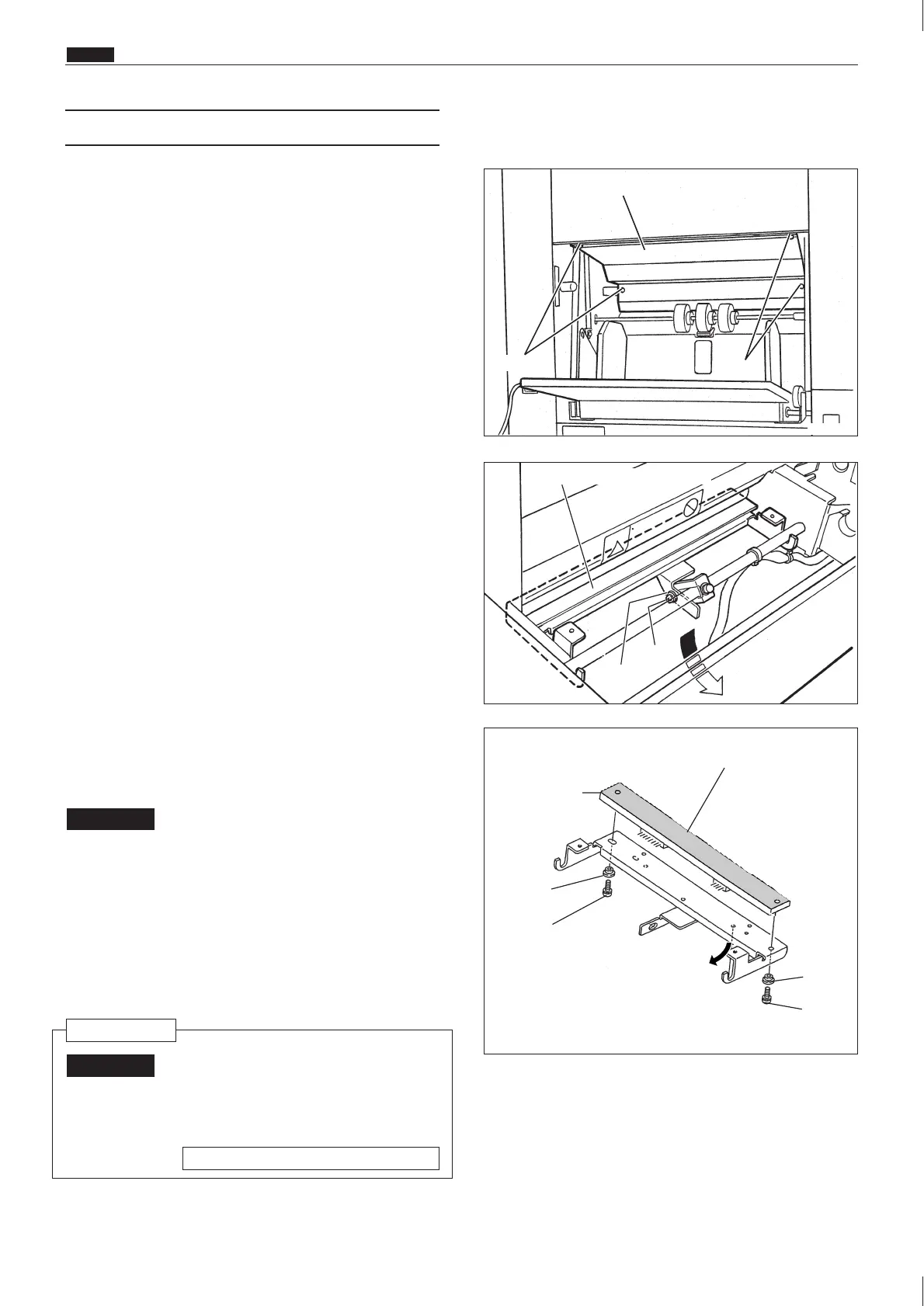

(3) Removing the Thermal Head
1) Remove the 4 screws from the under cover,
and remove the under cover.
2) Remove the screw, together with the collar.
3) Remove the thermal head mounting unit, through
the bottom.
¡ When the thermal head is replaced, set the
HELP43 and HELP44 DIP switches.
IMPORTANT
4) Unscrew the screws in the collars, and remove them
together with the collars. This will free the thermal
head, which can now be removed.
¡ Do not touch the heat emission parts of the
thermal head.
¡The thermal head is also liable to corrode. To avoid
corrosion, keep the head free of moisture and salinity,
and do not touch its heat emission parts. Touching
these parts could scratch them.
IMPORTANT
Do not touch the heat emission parts
Screw
Screw
Thermal head
HELP mode H-43,44 \ see p.344
Reinstallation
Thermal head mounting unit
Collar
Screw
Collar
Collar
63S00343
Screws
Screws
Under cover
