238
m Print Tray Section
chap.4
0.3mm 0.3mm
Guide rail left Guide rail right
Rail unit left
Set screws
Rail unit right

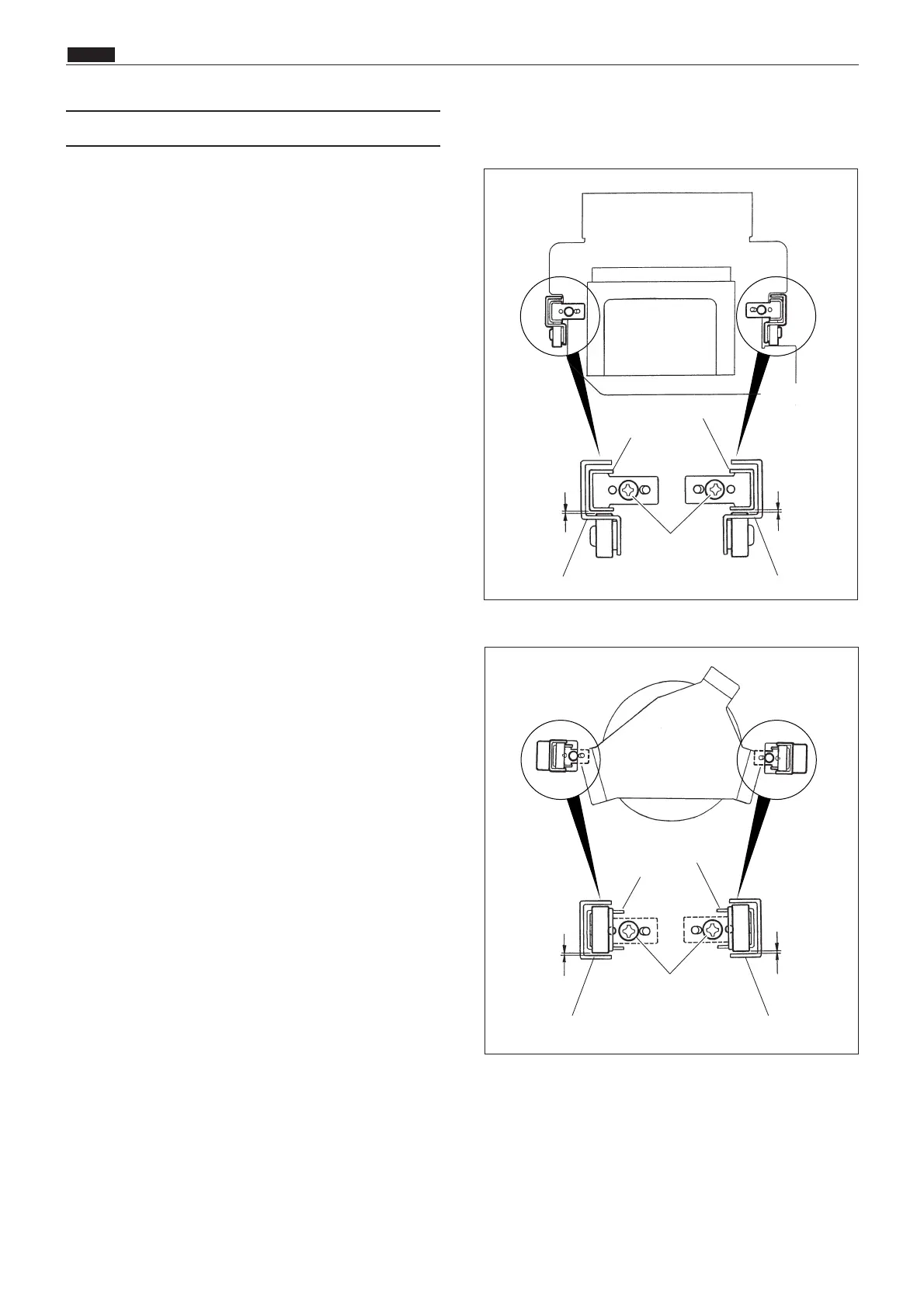

(5) Adjusting the Drum Rail Gap
1. Operation side
Adjustment procedure
1) Attach the drum to the main body.
2) Loosen the set screw on the rail to adjust so that
the gap between the rail (both sides) and the
roller on the operation side is about 0.3mm.
3) Tighten the set screw to fix the rail.
2. Rear side
Adjustment procedure
1) Open the rear cover on the main body.
2) Loosen the screws on the rail to adjust so that
the gap between the roller on the rear side and
the rail right / left unit is about 0.3mm.
3) Tighten the screw to fix the rail.
0.3mm 0.3mm
Guide rail left Guide rail right
Rail unit left
Set screws
Rail unit right
