189
v Paper Feed Section
chap.3
Screws
Elevator lower
limit switch
Terminals
(2)

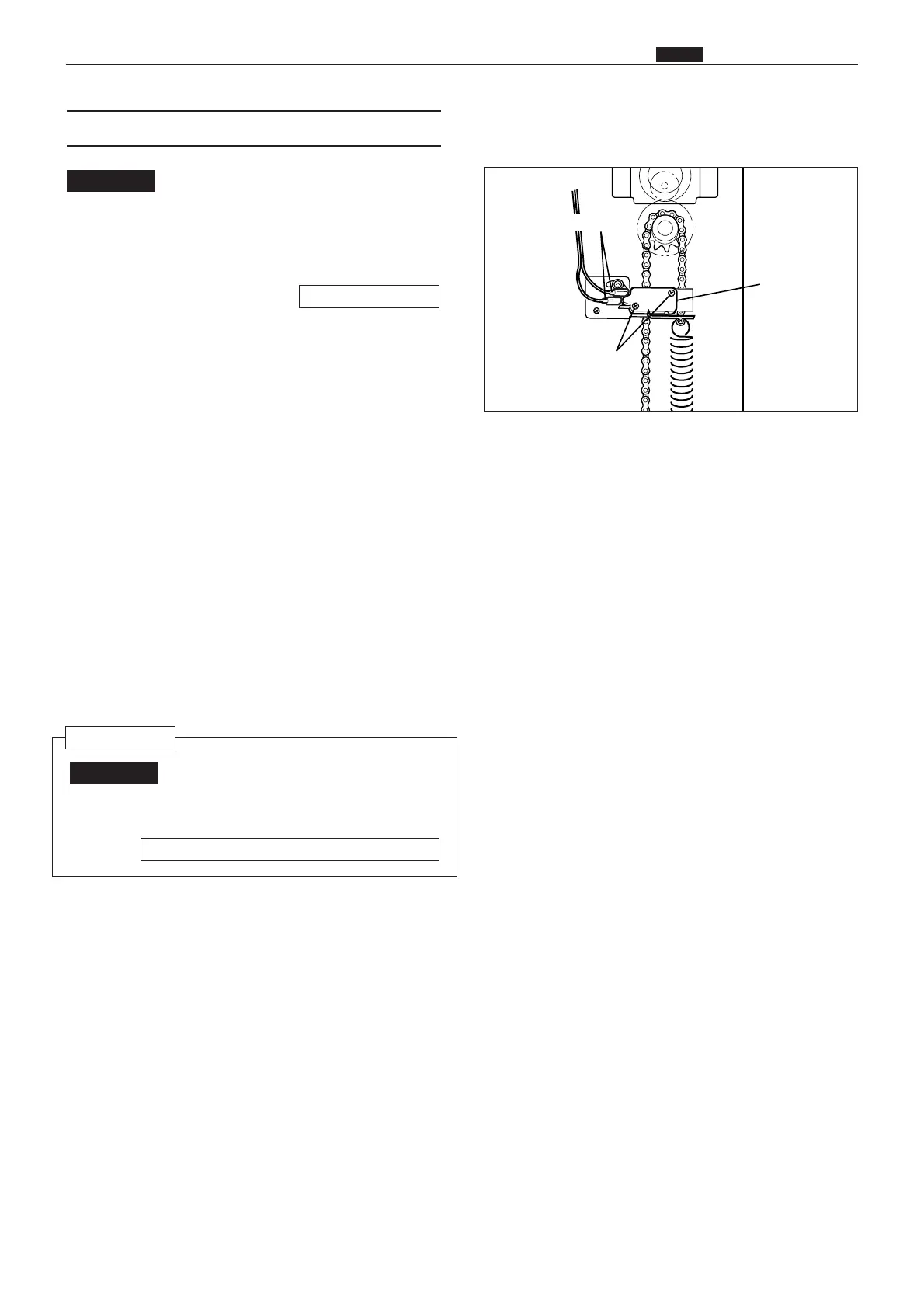

Removal of Elevator Lower Limit Switch
: Be sure to turn off the power before
removing the elevator lower limit
switch.
1) Remove the rear cover.
IMPORTANT
: After reinstalling the elevator lower
limit switch, carry out adjustment
of its clearance.
IMPORTANT
2) Disconnect the 2 terminals and 2 screws indicat-
ed, then remove the elevator lower limit switch.
Reinstallation
\For adjustment method see page 224
\See page 169
63S00371
To Next Page
