196
n Paper Ejection Section
chap.3
¡When the paper ejection belts are replaced,
adjust the paper ejection belt speed.

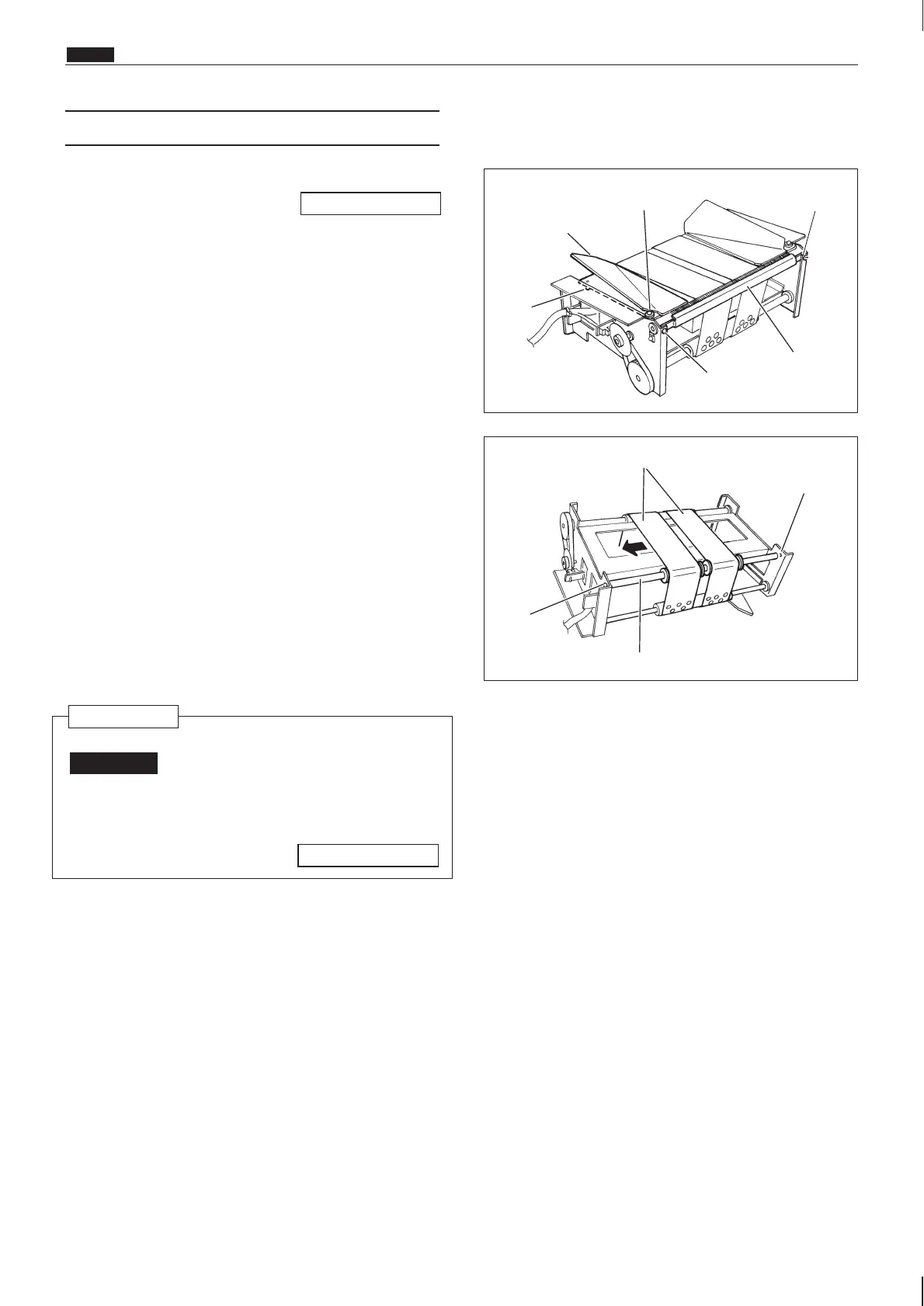

(3) Removing the Paper Ejection Belt
1) Remove the paper ejection fan unit.
2) Remove the 2 screws from the static removal
brush, and remove the static removal brush.
3) Remove the 2 screws from one of the jump plates
and remove the jump plate.
4) Remove the 2 screws from the ends of the shaft,
and remove the shaft.
5) Stretch the belts and install them oriented as
shown in the figure.
Jump plate
Screw
Screw
Screw
Screw
Screw
Belts
Shaft
Screw
Static removal brush
\See page 195
Reinstallation
IMPORTANT
\See page 248
To Next Page
