Chap.1 , Part Names and Their FunctionsChap.1 , Part Names and Their Functions
1 2 3
4 5 6
7 8 9
0 C
e q !1 y t
iuo!2 !3!0wr!4
No. Name Functions
q
Printing speed indicator lamp The lamp for the specified printing speed lights.
w
“PRINTING SPEED The printing speed is adjusted with these keys.
ADJUSTMENT” keys
e
Printing position indicator The lamp for the specified printing position lights.
lamp
r
“PRINTING POSITION The printing position (vertical) is adjusted with these keys.
ADJUSTMENT” keys
t
“PLATEMAKING” key Starts platemaking.
y
“TEST PRINT” key Prints one copy. This is used to check the image position and
contrast.
u
“PRINT” key Starts printing. This will not start platemaking. When the tape
cluster or ADF have been installed, platemaking will start
automatically after end of printing if the document is placed on
the ADF.
i
“STOP” key Stops printing. If this key is pressed while the machine is
stopped, the number of copies and plates will be displayed.
o
“ALL CLEAR” key Returns the control panel settings back to the standard made.
Hold down for at least 0.5 second.
!0
LCD panel Displays number of prints and other machine settings. Displays
error messages when error is occurred.
!1
Key pad Used for entering the number of prints.
!2
“CLEAR” key Clears the display to “0”. Clears the number of prints only.
!3
key Enters the number of prints and number of sets. To enter the
number of prints per document after a clear, press the key.
!4
Input Pen Used with the Edit Functions.
No. Name Functions
q
Message Display Area Displays "PRINT" and other messages related to the operation of
the printer.
w
Paper Size This button is used to select the size of the paper for printing.
e
Enlargement/Reduction This button is used to set the enlargement/reduction ratio.
r
Photograph Mode This button is used to set the Photograph Mode and other
Platemaking methods.
t
Edit This button is used to select Editing Functions.
y
F Settings This button is used to select Function modes.
u
Menu This button is used to display and manipulate the Menu Screen.
i
Status This button displays the current settings.
o
Counter Displays the number of copies remaining to be printed.
!0
Number of Sets Displays the number of sets.
!091
2
3
4
5
678
EDIT
F-SET
MENU
PRINTING



1
×
Ａ４
１００％


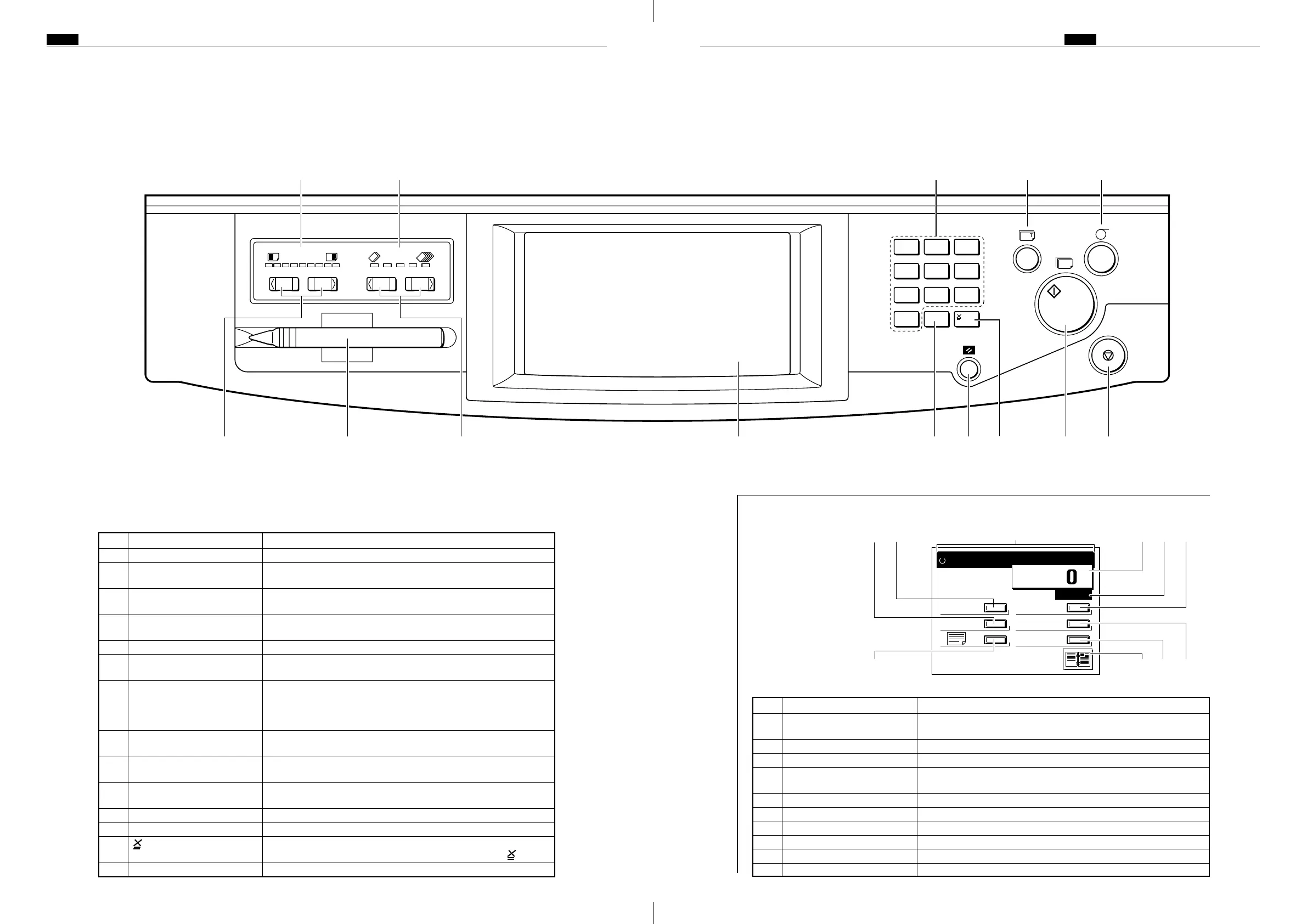

1. Keys of the control panel
3. Control panel
<<E type models>>
2. LCD Panel main screen
