Chap.1 , Part Names and Their Functions

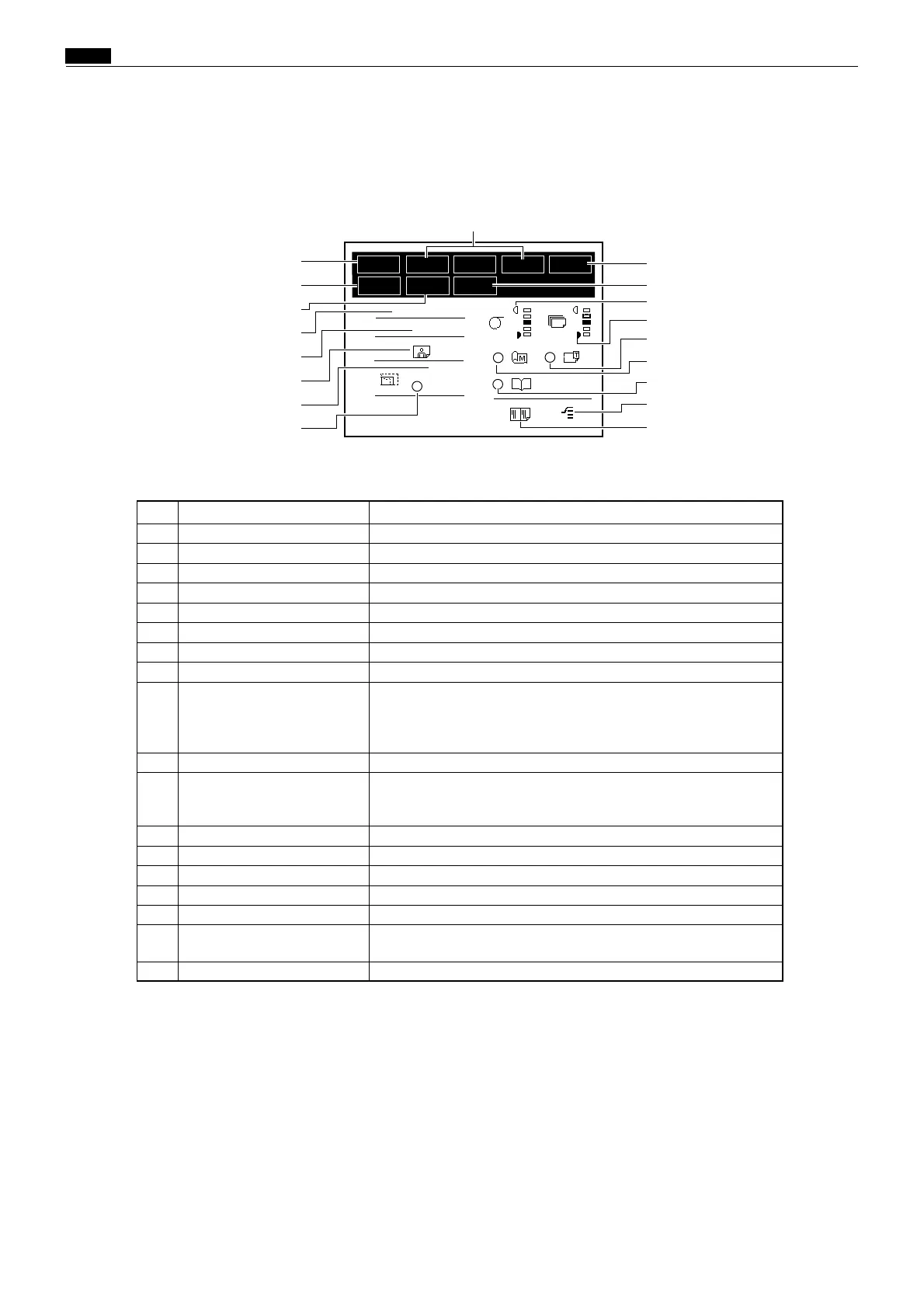

3. Function Mode Screen
Screen A
0 ✕ 1
A 4
NORMAL
PAGE
END
SAVE CLEAR
F 1 F 2 F 3
100%
✕ 94%
o Function Keys (F1-F3)
Normal key q
Page Cgange key w
Save key e
No. of Copies/No. of Sets indicator r
Paper Size indicator t
Document Mode indicator y
Enlargement/Reducation indicator u
94% indicator i
!0 End key
!1 Clear key
!2 Plate Darkness indicator
!3 Print Darkness indicator
!4 Trimming indicator
!5 Makeup indicator
!6 Book Shadow Eraser indicator
!7 Sorter indicator
!8 Multiple Printing indicator
No. Name Feature
q
Normal key Clears the Function Mode.
w
Page Change key Changes from Screen A to Screen B and vice versa.
e
Save key Stores settings under Function keys F1 through F3.
r
No. of Copies/No. of Sets indicator
Indicates the number of copies and sets that have been set.
t
Paper Size indicator Indicates the Paper Size setting.
y
Document Mode indicator Indicates the Document Mode setting
u
Enlargement/Reduction indicator
Indicates the Enlargement/Reduction setting.
i
94% indicator A black dot "•" indicates the 94% Reduction Mode is ON.
o
Function Keys (F1-F3) Allow information pertaining to enlargement/reduction, paper
size, multiple printing, number of copies, makeup, etc. to be
stored in advance, and then called up as needed for printing
operations.
!0
End key Terminates Function setting operation.
!1
Clear key Clears settings stored in memory under Function Keys F1-F3.
Pressing the Clear key returns the Function Keys to their default
settings.
!2
Plate Darkness indicator Indicates the Plate Darkness (contrast) setting.
!3
Print Darkness indicator Indicates the Print Darkness setting
!4
Trimming indicator A black dot "•" indicates the Trimming Mode is ON.
!5
Makeup indicator A black dot "•" indicates the Makeup Mode is ON.
!6
Book Shadow Eraser indicator
A black dot "•" indicates the Book Shadow Eraser Mode is ON.
!7
Sorter indicator Indicates the Sorter Mode setting. (Indicator only functions when
the sorter is hooked up.)
!8
Multiple Printing indicator Indicates the Multiple Printing Mode setting.
