Duplo Duprinter DP-43S - Removing the Optical System Driving Unit

177
x Scanner Section
chap.3

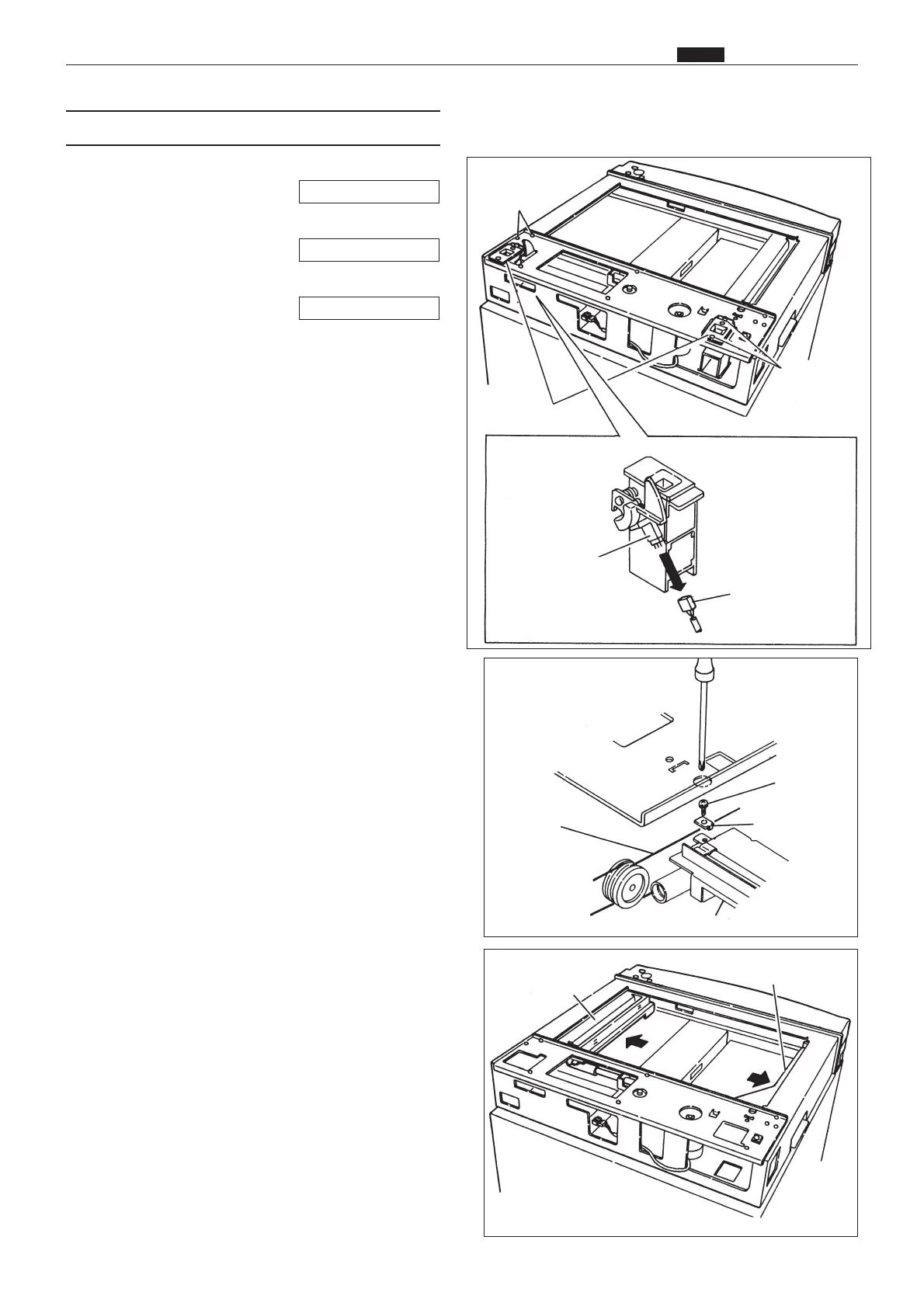

(10) Removing the Optical System Driving Unit
1) Remove the scanner outer covers.
2) Remove the vertical size scale plate.
3) Remove the glass.
4) Remove 2 screws to remove both holders.
5) Remove the connector on the document cover
sensor.
6) Loosen the wire set screw on slider A to remove
the wire from the wire clump.
7) Move slider B to the right end.
Move slider A to the left.
Screws
Screws
Holders
Document cover senser
Connector
Screw
Wire
Wire clump
Slider A
Slider A
Slider B
\See page 168
\See page 172
\See page 173
