Duplo Duprinter DP-43S User Manual

178
x Scanner Section
chap.3

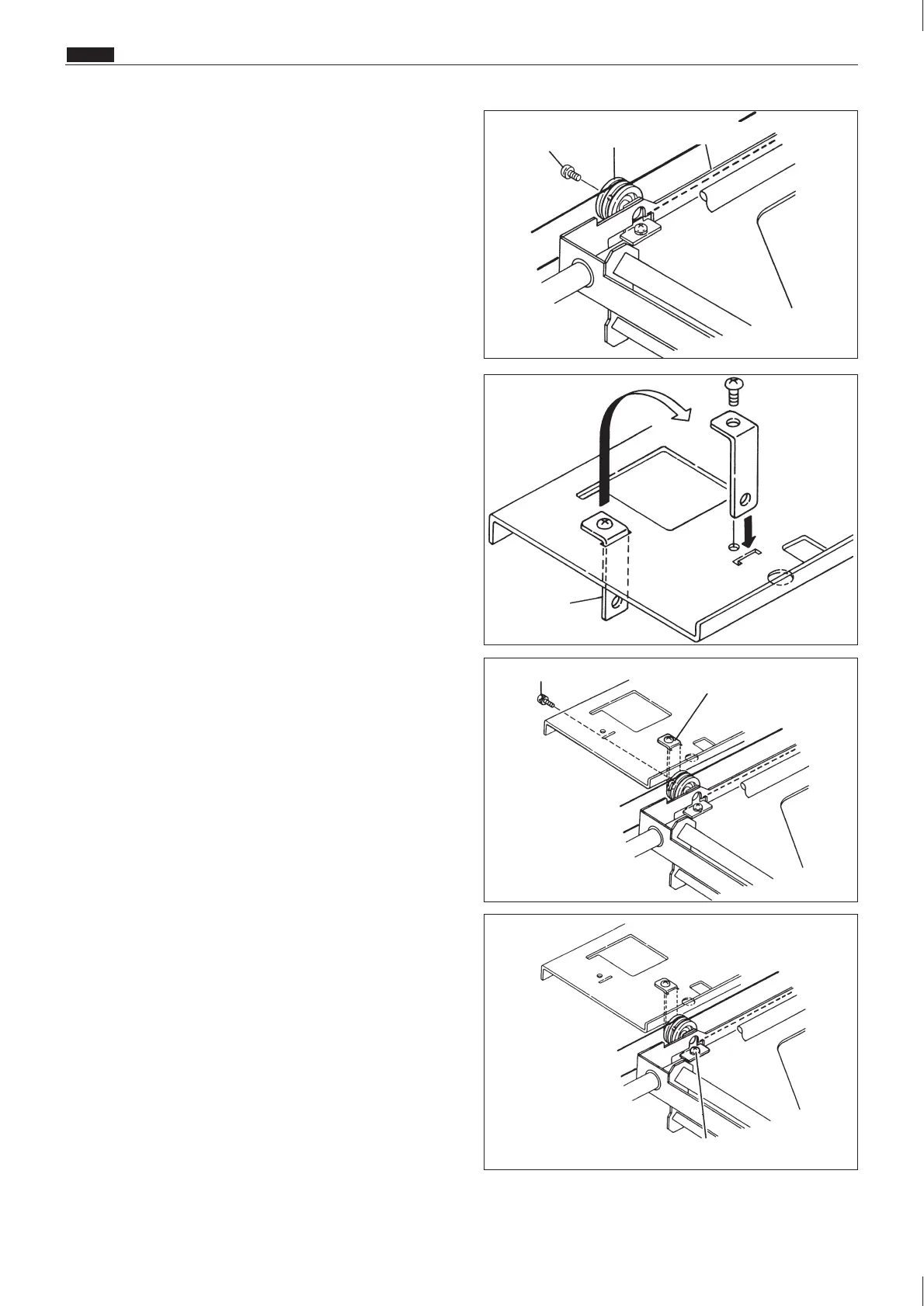

8) Remove the screw on the pulley shaft.
(Use the screw in the 10).
9) Remove the angle to attach it to the position as
shown in the figure.
10) Fix the pulley shaft to the angle with the
screw.
11) Remove the screw on the slider B.
Screw
Pulley
Slider B
Angle
Angle
Screw
Screw on the slide B
