231
b Press Section
chap.4
Sensor bracket
Press roll
Bracket
Screw
1mm
(1)

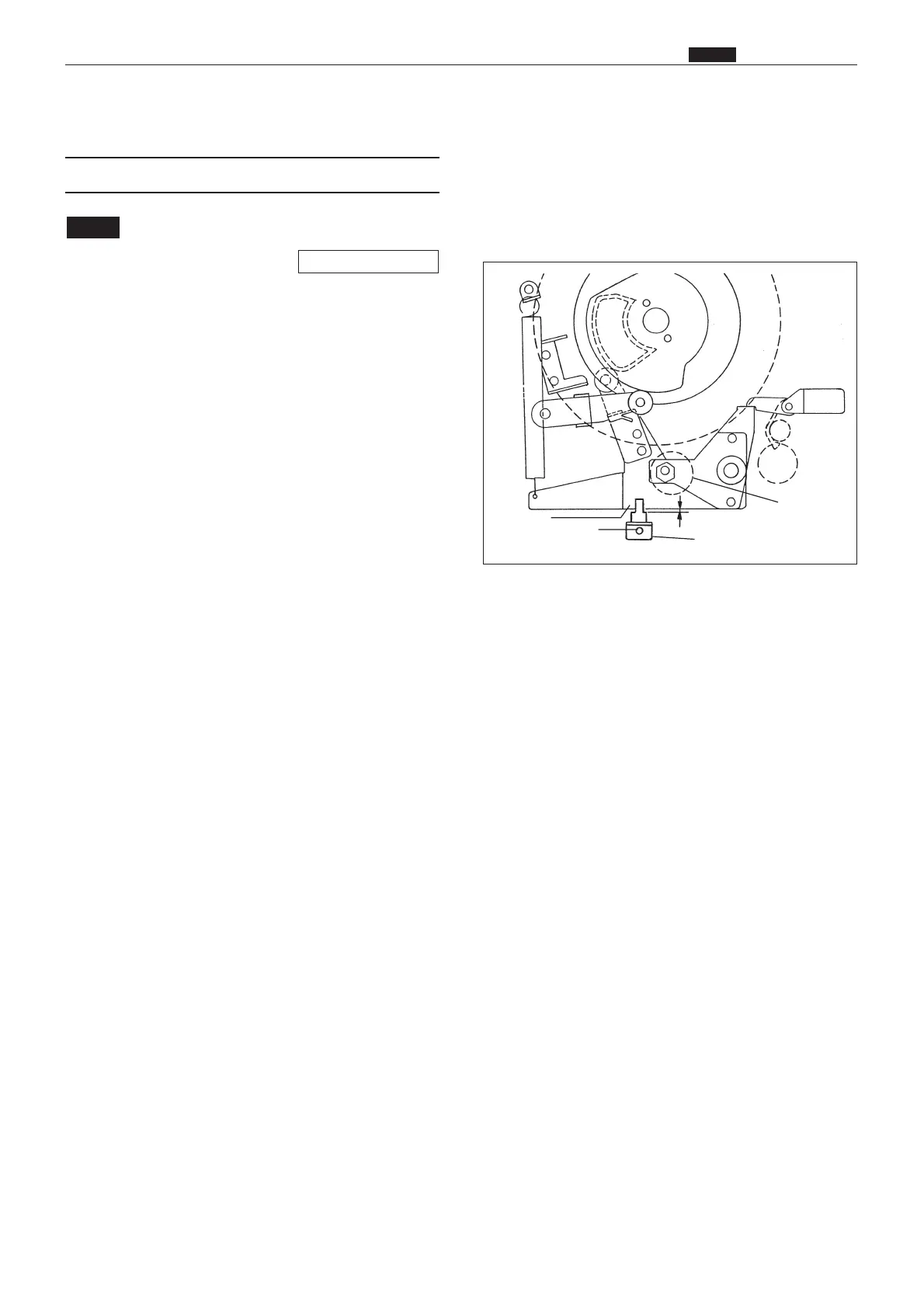

Adjusting the of Press Roll (P Roll) Sensor
bPress Section
¡For description of operation.
Adjustment procedure
1) Loosen the screw indicated. Then move the sen-
sor bracket up/down to adjust the press roll so
that when it is pushed down to the lowest posi-
tion by the cam, the distance between the bottom
of its sensor and the end of the bracket is about
1mm.
NOTE
\See page 138
