198
n Paper Ejection Section
chap.3

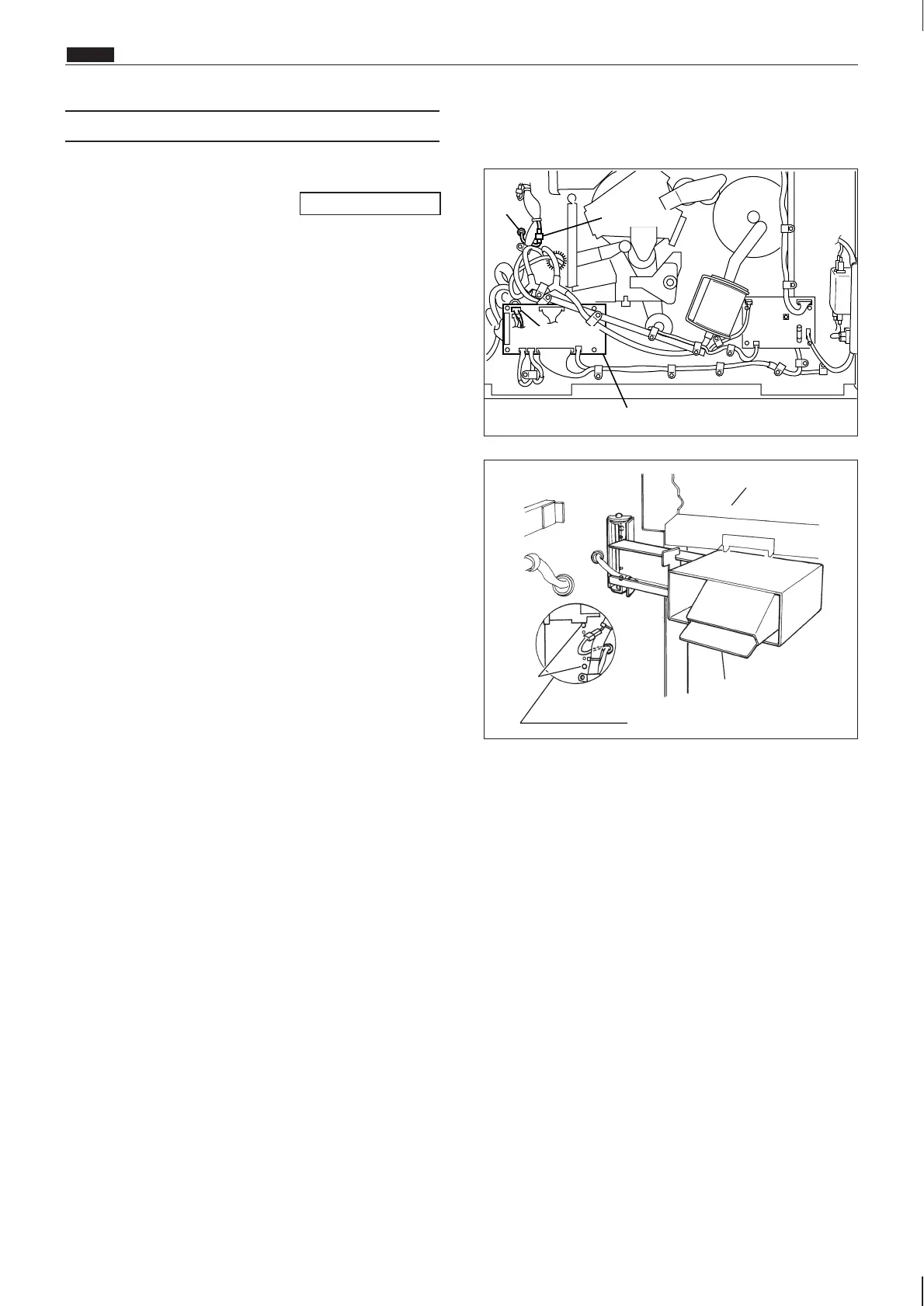

(6) Removing the Top Fan Unit
1) Remove the rear cover.
2) Remove the 2 connectors and the bush.
3) Open the front cover, and remove the drum.
4) Open the master ejection box, and top fan unit.
5) Remove the 2 screws from the top fan unit, and
remove the unit.
Bush
Connector
Connector
Drive PCB unit
Screws
Top fan unit
Back view
Master ejection box
\See page 169
63S00373
