c Paper Feed Section
chap.4
(10)

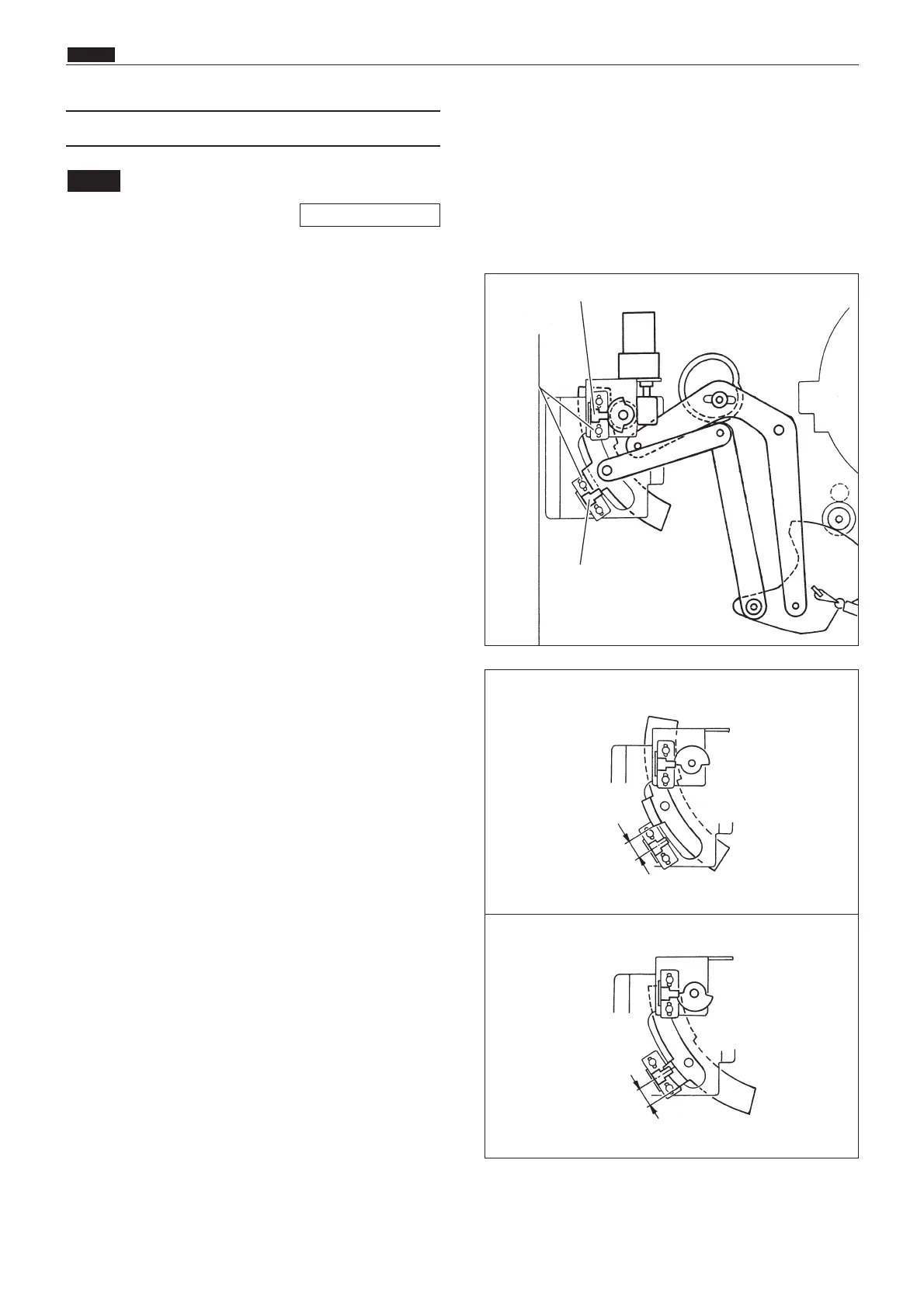

Adjustment of Printing Position Sensors
¡For description of operation.
1. Central sensor
Adjustment procedure
1) To adjust the sensor's position, position the bolts
of the sensor angle's rectangular holes in the
center of those holes, and fix the bolts in that
position.
NOTE
2. Limit sensor
Adjustment procedure
1) Position the bolts of the sensor angle's rectangu-
lar holes in the center of those holes, and fix the
bolts in that position.
2) Loosen the limit sensor shade plate fixing screw.
Then adjust the distance between the centerline
of the central sensor and the edge of the central
sensor shade plate to 20 ±1mm.
\See page 122
Top limit
Bottom limit
20mm
20mm
Central sensor
Limit sensor
Sensor
angle
