Duplo Duprinter DP-43S User Manual

144
n Paper Ejection Section
chap.2
Operation
During printing, the fan blows a constant stream of air at the paper stripper finger, from the rear. This assists
paper stripping and also presses the paper against the ejection belt, which stabilizes ejection.

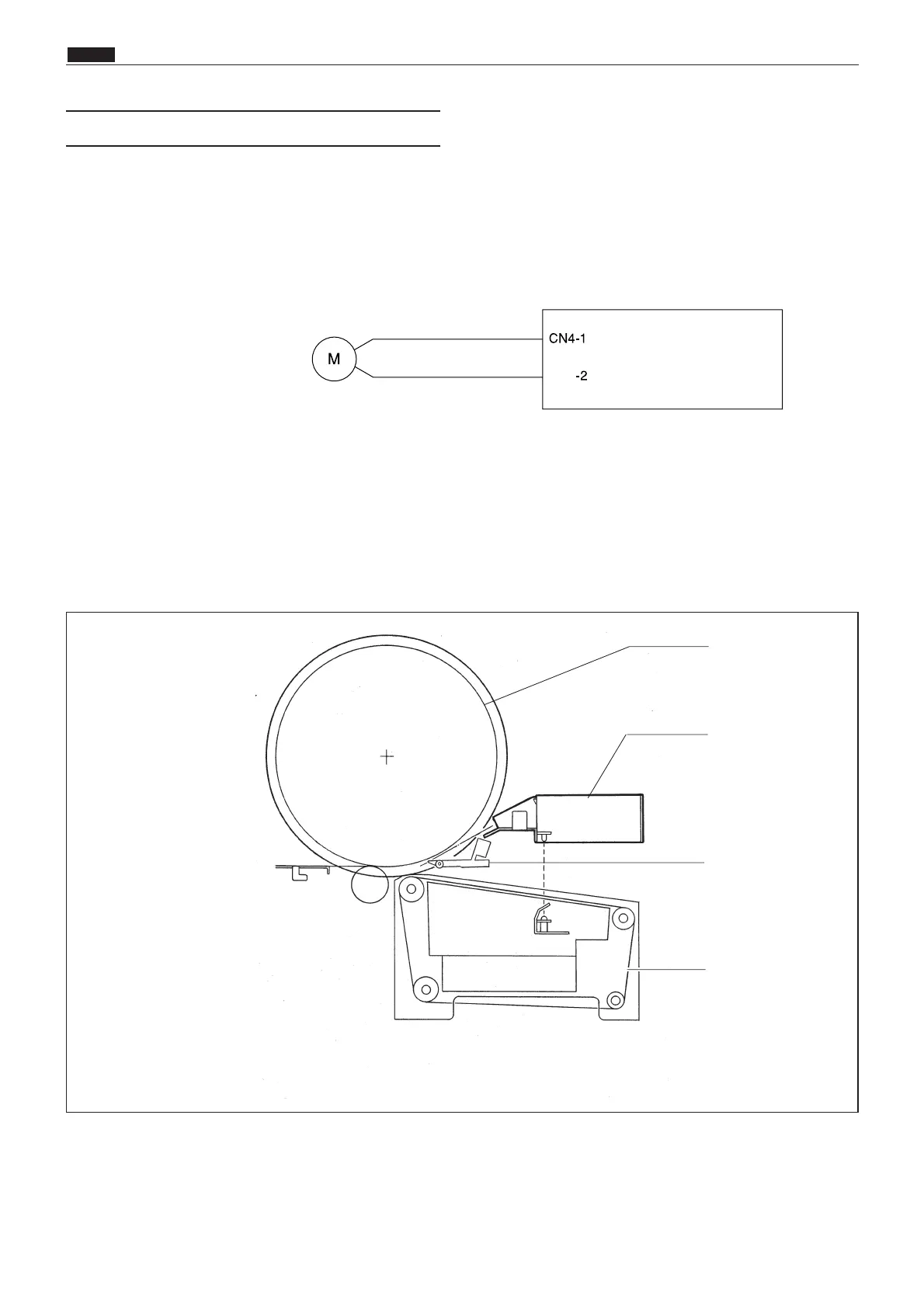

Drum
Top blow fan
Paper stripper finger
Paper ejection belt
Top blow fan motor
Red
Black
Drive PCB unit
Circuit
(2) Top Blow Fan
