n Paper Ejection Section
chap.3
4) Take out the paper stripper finger and reinforc-
ing stripper finger from the pipe.
: Adjust the paper stripper finger
after it is installed.
IMPORTANT
n Paper Ejection Section

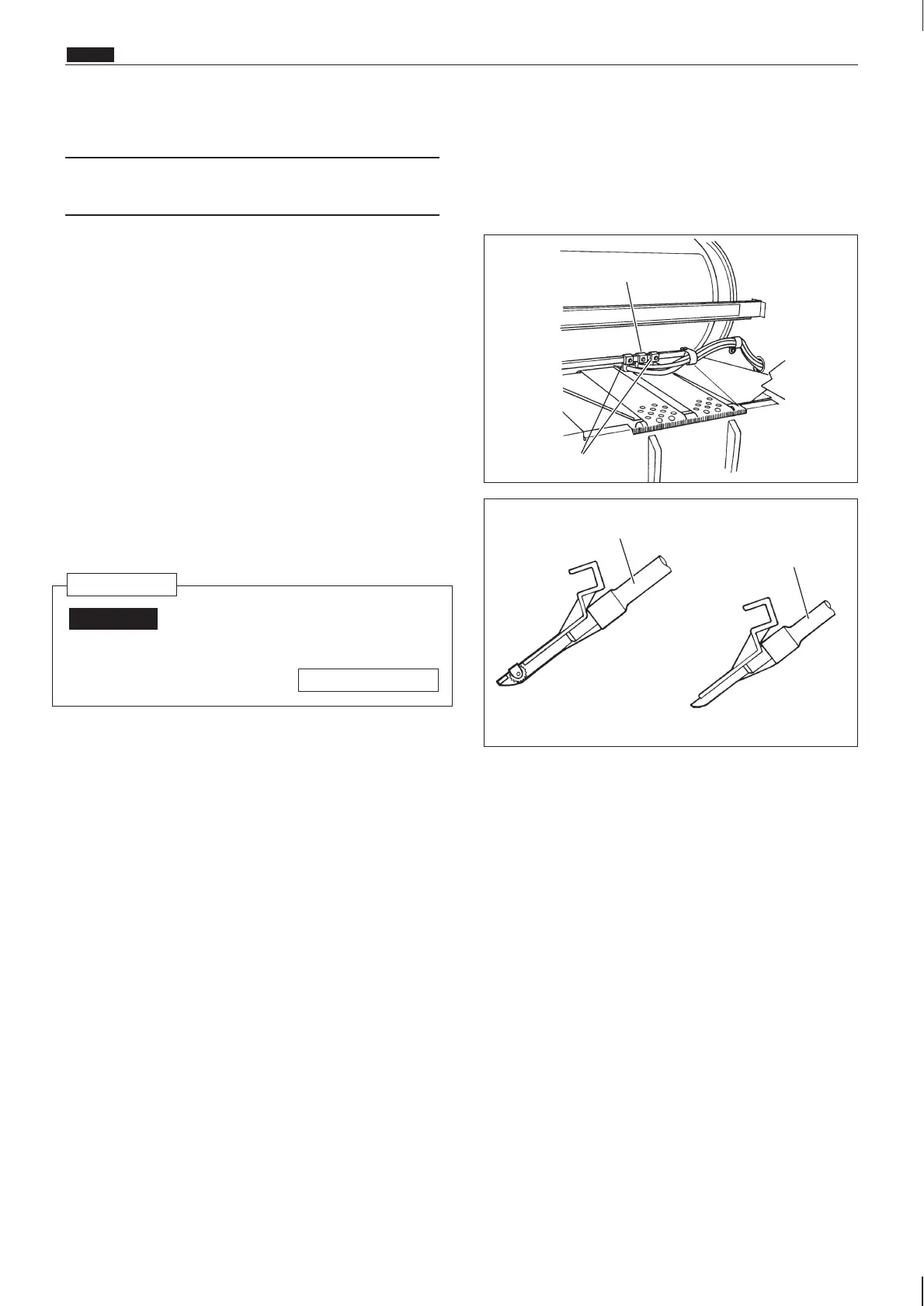

(1) Removing the Paper Stripper Finger /
Reinforcing Stripper Finger
1) Open the master ejection box, and top fan unit.
2) Remove the set screws.
3) Remove the paper stripper finger and reinforcing
stripper finger from the shaft.
Paper stripper finger
Paper stripper finger
Reinforcing stripper finger
Reinforcing stripper finger
Pipe
Pipe
Reinstallation
\See page 233
