181
c Platemaking/Master Feed and Ejection Section
chap.3

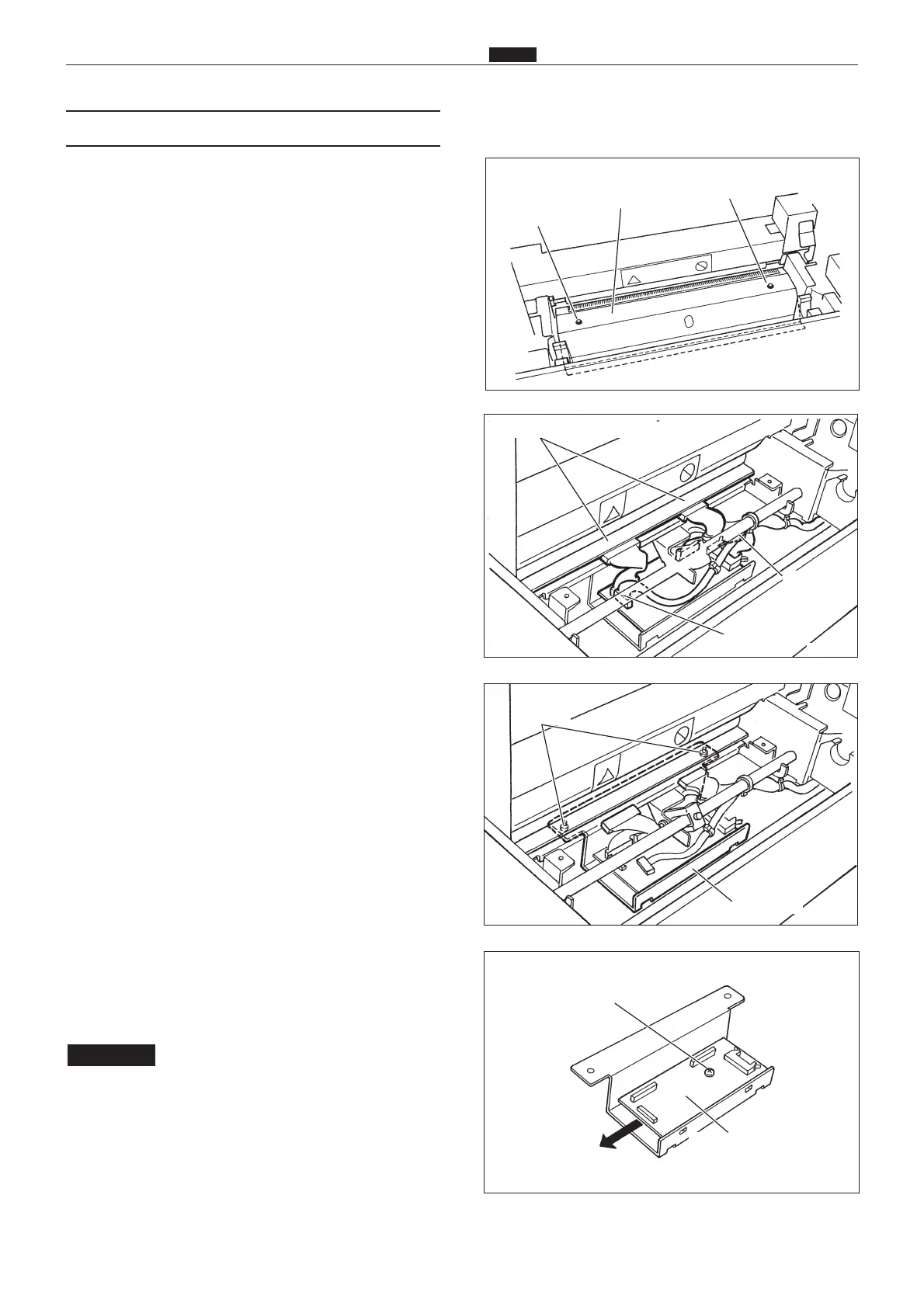

(2) Removing the Thermal Head PCB Unit
1) Lift up the scanner unit and remove the roll mas-
ter.
2) Remove the 2 screws from the cover, and remove
the cover.
3) Remove the 2 thermal head connectors, and the 2
PCB connectors.
Screw
Screw
Cover
IMPORTANT
¡ The washer is a crown washer, so be careful not
to lose it when it is removed.
Thermal head connectors
Connector
Connector
PCB base
Screws
Screw
Thermal head PCB unit
4) Remove the 2 PCB base mounting screws, and
remove the PCB base.
5) Remove the screw from the thermal head PCB
unit, and remove the PCB unit.
43SH0365
43SH0366
43SH0367
To Next Page
