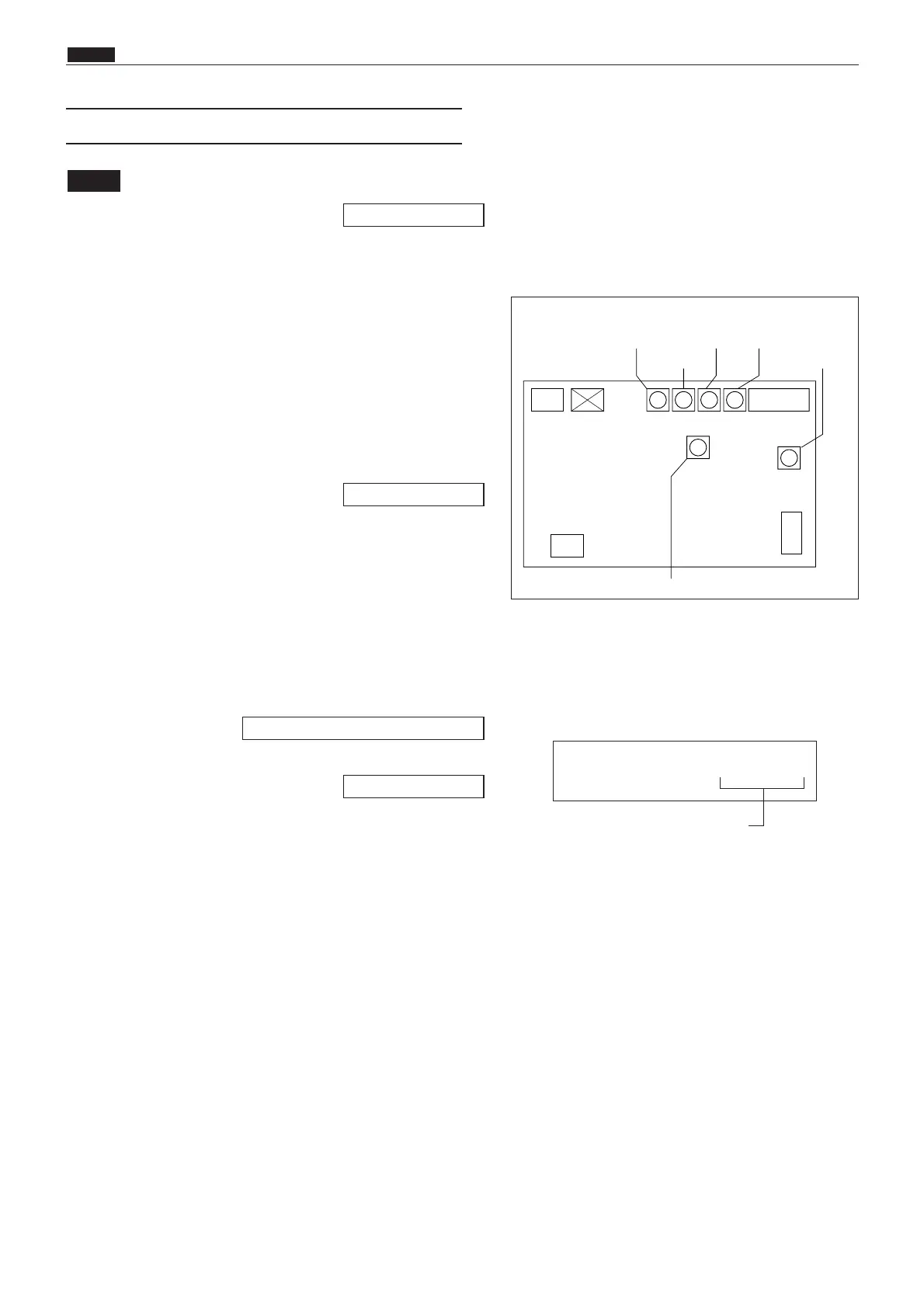

Main motor PCB unit
(6) Print Speed Adjustment
¡For removal.
1. Initial setting
Adjustment procedure
1) Set the VR initially before turning the power on when
the main motor control PCB unit is replaced.
VR-SLOW1: in the center
VR-SLOW2: rotate to the left as far as it goes
VR-JOG: in the center
VR-PRINT: in the center
VR-PRINT4: in the center
VR-PRINT5: in the center
NOTE
2. Speed Adjustment
Adjustment procedure
Access HELP mode H-01.
For basic HELP mode procedures.
The drum rotation speed is displayed with ***rpm on
the panel. Adjust as follows:-
\See page 169
\See page 374
HELP mode H-01 \ see p.296
\See page 291
✽ ✽ ✽
¡HELP mode H-01 display
Drum rotation speed (rpm)
