175
x Scanner Section
chap.3

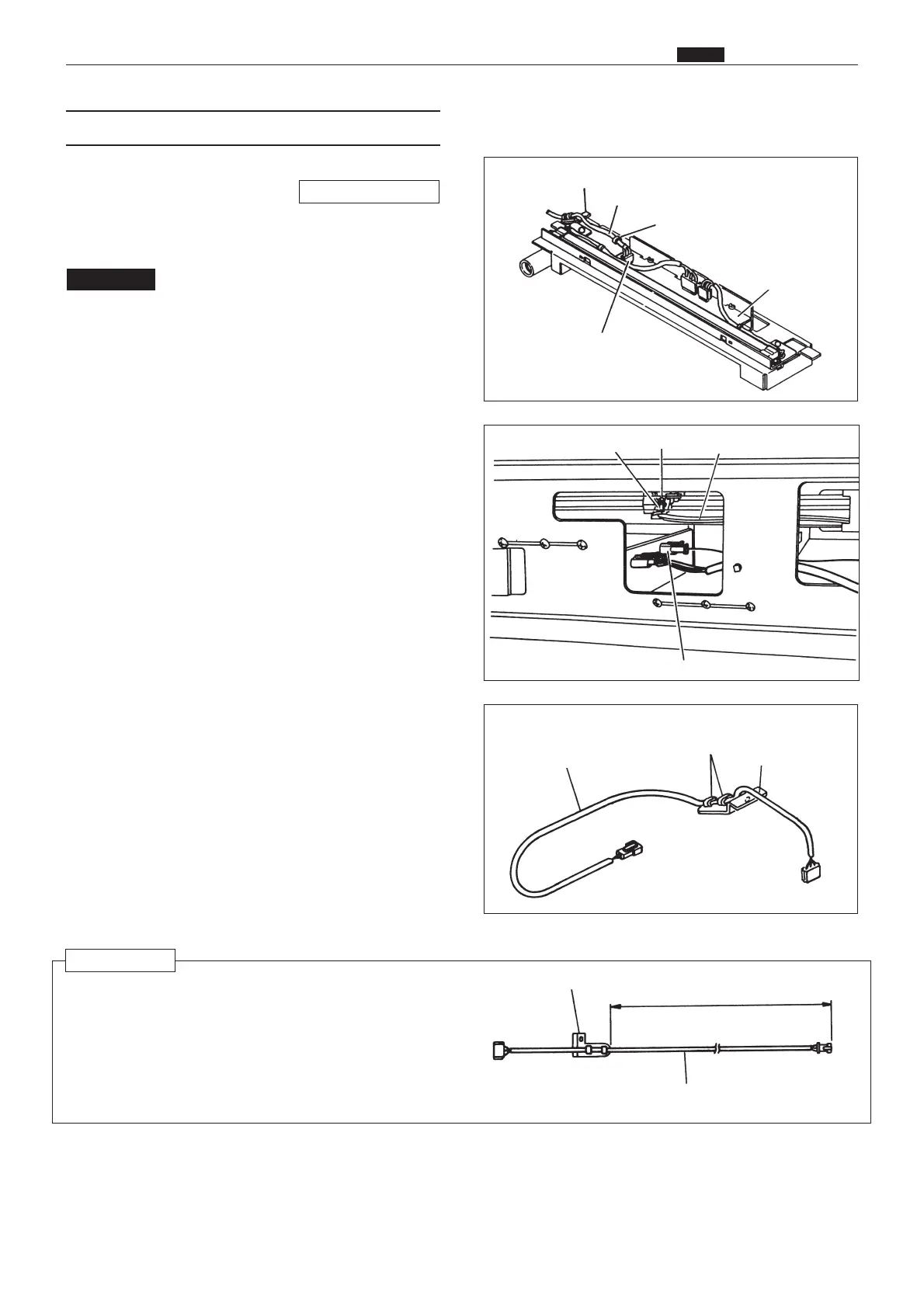

(7) Removing the Lamp Cord
1) Carry out (1) through (3) above.
2) Remove the CN1 to cut the tie wrap.
¡ Be careful not to damage the cord.
IMPORTANT
3) Remove the screw on the supporting plate.
4) Remove the connector to take out the lamp cord.
5) Cut 2 tie wraps to remove the supporting plate.
Attach the supporting plate to the position shown
in the figure. Attach the cord to the main body,
adjust the supporting plate position and tighten the
screw.
Supporting plate
Supporting plate
Supporting plate
Supporting plate
410mm
Lamp cord
Lamp cord
Lamp cord
Lamp cord
Tie wrap
Tie wraps
Inverter PCB unit
CN1
Screw
Connector
Reinstallation
\See page 172
To Next Page
