143
n Paper Ejection Section
chap.2
2. Functions of Parts
Mechanical Structure and Operation

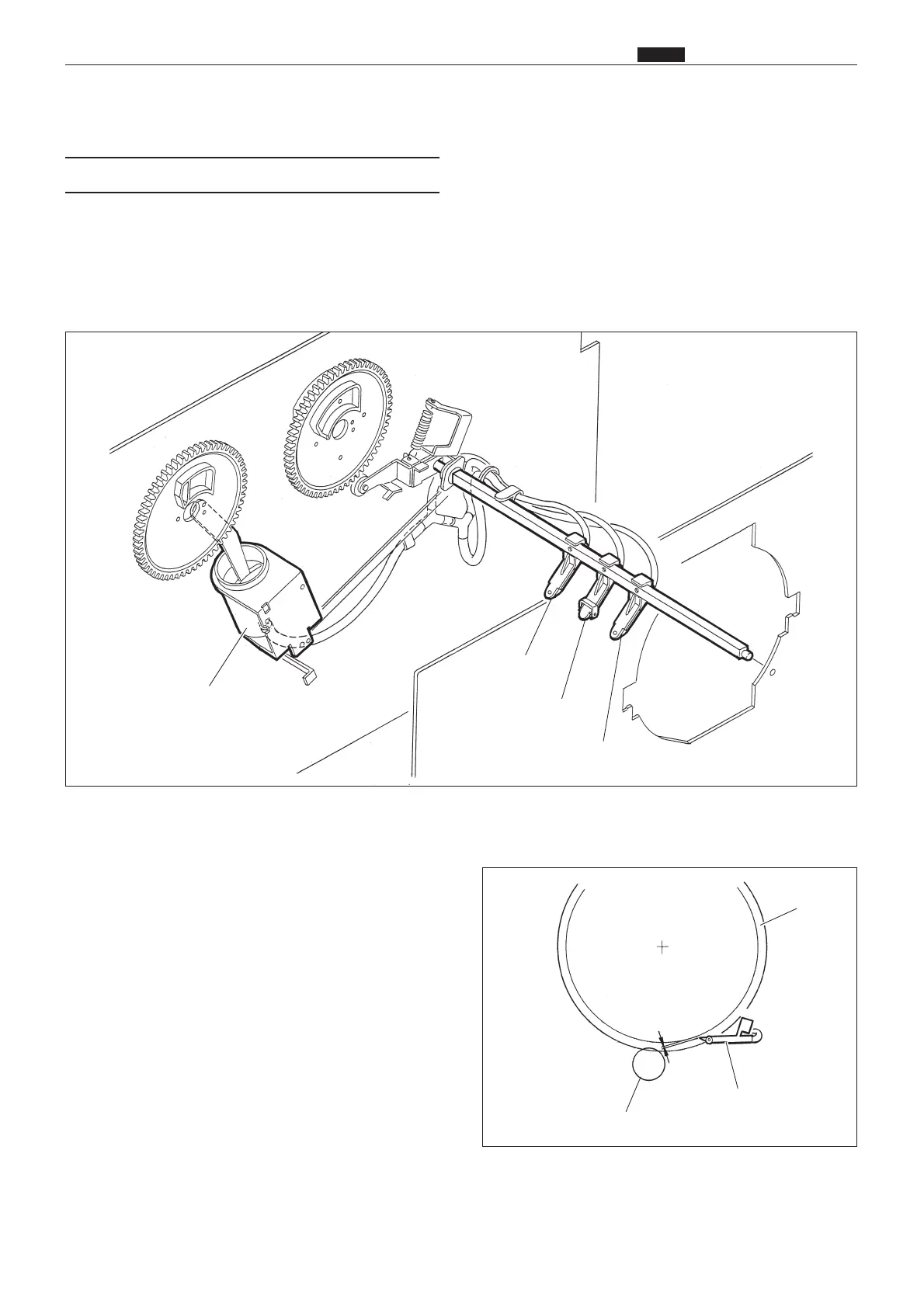

In addition to the paper stripper finger installed in the center, there are two reinforcing paper remover fingers
on both sides. There is an air diffuser on the tip of the finger. Compressed air transmitted from the air pump
is blowed out of this hole to detach the tip end of the paper from the drum.
To remove the paper from the drum firmly, the gap between the tip of finger and the drum surface and
between the tip of finger and the corner of the master clump are adjusted as follows:-
Air pump
Reinforcing paper
stripper finger
Paper stripper finger
Reinforcing paper
stripper finger
Drum
Press roller
Approx0.5mm
Paper stripper finger
(1) Paper Stripper Finger
To Next Page
