190
v Paper Feed Section
chap.3

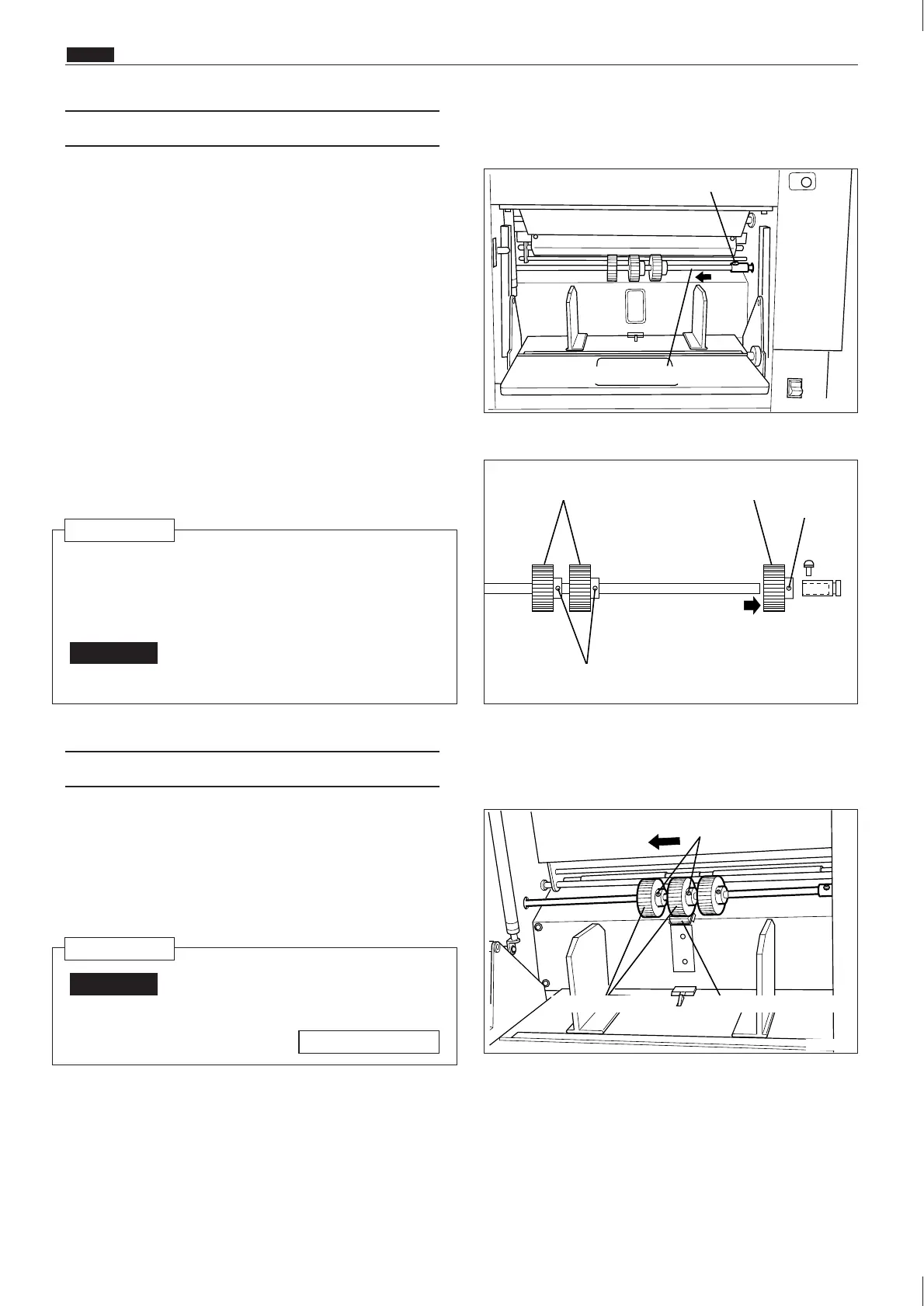

(3) Removal of Paper Feed Roller
1) Remove the screw indicated, and slide the paper
feed shaft in the direction of the arrow.
(4) Removal of Paper Separator Unit
1) Loosen the set screws indicated, and move the 2
paper feed rollers clear of the paper separator
unit.
2) Remove the paper separator unit.
2) Loosen the set screw indicated, and remove the
paper feed roller.
¡ Reinstall the paper feed roller so that the set
screw is positioned at the paper feed roller
shaft's counterbore.
: Do not use an old paper feed roller
together with a new one.
IMPORTANT
Reinstallation
: After reinstalling the paper separa-
tor unit, carry out adjustment of its
clearance.
IMPORTANT
Reinstallation
Screw
Paper feed shaft
Paper feed rollers Paper feed roller
Paper feed rollers
Set screws
Set screws
Set screw
Paper separator unit
63S00357
43SH0345
63S00358
\See page 222
To Next Page
