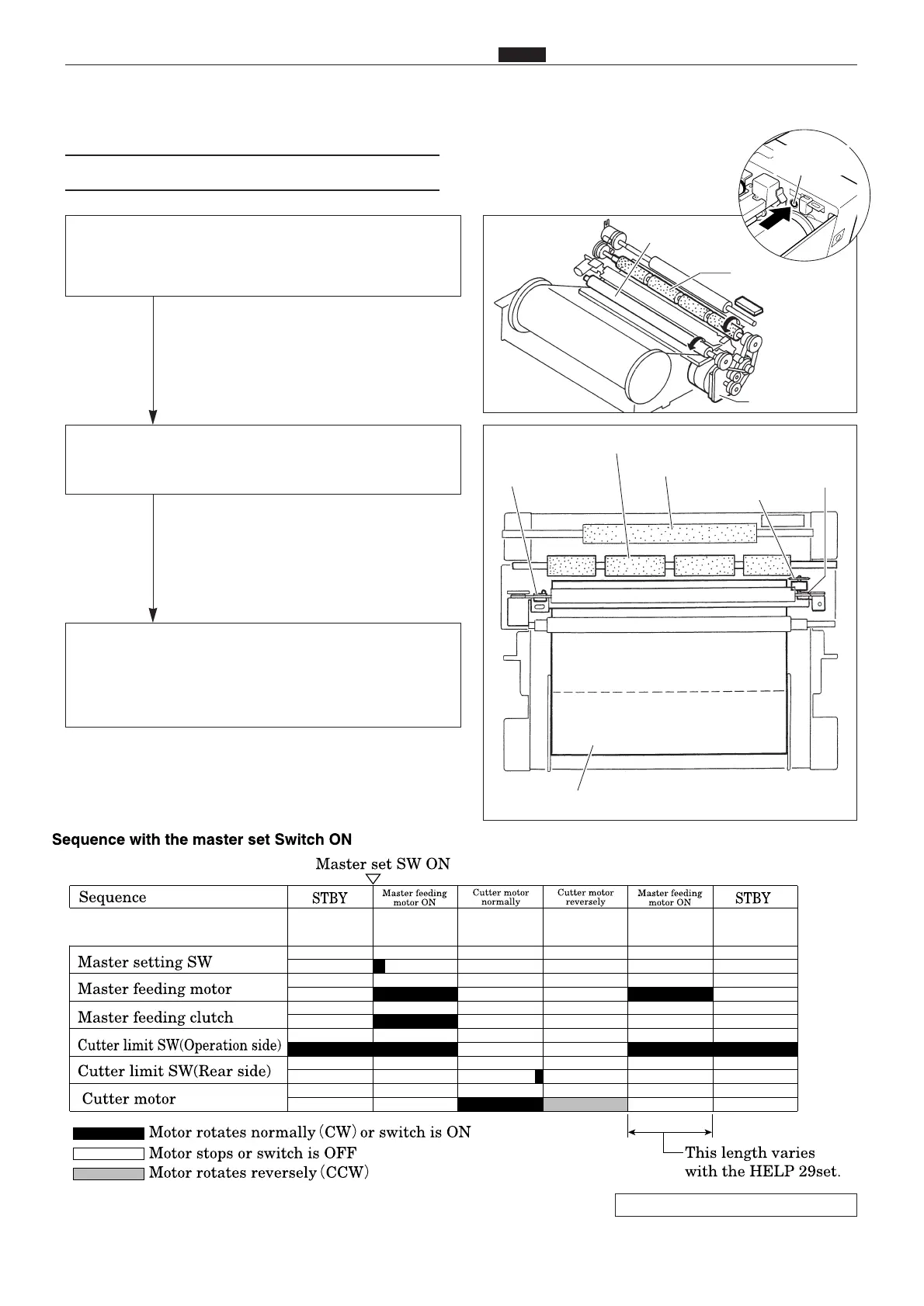

95
x Pratemaking / Master Feed / Ejection Section
chap.2
When the master set switch is pressed, the platen
roller and sponge roller 1 rotate and the master is
fed for about 3 seconds and it stops.
The cutter cuts the master, by executing 1
reciprocating motion.
The master is fed for some time after the cutter
limit SW is ON.
*Fed amount is the same as the amount fed after
the master is cut for platemaking.
Master
*Top view of the plate
feeding section
Cutter Limit SW
(Rearside)
(MS2)
Sponge roller 1
Sponge roller 2
Cutter Limit SW
(Operationside)
(MS1)
Sponge roller 1
Platen roller
Stepping motor
Master
set switch
Cutter
2. Sequence of Operation
(1)
Sequence with the Master Set Switch ON
HELP mode H-29 \ see p.335
To Next Page
