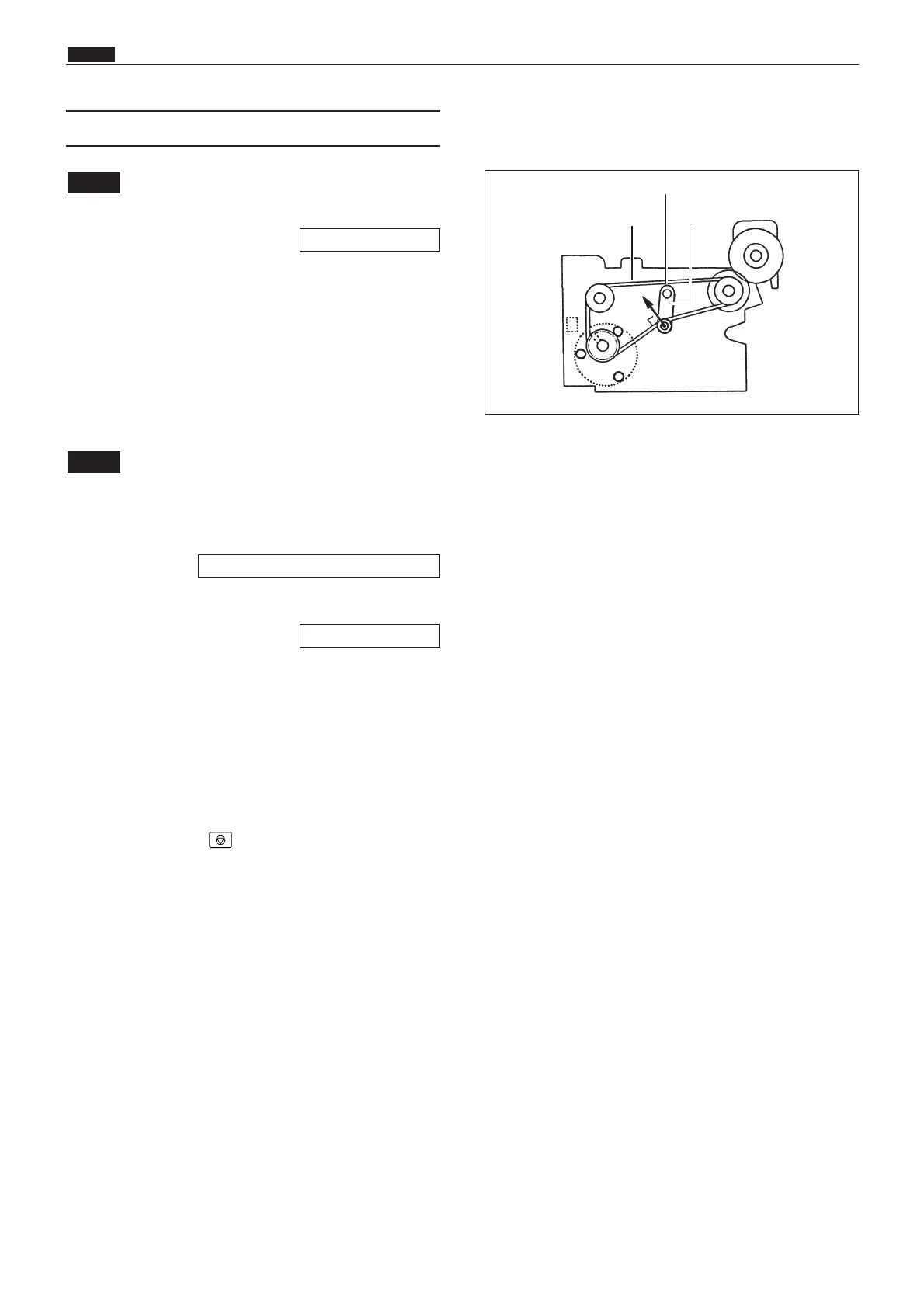

(2) Adjusting the Timing Belt Tension
¡For removal of the master ejection box.
Adjustment procedure
1) Loosen the tensioning screw.
2) Use the tensioning screw to adjust the belt's ten-
sion with a force of 0.75kg applied to the tension
shaft, as shown in the figure at right.
NOTE
¡Operation of roll-up motor
1) Access HELP mode H-18.
For basic HELP mode procedures
2) Press and hold down the [<] ("down") printing
speed adjustment key. For as long as this key is
held down, the roll-up motor will rotate in the
reverse direction (counterclockwise), causing the
rollers inside the master ejection box to rotate.
3) The motor will stop when the key ([<] ("down")
print speed adjustment key) is released.
4) Press the STOP key. The HELP mode menu
will reappear.
\ To exit the HELP mode:
Turn the power switch to OFF.
\ To select another HELP mode:
Enter the desired HELP mode number using the
numeric keys.
NOTE
\See page 185
HELP mode H-18 \ see p.319
\See page 291
0.75kg
Tension
Tensioning screw
Timing belt
