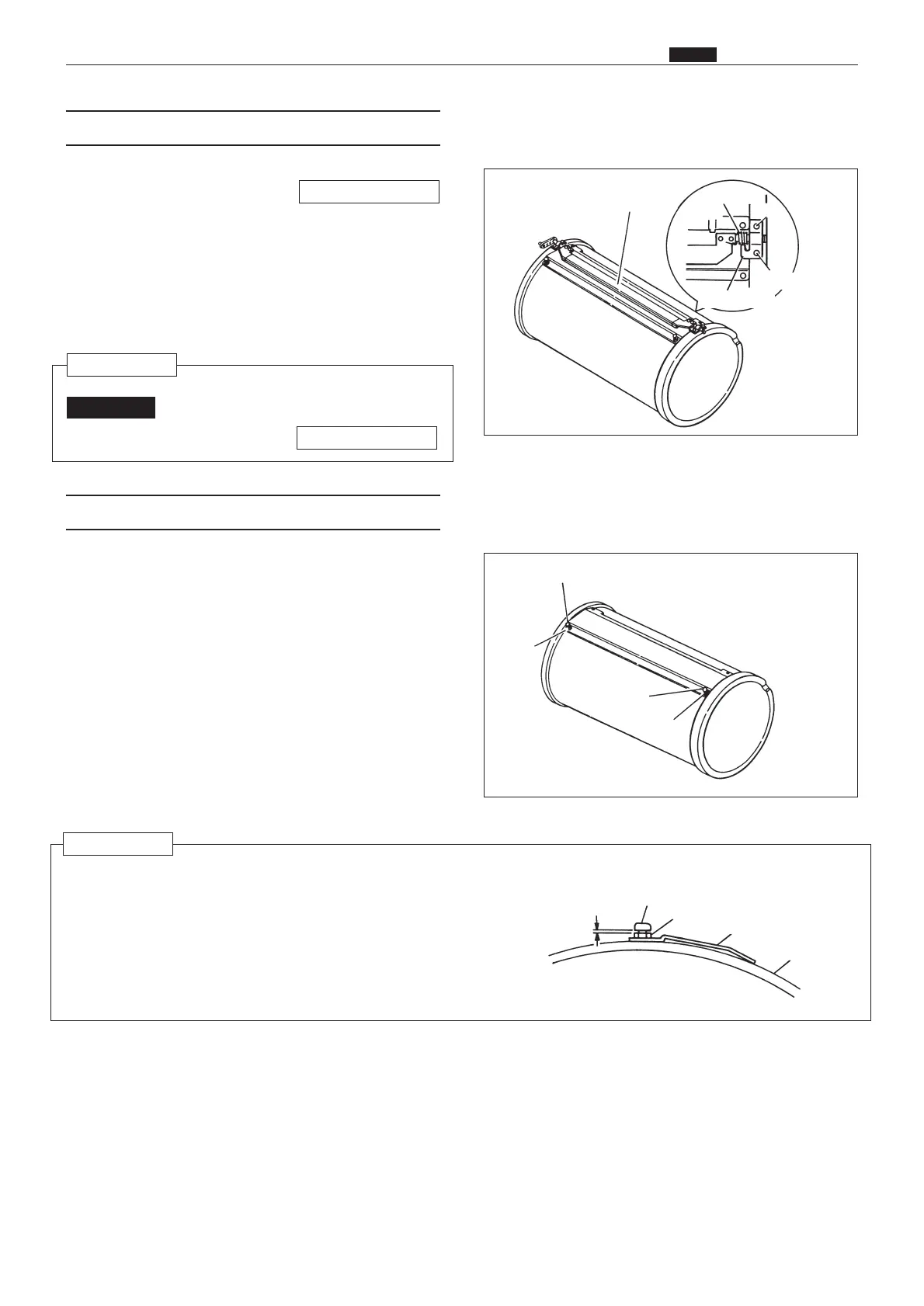

203
m Print Tray Section
chap.3
(2) Removing the Master Clump
(3) Removing the Base Unit
1) Remove the screen.
2) Remove 2 screws on the operation side.
3) Remove the bearing plate and spring.
4) Remove 2 screws on the anti-operation side to
take out the bearing plate.
5) Remove the master clump. The master clump is
attached to the base with the magnet.
: Adjust the master clump after instal-
lation.
IMPORTANT
1) Remove the master clump.
2) Loosen the nut to remove 2 screws.
1) The base unit is attached to the drum as shown
in the figure.
2) Tighten the nut with the screw, adjusting so that
the space between the screw and nut is about
0.5mm.
Master clump
Spring
Screw
Screw
Screw
Screw
Screw
Bearing plate
Nut
Nut
Nut
Base unit
Drum
0.5mm
Reinstallation
\See page 202
Reinstallation
\See page 237
To Next Page
