Duplo Duprinter DP-43S - Platemaking; Master Feed; Ejection Section

215
x Plateaking / Master Feed / Ejection Sectin
chap.4

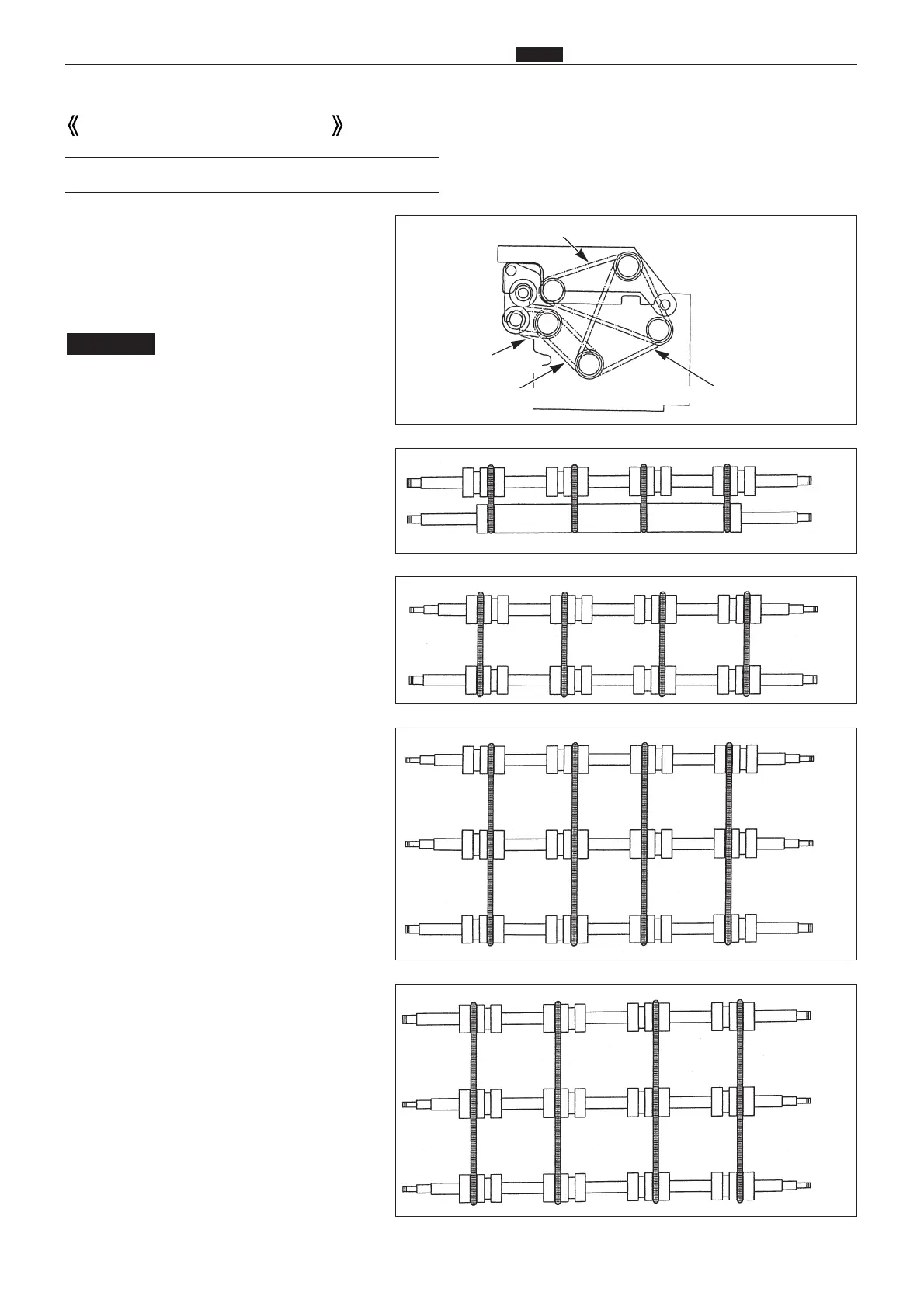

(1) Attaching the Spring
: Set the hook on the spring
and crush it to prevent
removing
IMPORTANT
1) Attaching the spring between A and B
2) Attaching the spring between B and C
3) Attaching the spring between C, D and E
4) Attaching the spring between D, E and F
Master Ejection Section
A : Rubber roller
B : Driving roller
C : Inverted roller
D : Driving roller
E : Inverted roller
F : Inverted roller
qSpring T (4) L90mm
C
A
B
B
E
D
F
C
E
D
A
B
C
D
E
F
rSpring T (B)(4) L220mm
wSpring T (4) L104.9mm
eSpring T (B)(4) L220mm
