Duplo Duprinter DP-43S - Removing the Timing Belt

187
c Platemaking/Master Feed and Ejection Section
chap.3

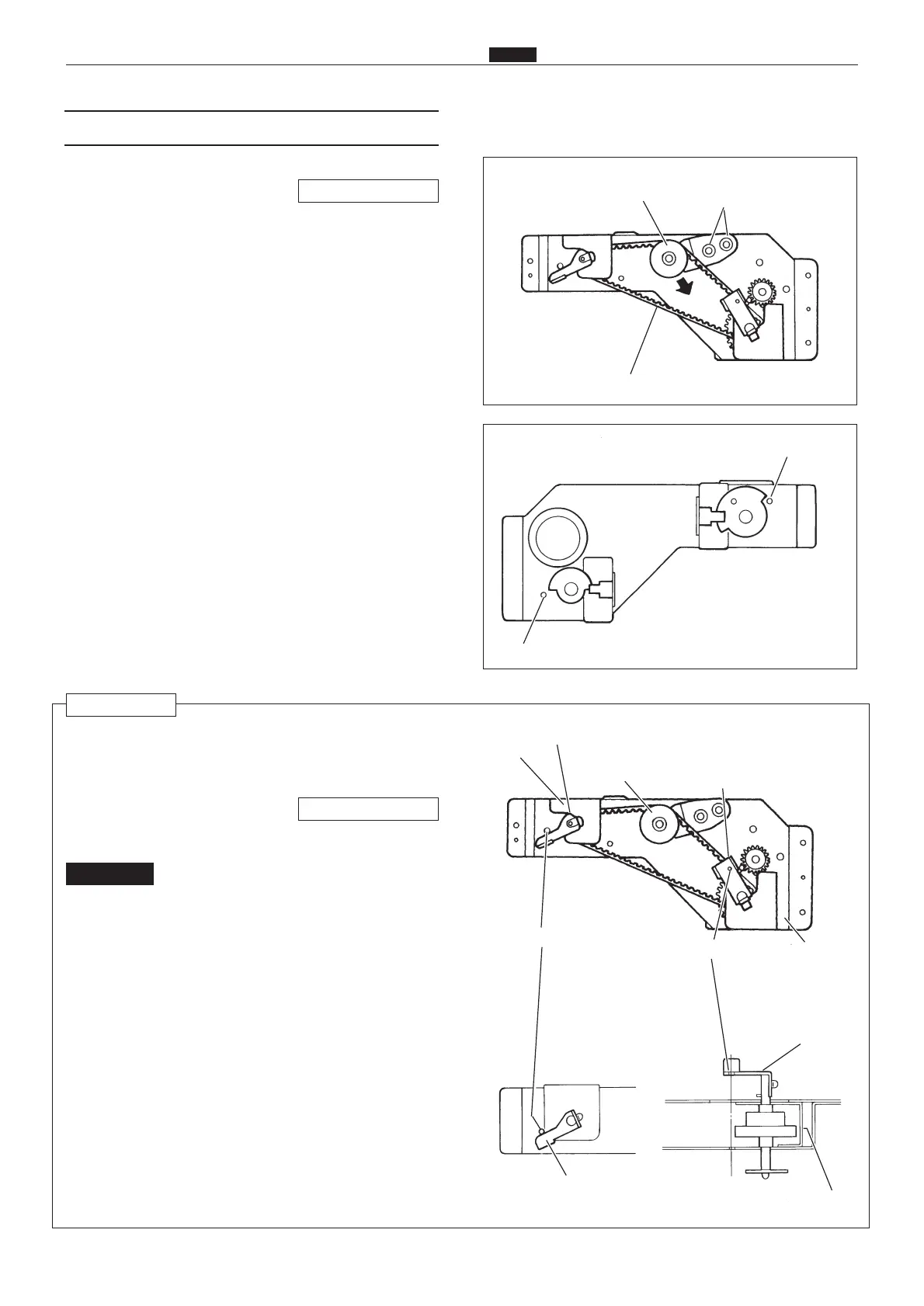

1) Remove the master clump opening / closing unit.
2) Loosen 2 screws to loosen the tension as shown
in the figure.
3) Remove the screw to remove the angle.
4) Remove the timing belt.
• Adjust tension by adjusting the master feed mas-
ter clump opening/closing lever and master ejec-
tion master clump opening/closing lever. Then fit
the timing belt on.
:Adjust the A, B and C modes after
the master clump opening / closing
unit is attached to the printer main
body.
IMPORTANT
Tension
Timing belt
Screws
Screw
Screw
Angle
Tension
Master ejection master
clump opening/closing lever
Master feed master clump opening/closing lever
Angle
Angle
Position hole
Position hole
Master ejection
master clump
opening/closing
lever
Master feed master clump
opening/closing lever
(3) Removing the Timing Belt
\See page 186
\See page 217
Reinstallation
